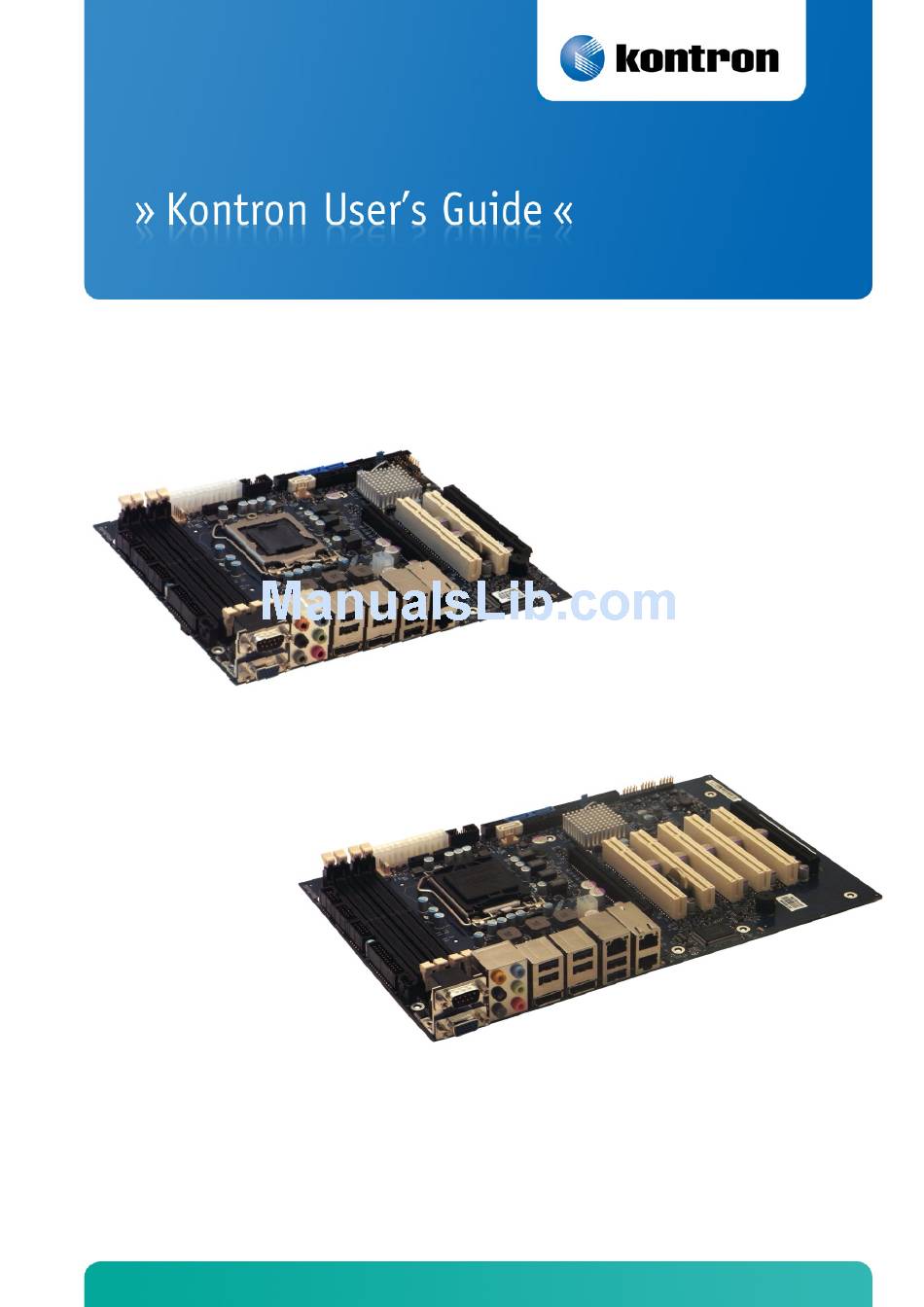

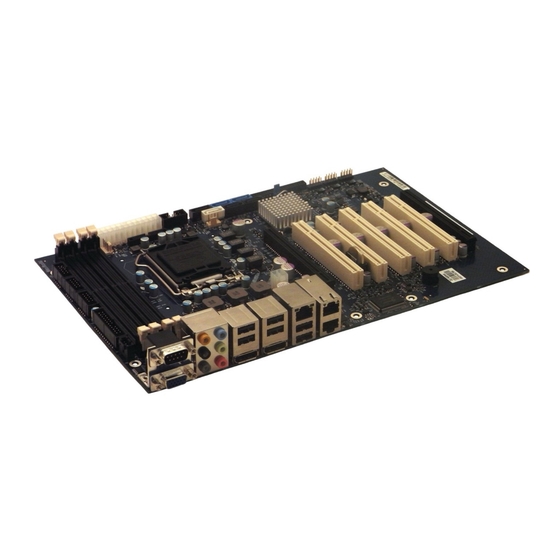

- Page 1 KTQ67/Flex KTQ67/ATXE KTQ67 Users Guide - Preliminary KTD-N0829-C If it’s embedded, it’s Kontron...
-
Page 2: Document Revision History
Copyright 2011, KONTRON Technology A/S, ALL RIGHTS RESERVED. No part of this document may be reproduced or transmitted in any form or by any means, electronically or mechanically, for any purpose, without the express written permission of KONTRON Technology A/S. Trademark Acknowledgement: Brand and product names are trademarks or registered trademarks of their respective owners. - Page 3 KONTRON Technology warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, KONTRON Technology will, at its sole option, repair or replace the product with a similar product.
-
Page 4: Table Of Contents
KTQ67 Graphics Subsystem ....................... 19 2.5.1 Intel® HD Graphics 3000 ......................19 Power Consumption ........................20 Connector Locations ..............23 KTQ67/Flex – frontside ....................... 23 KTQ67/Flex - backside ........................ 24 KTQ67/ATXE ..........................25 KTQ67/ATXE - backside ......................26 Connector Definitions ..............27 IO-Area Connectors ............... -
Page 5: Ktd-N0829-C
KTD-N0829-C Page 5 Internal Connectors ................ 35 Power Connector (ATX/BTXPWR) ....................35 Fan Connectors (FAN_CPU) (J28) and (FAN_SYS) (J29) ............36 PS/2 Keyboard and Mouse connector (KBDMSE) (J15) ............37 Display connectors (Internal)....................... 38 6.4.1 LVDS Flat Panel Connector (LVDS) (J39) (optionally) .............. 38 SATA (Serial ATA) Disk interface (J22 –... -
Page 6: Ktd-N0829-C
KTD-N0829-C Page 6 System Resources ................. 62 Memory Map ..........................62 PCI Devices ..........................63 Interrupt Usage ..........................64 IO Map ............................65 10 BIOS ....................67 11 AMI BIOS Beep Codes..............68 12 OS Setup ..................69 KTQ67 Users Guide... -
Page 7: Introduction
Page 7 Introduction Introduction This manual describes the KTQ67/Flex and KTQ67/ATXE boards made by KONTRON Technology A/S. The boards will also be denoted KTQ67 family if no differentiation is required. The KTQ67 boards, all based on the Q67 chipset, support 2 generation Intel®... -
Page 8: Installation Procedure
1 Installation procedure 1.1 Installing the board To get the board running, follow these steps. If the board shipped from KONTRON has already components like DRAM, CPU and cooler mounted, then relevant steps below, can be skipped. 1. Turn off the PSU (Power Supply Unit) Warning: Turn off PSU (Power Supply Unit) completely (no mains power connected to the PSU) or leave the Power Connectors unconnected while configuring the board. -
Page 9: Requirement According To Iec60950
KTD-N0829-C Page 9 Installation procedure 1.2 Requirement according to IEC60950 Users of KTQ67 family boards should take care when designing chassis interface connectors in order to fulfil the IEC60950 standard: When an interface/connector has a VCC (or other power) pin, which is directly connected to a power plane like the VCC plane: To protect the external power lines of the peripheral devices, the customer has to take care about: •... -
Page 10: System Specification
Page 10 System Specification 2 System Specification 2.1 Component main data The table below summarizes the features of the KTQ67/Flex and KTQ67/ATXE embedded motherboards. Form factor KTQ67/Flex: Flex-ATX (190,5 mm by 228,6 mm) KTQ67/ATXE: ATX (190,5 mm by 304,8 mm) Processor Support the following 2nd Generation Intel®... - Page 11 Wake On LAN (WOL) supported • Expansion PCI Bus routed to PCI slot(s) (PCI Local Bus Specification Revision 3.0, 33MHz) Capabilities KTQ67/Flex: 2 KTQ67/ATXE: 5 • PCI-Express slot(s) (PCIe 2.0), for all KTQ67 family members: 1 slot PCIe x16 1 slot PCIe x4 (in a x16 slot) (EFT samples support only PCIe x1) 1 slot miniPCI-Express •...
- Page 12 Dispose of used batteries according to the manufacturer’s instructions. • BIOS Kontron Technology / AMI BIOS (EFI core version) • Support for ACPI 3.0 ( Advanced Configuration and Power Interface), Plug & Play Suspend (S1 mode)
- Page 13 Product Category CCN: NWGQ2, NWGQ8 File number: E194252 Theoretical MTBF: 211.994 / 100.475 hours @ 40ºC / 60ºC for the KTQ67/Flex 200.897 / 94.529 hours @ 40ºC / 60ºC for the KTQ67/ATXE Restriction of Hazardous Substances (RoHS): All boards in the KTQ67 family are RoHS compliant.
-
Page 14: System Overview
KTD-N0829-C Page 14 System Specification 2.2 System overview The block diagram below shows the architecture and main components of the KTQ67. The key ® component on the board is the Intel QM67 (Cougar Point) Mobile Express Chipset. Some components (PCI/PCIe/miniPCIe slots) are optional depending on board type. More detailed block diagram on next page. - Page 15 KTD-N0829-C Page 15 System Specification KTQ67 Users Guide...
-
Page 16: Processor Support Table
CPU’s are indicated by text. Some processors in the list are distributed from Kontron, those CPU’s are marked by an * (asterisk). However please notice that this marking is only guide line and maybe not fully updated. Clock... - Page 17 Different coolers are available on the market and some is not generating any airflow or is blocking the airflow around these components, causing reduced lifetime. It is recommended to use a cooler like the Kontron PN 1046-6305 “KTQ67 Cooler”.
-
Page 18: System Memory Support
KTD-N0829-C Page 18 System Specification 2.4 System Memory support The KTQ67/FLEX and /ATXE have four DDR3 UDIMM sockets. The sockets support the following memory features: • 4x DDR3 1.5V UDIMM 240-pin • Dual-channel with 2 UDIMM per channel • Single/dual rank unbuffered 1066/1333MT/s (PC3-8500/PC3-10600) From 256MB and up to 4x 8GB. -
Page 19: Ktq67 Graphics Subsystem
KTD-N0829-C Page 19 System Specification 2.5 KTQ67 Graphics Subsystem The KTQ67 equipped with Intel ® i3, i5 or i7 processor, supports Intel ® HD Graphics 2000/3000. The KTQ67 equipped Intel ® Pentium Desktop ® Processor, supports Intel ® HD Graphics. All KTQ67 versions support analogue VGA and digital display ports (2x DP) via the Intel ®... -
Page 20: Power Consumption
KTD-N0829-C Page 20 System Specification 2.6 Power Consumption In order to ensure safe operation of the board, the ATX12V power supply must monitor the supply voltage and shut down if the supplies are out of range – refer to the hardware manual for the actual power supply specification. - Page 21 KTD-N0829-C Page 21 System Specification Low Power Setup results: DOS Idle, Mean, No external load Supply Current draw Power consumption +12V 0.258A 3.096W +12V P4 1.363A 16.366W 1.417A 7.083W +3V3 0.490A 1.618W -12V 0.035A 0.416W 5VSB 0.006A 0.030W Total 28.6W Windows 7, mean 3DMARK2005 (first scene) &...
- Page 22 KTD-N0829-C Page 22 System Specification High Power Setup results: DOS Idle, Mean, No external load Supply Current draw Power consumption +12V 1.978A 23.737W +12V P4 1.827A 21.924W 2.061A 10.306W +3V3 1.032A 3.404W -12V 0.032A 0.384W 5VSB 0.006A 0.030W Total 59.8W Windows 7, mean 3DMARK2005 (first scene) &...
-
Page 23: Connector Locations
KTD-N0829-C Page 23 Connector Location 3 Connector Locations 3.1 KTQ67/Flex – frontside Sata5 - Sata0 - Sata1 Sata2 - Sata3 - Sata4 DDR3 A0 J12 (not used) (see note) ATX/ BTXPWR Feature DDR3 A1 XDP-PCH LVDS (backside) SPI recover ClrCMOS... -
Page 24: Ktq67/Flex - Backside
KTD-N0829-C Page 24 Connector Location 3.2 KTQ67/Flex - backside LPT (*) XDP-CPU (*) XDP-PCH (*) (*) The LPT connector and the XDP connectors are not mounted in volume production. KTQ67 Users Guide... -
Page 25: Ktq67/Atxe
(not used) DDR3 A1 DDR3 B0 DDR3 B1 SPI recover COM2 COM3 PCI4 COM4 PCI0 PCI1 Frontpanel PCI2 PCI3 CDROM PCIex4 PCIex16 KbdMse ATX+12V mSATA mPCIe Audioheader For location of the IO Area connectors, see “KTQ67/Flex- frontside”. KTQ67 Users Guide... -
Page 26: Ktq67/Atxe - Backside
KTD-N0829-C Page 26 Connector Location 3.4 KTQ67/ATXE - backside LPT (*) XDP-CPU (*) XDP-PCH (*) (*) The LPT connector and the XDP connectors are not mounted in volume production. KTQ67 Users Guide... -
Page 27: Connector Definitions
KTD-N0829-C Page 27 Connector Definitions 4 Connector Definitions The following sections provide pin definitions and detailed description of all on-board connectors. The connector definitions follow the following notation: Column Description name Shows the pin-numbers in the connector. The graphical layout of the connector definition tables is made similar to the physical connectors. -
Page 28: Io-Area Connectors
KTD-N0829-C Page 28 IO-Area Connectors 5 IO-Area Connectors 5.1 Display connectors (IO Area) The KTQ67 family provides one on-board Analogue VGA port, two on-board DP’s (DisplayPort) and optionally one on-board LVDS panel interface. Two graphic pipes are supported; meaning that up to two independent displays can be implemented using any two of the above mentioned graphic ports. -
Page 29: Dp Connectors (Dp0/Dp1)
KTD-N0829-C Page 29 IO-Area Connectors 5.1.2 DP Connectors (DP0/DP1) The DP (DisplayPort) connectors are based on standard DP type Foxconn 3VD51203-H7JJ-7H or similar. Signal Description Type Note Lane 0 (p) LVDS Lane 0 (n) LVDS Lane 1 (p) LVDS Lane 1 (n) LVDS Lane 2 (p) LVDS... -
Page 30: Ethernet Connectors (Io Area)
KTD-N0829-C Page 30 IO-Area Connectors 5.2 Ethernet Connectors (IO Area) The KTQ67 boards supports three channels of 10/100/1000Mb Ethernet, one (ETH1) is based on Intel® Lewisville 82579LM Gigabit PHY with AMT 7.0 support and the two other controllers (ETHER2 & ETHER3) are based on Intel®... -
Page 31: Usb Connectors (Io Area)
KTD-N0829-C Page 31 IO-Area Connectors 5.3 USB Connectors (IO Area) The KTQ67 board contains two EHCI (Enhanced Host Controller Interface) host controllers that support up to fourteen USB 2.0 ports allowing data transfers up to 480Mb/s. Legacy Keyboard/Mouse and wakeup from sleep states are supported. Over-current detection on all fourteen USB ports is supported. The following USB connectors are available in the IO Area. -
Page 32: Usb Connector 2/3 (Usb2/3)
KTD-N0829-C Page 32 IO-Area Connectors 5.3.2 USB Connector 2/3 (USB2/3) USB Ports 2 and 3 are mounted together with DP1 port. Note Type Signal Signal Type Note 5V/SB5V USB3- USB3+ 5V/SB5V USB2- USB2+ Note 1: In order to meet the requirements of USB standard, the 5V input supply must be at least 5.00V. Signal Description USB2+ USB2-... -
Page 33: Audio Connector (Io Area)
KTD-N0829-C Page 33 IO-Area Connectors 5.4 Audio Connector (IO Area) The on-board Audio circuit implements 7.1+2 Channel High Definition Audio with UAA (Universal Audio Architecture), featuring five 24-bit stereo DACs and three 20-bit stereo ADCs. The Following Audio connector is available in IO Area. Audio Speakers, Line-in and Microphone are available in the stacked audiojack connector Note Type Signal... -
Page 34: Com1 Connector (Io Area)
KTD-N0829-C Page 34 IO-Area Connectors 5.5 COM1 Connector (IO Area) Four RS232 serial ports are available on the KTQ67, COM1 is available in the IO Area while the other COM ports are available on internal pin header connectors. The typical definition of the signals in the COM ports is as follows: Signal Description Transmitted Data, sends data to the communications link. -
Page 35: Internal Connectors
KTD-N0829-C Page 35 Internal Connectors 6 Internal Connectors 6.1 Power Connector (ATX/BTXPWR) The KTQ67 boards are designed to be supplied from a standard ATX (or BTX) power supply. Use of BTX supply is not required for operation, but may be required to drive high-power PCIe cards. ATX/ BTX Power Connector (J45): Note Type... -
Page 36: Fan Connectors (Fan_Cpu) (J28) And (Fan_Sys) (J29)
KTD-N0829-C Page 36 Internal Connectors 6.2 Fan Connectors (FAN_CPU) (J28) and (FAN_SYS) (J29) The FAN_CPU is used for the connection of the FAN for the CPU. The FAN_SYS can be used to power, control and monitor a fan for chassis ventilation etc. The 4pin header is recommended to be used for driving 4-wire type Fan in order to implement FAN speed control. -
Page 37: Ps/2 Keyboard And Mouse Connector (Kbdmse) (J15)
KTD-N0829-C Page 37 Internal Connectors 6.3 PS/2 Keyboard and Mouse connector (KBDMSE) (J15) Attachment of a PS/2 keyboard/mouse can be done through the pinrow connector KBDMSE (J15). Both interfaces utilize open-drain signalling with on-board pull-up. The PS/2 mouse and keyboard is supplied from SB5V when in standby mode in order to enable keyboard or mouse activity to bring the system out from power saving states. -
Page 38: Display Connectors (Internal)
KTD-N0829-C Page 38 Internal Connectors 6.4 Display connectors (Internal) The KTQ67 family provides optionally internal on-board LVDS panel interface. For IO Area Display Connectors (VGA and two DP’s), see earlier section. Internal Connectors Two graphic pipes are supported; meaning that up to two independent displays can be implemented using any two display connectors in IO Area - and Internal (LVDS) connector (optionally). -
Page 39: Sata (Serial Ata) Disk Interface (J22 - J27)
KTD-N0829-C Page 39 Internal Connectors 6.5 SATA (Serial ATA) Disk interface (J22 – J27) The KTQ67 boards have an integrated SATA Host controller (PCH in the QM67 chipset) that supports independent DMA operation on six ports. One device can be installed on each port for a maximum of six SATA devices. -
Page 40: Usb Connectors (Usb)
KTD-N0829-C Page 40 Internal Connectors 6.6 USB Connectors (USB) The KTQ67 board contains two EHCI (Enhanced Host Controller Interface) host controllers that support up to fourteen USB 2.0 ports allowing data transfers up to 480Mb/s. Legacy Keyboard/Mouse and wakeup from sleep states are supported. Over-current detection on all fourteen USB ports is supported. The following USB ports are available on Internal Pinrows: USB Port 6 and 7 are supplied on the USB6/7 internal pinrow FRONTPNL connector. -
Page 41: Usb Connector 10/11 (Usb10/11) (J17)
KTD-N0829-C Page 41 Internal Connectors 6.6.3 USB Connector 10/11 (USB10/11) (J17) USB Ports 10 and 11 are supplied on the internal USB10/11 pinrow connector J17. Note Type Signal Signal Type Note PWR 5V/SB5V 5V/SB5V PWR USB10- USB11- USB10+ USB11+ 9 10 Signal Description USB10+ USB10-... -
Page 42: Serial Com2 - Com4 Ports (J19, J20, J21)
KTD-N0829-C Page 42 Internal Connectors 6.7 Serial COM2 – COM4 Ports (J19, J20, J21) Three RS232 serial ports are available on the KTQ67 via pin-row connector. (COM 1 is in the IO area and is based on standard DB9 connector, see other section for more info). The typical definition of the signals in the COM ports is as follows: Signal Description... -
Page 43: Audio Connectors
KTD-N0829-C Page 43 Internal Connectors 6.8 Audio Connectors The on-board Audio circuit implements 7.1+2 Channel High Definition Audio with UAA (Universal Audio Architecture), featuring five 24-bit stereo DACs and three 20-bit stereo ADCs. The following Audio connectors are available as internal connectors. 6.8.1 CDROM Audio Input (CDROM) (J44) CD-ROM audio input may be connected to this connector or it can be used as secondary line-in signal. -
Page 44: Audio Header Connector (Audio_Head) (J47)
KTD-N0829-C Page 44 Internal Connectors 6.8.1 Audio Header Connector (AUDIO_HEAD) (J47) Note Type Signal Signal Type Note LFE-OUT CEN-OUT AAGND AAGND FRONT-OUT-L FRONT-OUT-R AAGND AAGND REAR-OUT-L 9 10 REAR-OUT-R SIDE-OUT-L 11 12 SIDE-OUT-R AAGND 13 14 AAGND MIC1-L 15 16 MIC1-R AAGND 17 18... -
Page 45: Front Panel Connector (Frontpnl) (J36)
KTD-N0829-C Page 45 Internal Connectors 6.9 Front Panel Connector (FRONTPNL) (J36) Pull Ioh/ Ioh/ Pull Note Type Signal Signal Type Note PWR USB6/7_5V USB6/7_5V USB6- USB7- USB6+ USB7+ 9 10 LINE2-L 11 12 25/25mA SATA_LED# 13 14 SUS_LED 15 16 PWRBTN_IN# RSTIN# 17 18... -
Page 46: Feature Connector (Feature) (J30)
KTD-N0829-C Page 46 Internal Connectors 6.10 Feature Connector (FEATURE) (J30) Pull Pull Note Ioh/Iol Type Signal Signal Type Ioh/Iol Note CASE_OPEN# SMBC /4mA 10K/ 25/25mA SMBD /4mA 10K/ 25/25mA PWR_OK EXT_BAT PWR FAN3OUT FAN3IN SB3V3 9 10 SB5V GPIO0 11 12 GPIO1 GPIO2 13 14... - Page 47 KTD-N0829-C Page 47 Internal Connectors GPIO in more details. The GPIO’s are controlled via the ITE IT8516F Embedded Controller. Each GPIO has 100pF to ground, clamping Diode to 3V3 and has multiplexed functionality. Some pins can be DAC (Digital to Analogue Converter output), PWM (Pulse Width Modulated signal output), ADC (Analogue to Digital Converter input), TMRI (Timer Counter Input), WUI (Wake Up Input), RI (Ring Indicator Input) or some special function.
-
Page 48: Clear Cmos Jumper (J11)
KTD-N0829-C Page 48 Internal Connectors 6.11 Clear CMOS Jumper (J11) The Clear-CMOS Jumper (J11) is used to clear the CMOS content. J11 pin 3 ClrCMOS Jumper (in Clear CMOS position) pin1-2 pin2-3 Description Clear CMOS data Default positions Secure CMOS function is disabled and Default values are used Warning: Don’t leave the jumper in position 1-2, otherwise the battery will fully depleted within a few weeks if power to the board is disconnected. -
Page 49: Spi Recover Jumper (J41)
KTD-N0829-C Page 49 Internal Connectors 6.13 SPI Recover Jumper (J41) The SPI Recover Jumper is used to select BIOS Recovery SPI Flash instead of the BIOS Default SPI Flash. Normally Jumper is not installed and board boots on the BIOS Default SPI Flash. Only in case the Default BIOS gets corrupted and board do not boot: Then turn off power Install Jumper (J41) -
Page 50: Spi Connector (Spi) (J40)
KTD-N0829-C Page 50 Internal Connectors 6.14 SPI Connector (SPI) (J40) The SPI Connector is normally not used. If however a SPI BIOS is connected via the SPI Connector then the board will try to boot on it. Note Pull U/D Ioh/Iol Type Signal Signal Type Ioh/Iol Pull U/D Note SB3V3... -
Page 51: Xdp-Cpu (Debug Port For Cpu) (J14)
KTD-N0829-C Page 51 Internal Connectors 6.15 XDP-CPU (Debug Port for CPU) (J14) The XDP-CPU (Intel Debug Port for CPU) connector is not mounted and not supported. XDP connector layout (pads) is located on the backside of PCB and is prepared for the Molex 52435-2671 (or 52435- 2672). -
Page 52: Xdp-Pch (Debug Port For Chipset) (J13)
KTD-N0829-C Page 52 Internal Connectors 6.16 XDP-PCH (Debug Port for Chipset) (J13) The XDP-PCH (Intel Debug Port for Chipset) connector is not mounted and not supported. XDP-PCH connector layout (pads) is prepared for the Molex 52435-2671 (or 52435-2672). Pin Signal Description Type Pull Up/Down Note HOOK0 RSMRST#... -
Page 53: Slot Connectors (Pcie, Msata, Minipcie, Pci)
KTD-N0829-C Page 53 Slot Connectors 7 Slot Connectors (PCIe, mSATA, miniPCIe, PCI) 7.1 PCIe Connectors All members of the KTQ67 family supports one (x16) (16-lane) PCI Express port, one x4 PCI Express port (in a x16 PCI Express connector) and two miniPCI Express ports. The 16-lane (x16) PCI Express (PCIe 2.0) port can be used for external PCI Express cards inclusive graphics card. - Page 54 KTD-N0829-C Page 54 Slot Connectors PEG_RXN[4] PEG_TXP[5] PEG_TXN[5] PEG_RXP[5] PEG_RXN[5] PEG_TXP[6] PEG_TXN[6] PEG_RXP[6] PEG_RXN[6] PEG_TXP[7] PEG_TXN[7] PEG_RXP[7] CLKREQ PEG_RXN[7] PEG_TXP[8] PEG_TXN[8] PEG_RXP[8] PEG_RXN[8] PEG_TXP[9] PEG_TXN[9] PEG_RXP[9] PEG_RXN[9] PEG_TXP[10] PEG_TXN[10] PEG_RXP[10] PEG_RXN[10] PEG_TXP[11] PEG_TXN[11] PEG_RXP[11] PEG_RXN[11] PEG_TXP[12] PEG_TXN[12] PEG_RXP[12] PEG_RXN[12] PEG_TXP[13] PEG_TXN[13] PEG_RXP[13] PEG_RXN[13]...
-
Page 55: Msata (J43)
KTD-N0829-C Page 55 Slot Connectors 7.1.2 mSATA (J43) The mSATA support mSATA SSD cards (up to full size). mPCI Express is not supported. When mSATA card is installed then SATA2 (J25) is disabled. Note Type Signal Signal Type Note WAKE# +3V3 +1.5V CLKREQ#... -
Page 56: Minipci-Express Mpcie (J42)
KTD-N0829-C Page 56 Slot Connectors 7.1.3 miniPCI-Express mPCIe (J42) The miniPCI Express port mPCIe supports mPCIe cards only. (mSATA not supported) Note Type Signal Signal Type Note WAKE# +3V3 +1.5V CLKREQ# PCIE_mini CLK# PCIE_mini CLK W_Disable# RST# PCIE_RXN +3V3 Dual PCIE_RXP +1.5V SMB_CLK... -
Page 57: Pci-Express X4 Connector (Pcie X4) (J33)
KTD-N0829-C Page 57 Slot Connectors 7.1.4 PCI-Express x4 Connector (PCIe x4) (J33) The KTQ67 supports one PCIex4 in a PCIex16 slot. All GND pins in the PCIEx16 connector are connected to GND, but all signal pins from pin 33 and above are all unconnected. (EFT samples support only PCIe x1). -
Page 58: Pci Slot Connectors
KTD-N0829-C Page 58 Slot Connectors 7.2 PCI Slot Connectors KTQ67/Flex support 2 PCI slots PCI0 – PCI1 (J1 – J2). KTQ67/ATXE supports 5 PCI slots PCI0 – PCI4 (J48 – J52). Terminal Note Type Signal Signal Type Note -12V TRST#... -
Page 59: Signal Description - Pci Slot Connector
KTD-N0829-C Page 59 Slot Connectors 7.2.1 Signal Description – PCI Slot Connector SYSTEM PINS Clock provides timing for all transactions on PCI and is an input to every PCI device. All other PCI signals, except RST#, INTA#, INTB#, INTC#, and INTD#, are sampled on the risingedge of CLK and all other timing parameters are defined with respect to this edge. -
Page 60: Ktq67 Pci Irq & Int Routing
Interrupt D is used to request an interrupt and only has meaning on a multi-function device. INTD# 7.2.2 KTQ67 PCI IRQ & INT routing Board type Slot IDSEL INTA INTB INTC INTD KTQ67/Flex REQ0 GNT0 INTA INTB INTC INTD REQ1 GNT1 INTF... -
Page 61: On-Board - & Mating Connector Types
Type no. Manufacturer Type no. FAN_CPU Foxconn HF2704E-M1 1375820-4 (4-pole) FAN_SYS 1470947-1 1375820-3 (3-pole) Molex 22-23-2061 Molex 22-01-2065 KBDMSE Kontron KT 1046-3381 Foxconn HF1104E Molex 50-57-9404 CDROM Molex 70543-0038 Hon Hai LD1807V-S52T Molex 67489-8005 SATA KT 821035 (cable kit) Kontron... -
Page 62: System Resources
KTD-N0829-C Page 62 System Resources 9 System Resources 9.1 Memory Map Address (hex) Size Description KTQ67 Users Guide... -
Page 63: Pci Devices
KTD-N0829-C Page 63 System Resources 9.2 PCI Devices Device Function Vendor Device Chip Device Function KTQ67 Users Guide... -
Page 64: Interrupt Usage
KTD-N0829-C Page 64 System Resources 9.3 Interrupt Usage Notes IRQ0 IRQ1 IRQ2 IRQ3 IRQ4 IRQ5 IRQ6 IRQ7 IRQ8 IRQ9 IRQ10 IRQ11 IRQ12 IRQ13 IRQ14 IRQ15 IRQ16 IRQ17 IRQ18 IRQ19 IRQ20 IRQ21 IRQ22 IRQ23 IRQ24 IRQ25 IRQ26 KTQ67 Users Guide... -
Page 65: Io Map
KTD-N0829-C Page 65 System Resources 9.4 IO Map Address range (hex) Size Description KTQ67 Users Guide... - Page 66 KTD-N0829-C Page 66 System Resources KTQ67 Users Guide...
-
Page 67: Bios
KTD-N0829-C Page 67 BIOS 10 BIOS This section details specific BIOS features for the KTQ67 family of boards KTQ67 Users Guide... -
Page 68: Ami Bios Beep Codes
KTD-N0829-C Page 68 AMI BIOS Beep Codes 11 AMI BIOS Beep Codes Boot Block Beep Codes: Number of Description Beeps Insert diskette in floppy drive A: ‘AMIBOOT.ROM’ file not found in root directory of diskette in A: Base Memory error Flash Programming successful Floppy read error Keyboard controller BAT command failed... -
Page 69: Os Setup
KTD-N0829-C Page 69 OS Setup 12 OS Setup Use the Setup.exe files for all relevant drivers. The drivers can be found on KTQ67 Driver CD or they can be downloaded from the homepage http://www.kontron.com/ KTQ67 Users Guide...
