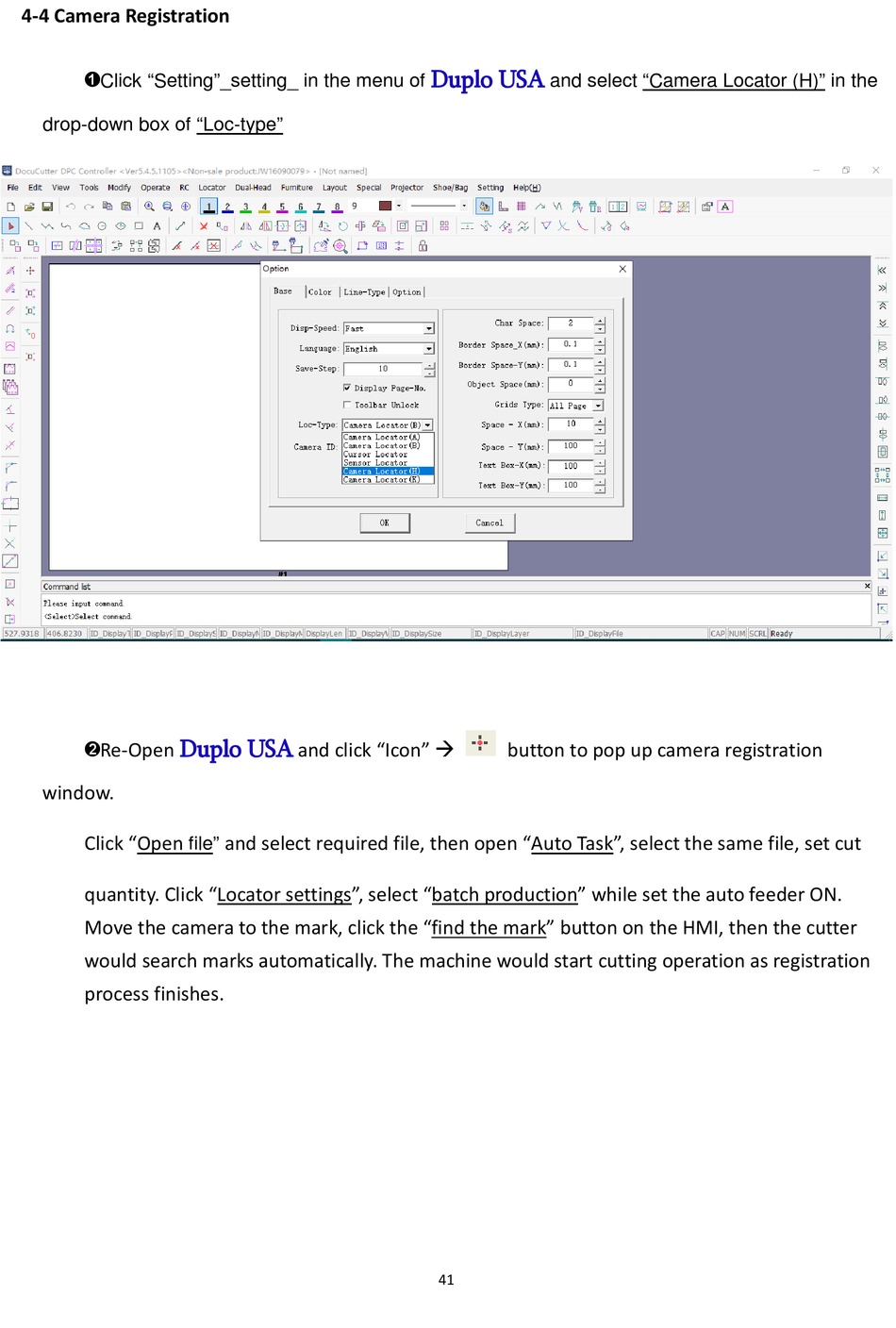

4-4 Camera Registration
➊
Click "Setting"_setting_ in the menu of
drop-down box of "Loc-type"
Duplo USA
➋Re-Open
window.
Click "Open
file"
quantity. Click "Locator settings", select "batch production" while set the auto feeder ON.
Move the camera to the mark, click the "find the mark" button on the HMI, then the cutter
would search marks automatically. The machine would start cutting operation as registration
process finishes.
and click "Icon"
and select required file, then open "Auto Task", select the same file, set cut
Duplo USA
and select "Camera Locator (H)" in the
button to pop up camera registration
41
