ADVANACE_a CALIBRATION
1. Make a 100mm X 100mm square and test on blank sheet.
2. Check the corners of the document.
1. Press Wheel Action and make a line #1 by pressing the Left arrow.
2. Press Wheel Action to Lift the tool, press Left Arrow key to move the Head down a few
inches.
3. Press Wheel Action to drop the Wheel and press Right Arrow to make Line #2 until it
reaches the beginning of line #1.
4. The lines should match perfectly, if not adjust the angle by moving the Wheel Offset value.
-If Line #2 is going over Line #1, Increase value to Wheel Offset
-If Line #2 is lower than Line #1 Degrease value from Wheel Offset.
Note:
10 units is 1 degree.

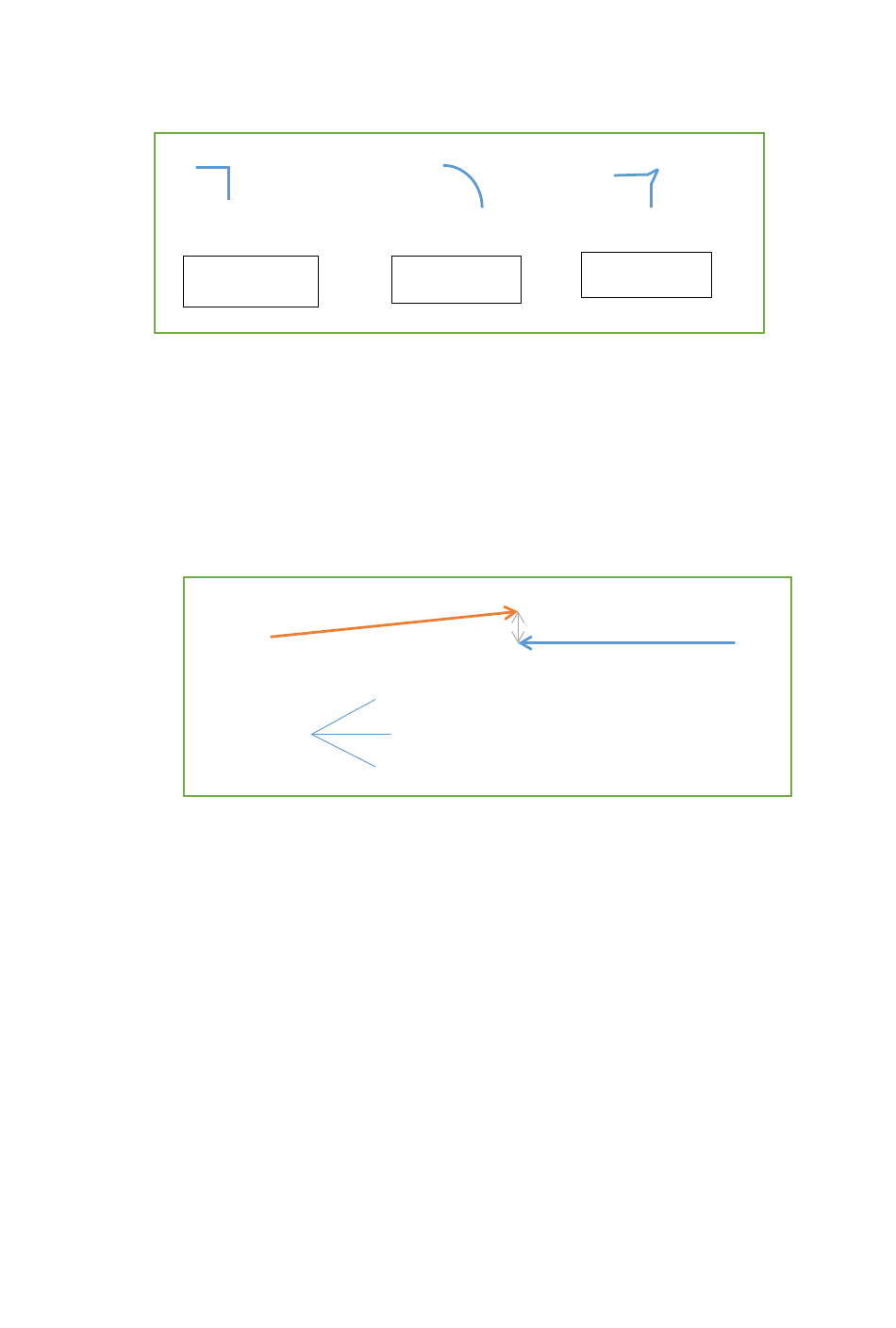

Knife and Knife1 Compensation
Perfect
a. If the angle is rounded, Increase the value.
b. If the angle is flared, Decrease the value.
Wheel Offset Adjustment
#2
mjb
Round
#3
-
0 Degrees
+
26
Flared
#1
