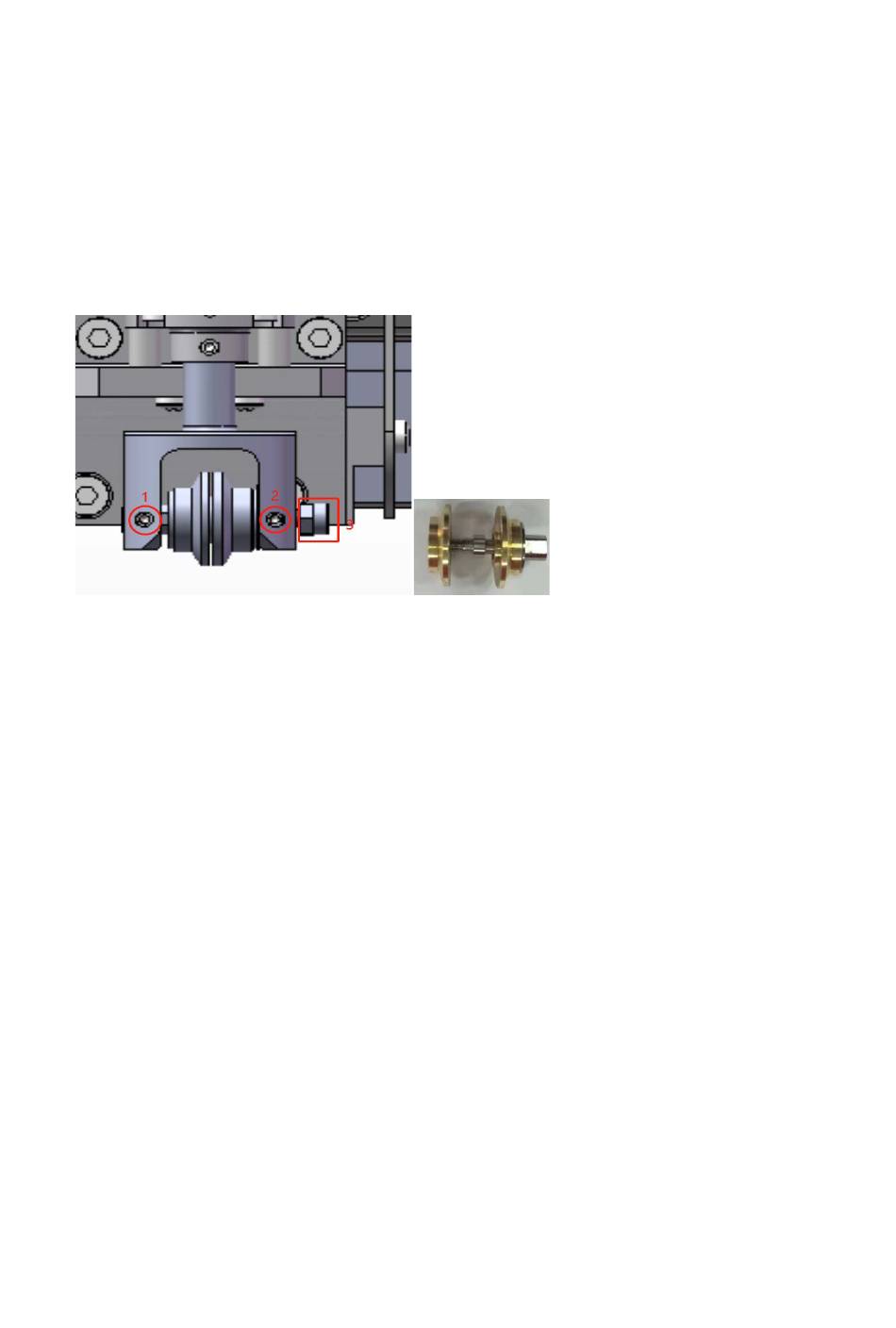

Creasing wheel installation
1&2 are the Allen screws, those two screws use for fix the crease wheel .Number 3 is the screw
which use for pull the wheel holder and adjust the center of wheel blade .
a. loosen1&2 then loosen 3
b. Push down that wheel blade holder
c. Change new wheel blade (4)
Note:
The wheel can be installed off of center. Please test the Wheel Offset Calibration on a blank
sheet see if the wheel is installed correctly.
(4)
