Duplo DocuCutter DPC-400 Operation Manual page 21

X OFFSET
Calibration Ratio: Adjusts the pulses of the X
motor.
-If the motor stops short of the stop positon
adjust number to positive (+)
-If the motor goes beyond the stop position
adjust number to negative (-)
Knife-Knife1 offset: Aligns the knife position
to match Knife1, 0.1=1mm in value
-Positive moves tool to the Left
-Negative moves tool to the Right
Wheel-Knife1 offset: Aligns the Wheel
position to match Knife1, 0.1=1mm in value
-Positive moves tool to the Left
-Negative moves tool to the Right

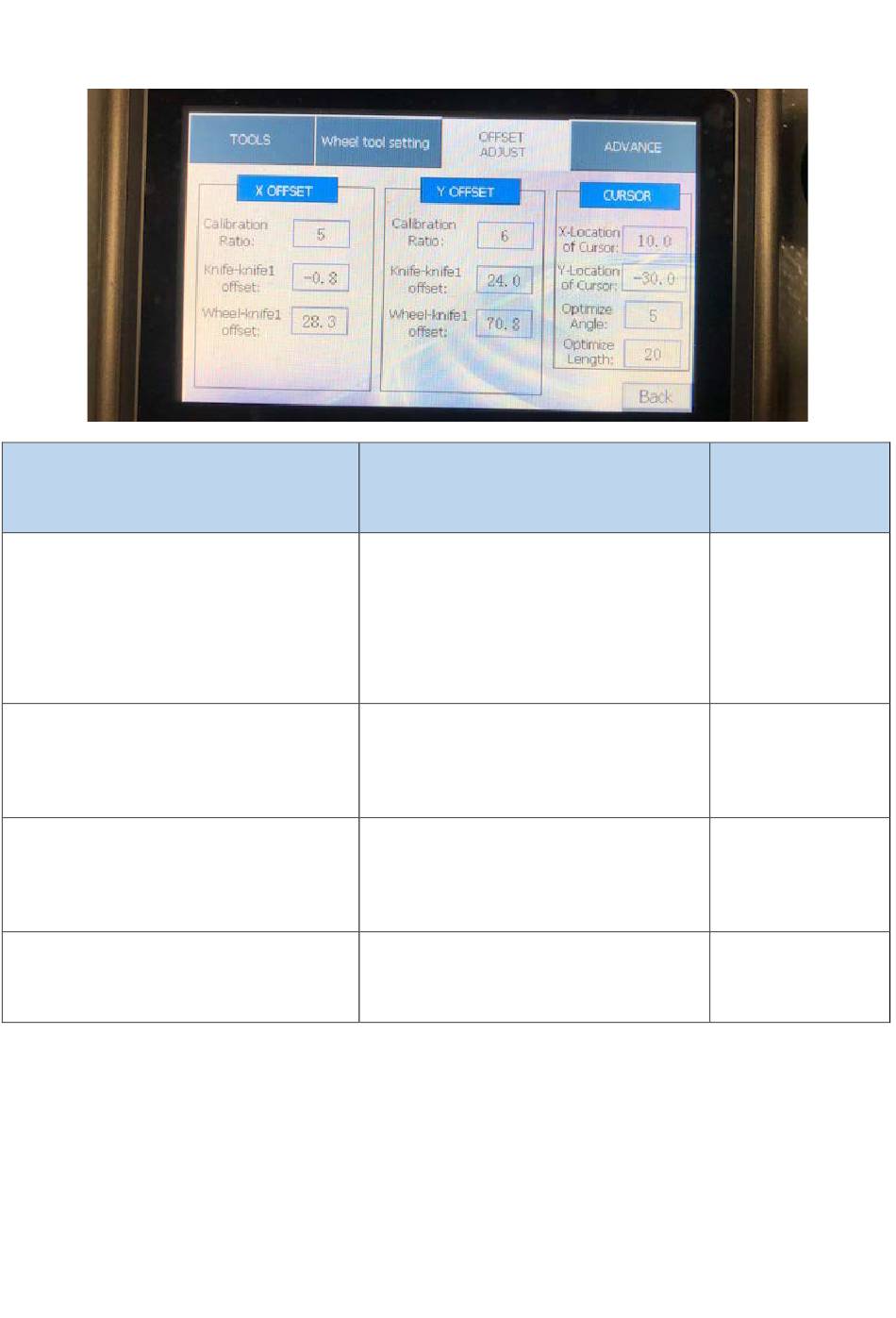

OFFSET ADJUST
Y OFFSET
Calibration Ratio: Adjusts the pulses of the
X motor.
-If the motor stops short of the stop
positon adjust number to positive (+)
-If the motor goes beyond the stop position
adjust number to negative (-)
Knife-Knife1 offset: Aligns the knife
position to match Knife1, 0.1=1mm in value
-Positive moves tool to the Down
-Negative moves tool to the UP
Wheel-Knife1 offset: Aligns the Wheel
position to match Knife1, 0.1=1mm in value
-Positive moves tool to the Down
-Negative moves tool to the Up
21
CURSOR
X-Location: 10.0
(default)
Y-Location: -30.0
(default)
Optimize Angle: 5
(default)
Optimize Length: 20
(default)
