EMBROIDERY

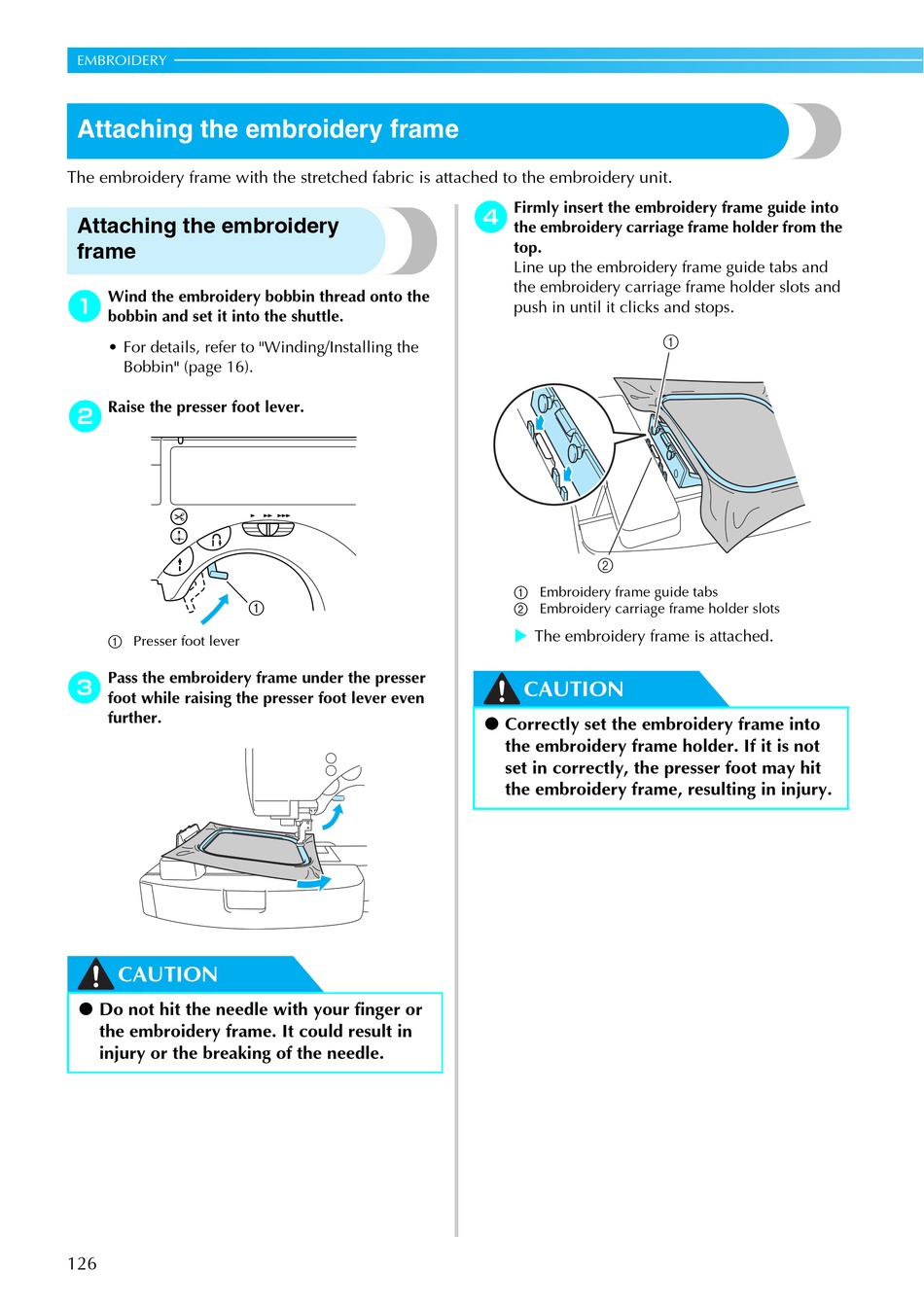

Attaching the embroidery frame

The embroidery frame with the stretched fabric is attached to the embroidery unit.
Attaching the embroidery
frame
a Wind the embroidery bobbin thread onto the
bobbin and set it into the shuttle.
• For details, refer to "Winding/Installing the
Bobbin" (page 16).
b Raise the presser foot lever.
a Presser foot lever
Pass the embroidery frame under the presser
c
foot while raising the presser foot lever even
further.
CAUTION
● Do not hit the needle with your finger or
the embroidery frame. It could result in
injury or the breaking of the needle.
126
1
d Firmly insert the embroidery frame guide into
the embroidery carriage frame holder from the
top.
Line up the embroidery frame guide tabs and
the embroidery carriage frame holder slots and
push in until it clicks and stops.
2
a Embroidery frame guide tabs
b Embroidery carriage frame holder slots
The embroidery frame is attached.
CAUTION
● Correctly set the embroidery frame into
the embroidery frame holder. If it is not
set in correctly, the presser foot may hit
the embroidery frame, resulting in injury.
1
