UTILITY STITCHES
Stitch Name Pattern
40
Heirloom stitching, etc.
41
29
Decorative
stitch
30
Decorative stitching
31
32

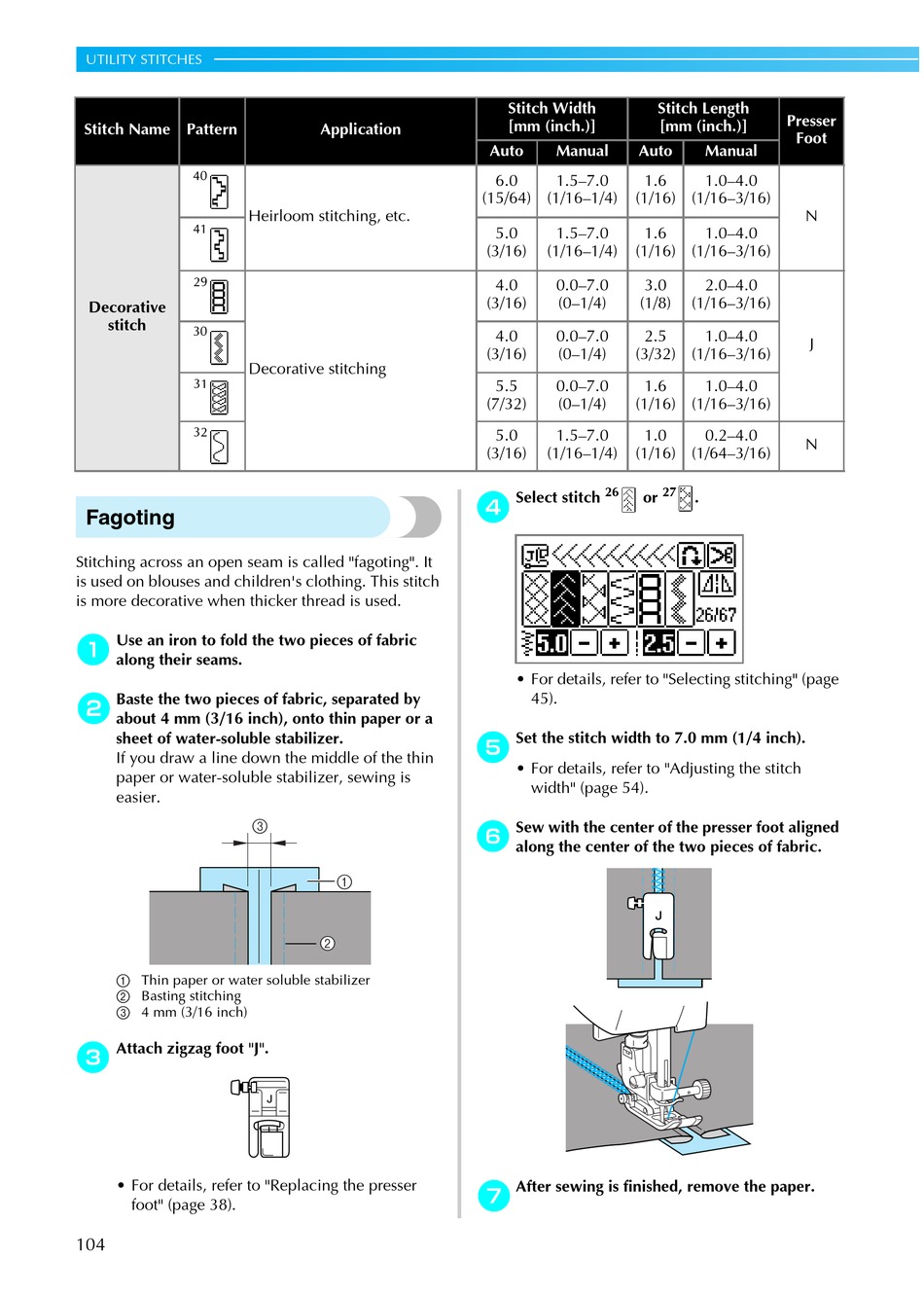

Fagoting

Stitching across an open seam is called "fagoting". It
is used on blouses and children's clothing. This stitch
is more decorative when thicker thread is used.
a Use an iron to fold the two pieces of fabric
along their seams.
b Baste the two pieces of fabric, separated by
about 4 mm (3/16 inch), onto thin paper or a
sheet of water-soluble stabilizer.
If you draw a line down the middle of the thin
paper or water-soluble stabilizer, sewing is
easier.
a Thin paper or water soluble stabilizer
b Basting stitching
c 4 mm (3/16 inch)
c Attach zigzag foot "J".
• For details, refer to "Replacing the presser
foot" (page 38).
104
Application
3
1
2
J
Stitch Width
[mm (inch.)]
Auto Manual Auto
6.0 1.5–7.0 1.6
(15/64) (1/16–1/4) (1/16)
5.0 1.5–7.0 1.6
(3/16) (1/16–1/4) (1/16)
4.0 0.0–7.0 3.0
(3/16) (0–1/4) (1/8)
4.0 0.0–7.0 2.5
(3/16) (0–1/4) (3/32)
5.5 0.0–7.0 1.6
(7/32) (0–1/4) (1/16)
5.0 1.5–7.0 1.0
(3/16) (1/16–1/4) (1/16)
26
d Select stitch or
• For details, refer to "Selecting stitching" (page
45).
e Set the stitch width to 7.0 mm (1/4 inch).
• For details, refer to "Adjusting the stitch
width" (page 54).
f Sew with the center of the presser foot aligned
along the center of the two pieces of fabric.
g After sewing is finished, remove the paper.
Stitch Length
Presser
[mm (inch.)]
Foot
Manual
1.0–4.0
(1/16–3/16)
N
1.0–4.0
(1/16–3/16)
2.0–4.0
(1/16–3/16)
1.0–4.0
J
(1/16–3/16)
1.0–4.0
(1/16–3/16)
0.2–4.0
N
(1/64–3/16)
27
.
