c Carefully pull on the loop of thread passed
through the eye of the needle to pull out the
end of the thread.
• When embroidering, go to
d Pass the thread through the presser foot, and
then pull out about 10-15 cm (3/8-5/8 inch) of
thread toward the rear of the machine.
a 10-15 cm (3/8-5/8 inch)
The upper threading is finished.
Close the thread cassette compartment cover.
e
Now that the upper threading and the lower
threading are finished, you are ready to
begin sewing.
• When embroidering, go to
"Embroidering a pattern" (page 134).
Note
When inserting the thread cassette into its
compartment, slowly press it down.
If the sewing machine could not be
threaded, try performing the procedure
again starting from loading the spool of
thread into the thread cassette.
e
.
1
c
in

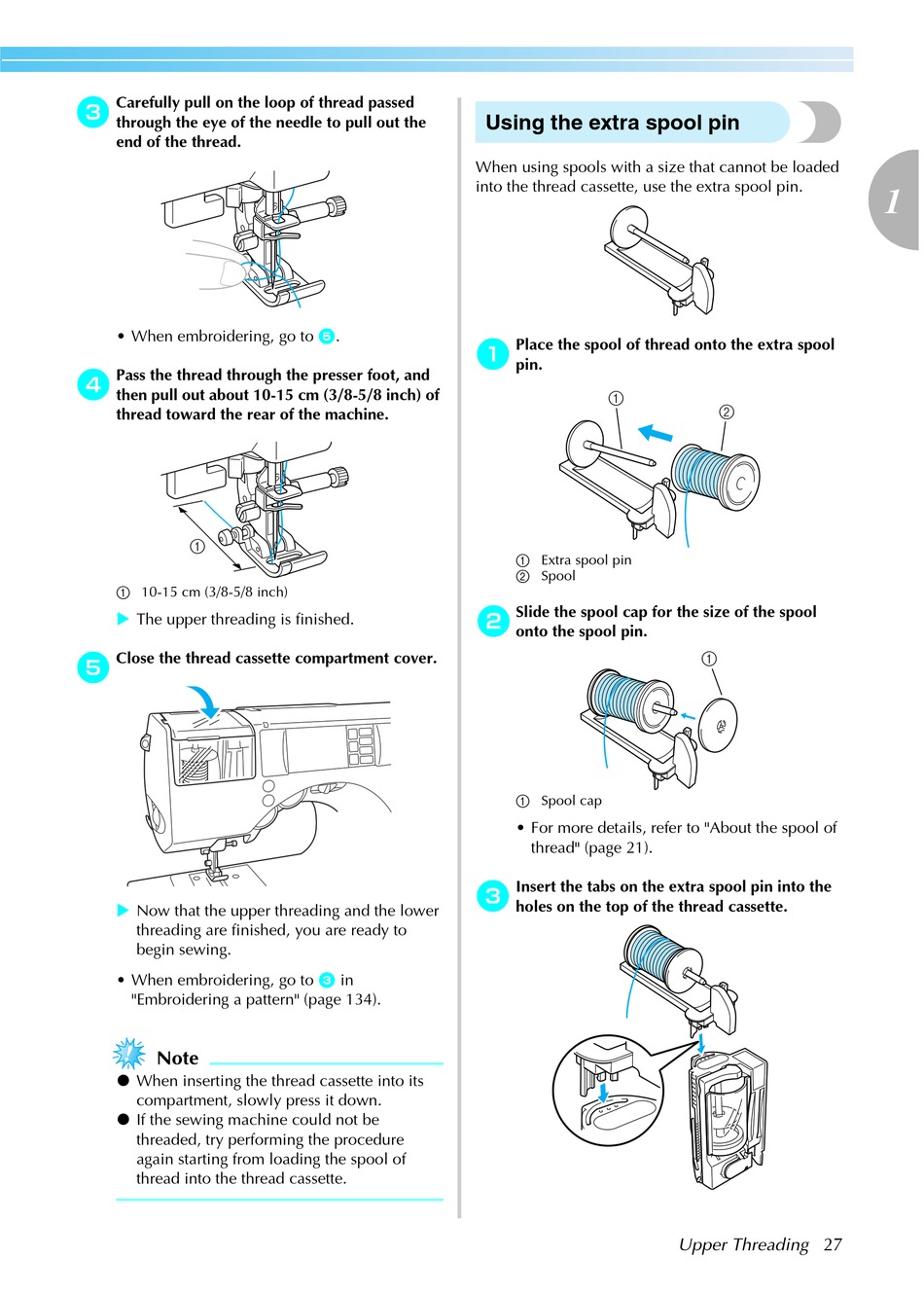

Using the extra spool pin

When using spools with a size that cannot be loaded
into the thread cassette, use the extra spool pin.
Place the spool of thread onto the extra spool
a
pin.
1
a Extra spool pin
b Spool
b Slide the spool cap for the size of the spool
onto the spool pin.
a Spool cap
• For more details, refer to "About the spool of
thread" (page 21).
c Insert the tabs on the extra spool pin into the
holes on the top of the thread cassette.
2
1
Upper Threading 27
