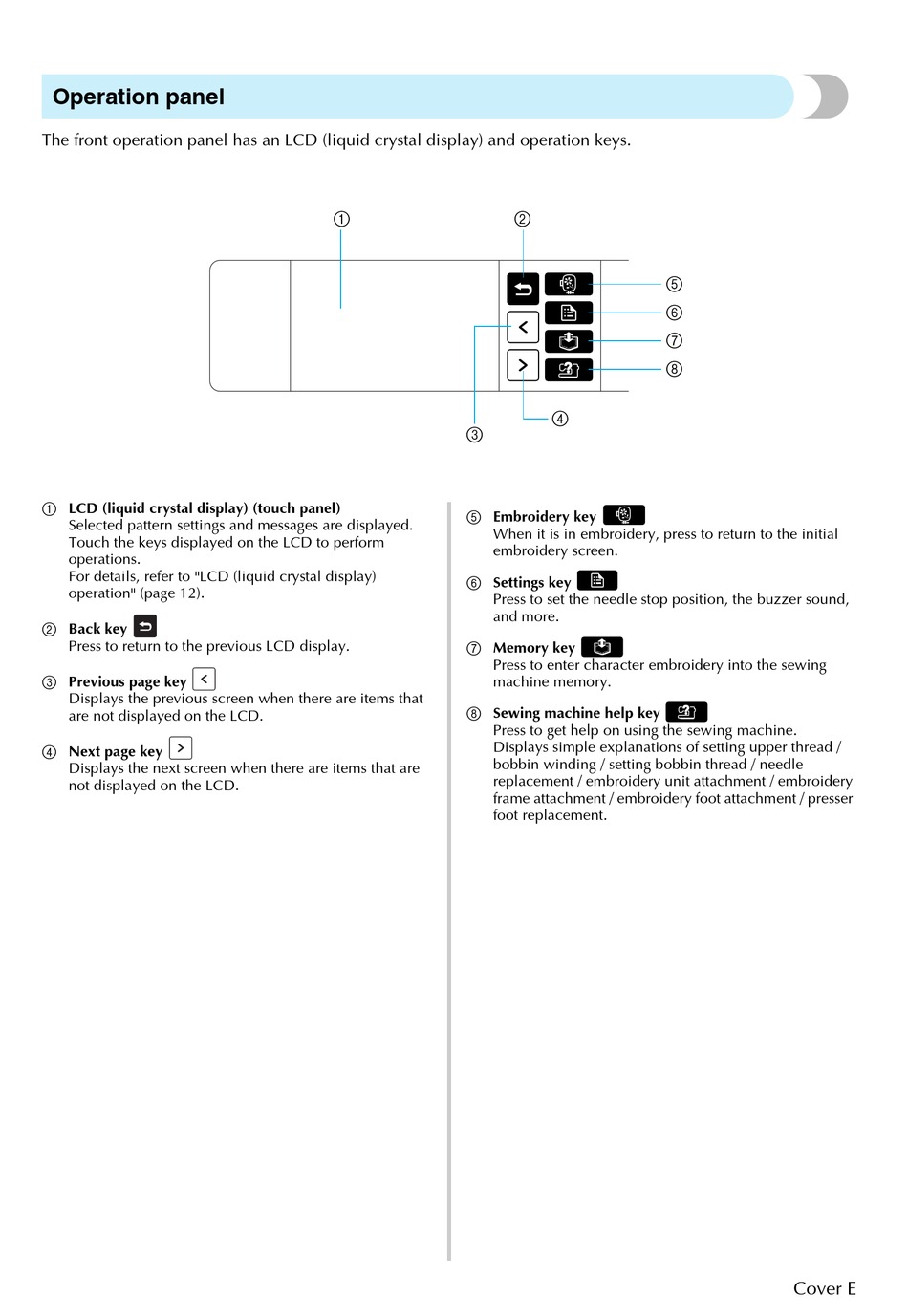

Operation panel

The front operation panel has an LCD (liquid crystal display) and operation keys.
a LCD (liquid crystal display) (touch panel)
Selected pattern settings and messages are displayed.
Touch the keys displayed on the LCD to perform
operations.
For details, refer to "LCD (liquid crystal display)
operation" (page 12).
b Back key
Press to return to the previous LCD display.
c Previous page key
Displays the previous screen when there are items that
are not displayed on the LCD.
d Next page key
Displays the next screen when there are items that are
not displayed on the LCD.
1
3
e Embroidery key
When it is in embroidery, press to return to the initial
embroidery screen.
f Settings key
Press to set the needle stop position, the buzzer sound,
and more.
g Memory key
Press to enter character embroidery into the sewing
machine memory.
h Sewing machine help key
Press to get help on using the sewing machine.
Displays simple explanations of setting upper thread /
bobbin winding / setting bobbin thread / needle
replacement / embroidery unit attachment / embroidery
frame attachment / embroidery foot attachment / presser
foot replacement.
2
5
6
7
8
4
