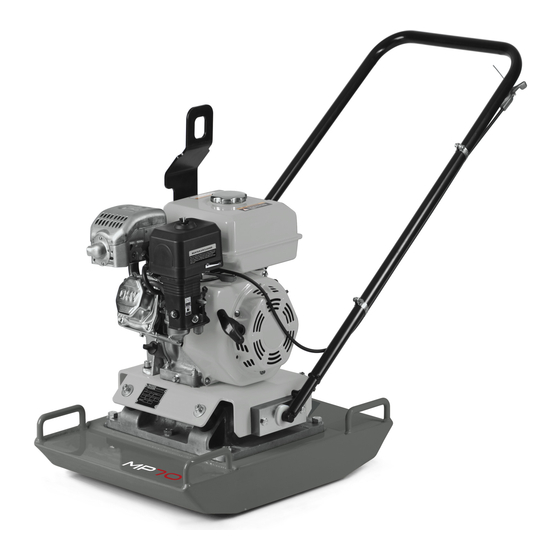

Wacker Neuson MP70 Operator's Manual

Vibroplate
Hide thumbs Also See for MP70:
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's Manual
Vibroplate
MP70
EN
5300407286
01
0614
5
3
0
0
4
0
7
2
8
6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wacker Neuson MP70

Summary of Contents for Wacker Neuson MP70

  • Page 1 Operator’s Manual Vibroplate MP70 5300407286 0614...
  • Page 2 This publication may be photocopied by the original purchaser of the machine. Any other type of reproduction is prohibited without express written permission from Wacker Neuson Corporation. Any type of reproduction or distribution not authorized by Wacker Neuson Corporation represents an infringement of valid copyrights. Violators will be prosecuted. Trademarks All trademarks referenced in this manual are the property of their respective owners.

  • Page 3: Foreword

    Use the separate Parts Book supplied with the machine to order replacement parts. If you are missing any of these documents, please contact Wacker Neuson to order a replacement or visit www.wackerneuson.com. When ordering parts or requesting service information, be prepared to provide the machine model number, item number, revision number, and serial number.
  • Page 4 The information contained in this manual is based on machines manufactured up until the time of publication. Wacker Neuson reserves the right to change any portion of this information without notice. The illustrations, parts, and procedures in this manual refer to Wacker Neuson factory-installed components.

  • Page 5: Table Of Contents

    MP70 Table of Contents Foreword Safety Information Signal Words Used in this Manual ............7 Machine Description and Intended Use ..........8 Operating Safety .................. 9 Operator Safety while Using Internal Combustion Engines ....11 Service Safety ..................11 Labels Label Locations ..................
  • Page 6 Table of Contents MP70 Maintenance Maintaining the Emission Control System ...........22 Periodic Maintenance Schedule ............22 Servicing the Spark Plug ..............24 Servicing the Air Cleaner ..............25 Changing the Engine Oil ..............26 Adjusting the Engine Speed ..............27 Adjusting the Carburetor ..............27 Cleaning the Sediment Cup ..............28...

  • Page 7: Safety Information

    MP70 Safety Information Safety Information Signal Words Used in this Manual This manual contains DANGER, WARNING, CAUTION, NOTICE, and NOTE signal words which must be followed to reduce the possibility of personal injury, damage to the equipment, or improper service.

  • Page 8: Machine Description And Intended Use

    MP70 Safety Information Machine Description and Intended Use The Wacker Neuson Vibratory plate is designed for the compaction of sand, gravel, grit, granular materials, segmental brick paving and hot and cold asphalt, (when fitted with the optional water sprinkler system).

  • Page 9: Operating Safety

    To ensure safe operation of the machine: Do not operate the machine if any safety devices or guards are missing or inoperative. Do not modify or defeat the safety devices. Only use accessories or attachments that are approved by Wacker Neuson. wpm_si000880gb.fm...
  • Page 10 MP70 Safety Information Safe When operating this machine: operating Remain aware of the machine’s moving parts. Keep hands, feet, and loose practices clothing away from the machine’s moving parts. When operating this machine: Do not operate a machine in need of repair.

  • Page 11: Operator Safety While Using Internal Combustion Engines

    Only trained personnel shall troubleshoot or repair problems occurring with the machine. Contact Wacker Neuson for additional training if necessary. When servicing or maintaining this machine: Do not allow improperly trained people to service or maintain the machine. Personnel servicing or maintaining the machine must be familiar with the associated potential risks and hazards.
  • Page 12 Machine When servicing or maintaining the machine: modifications Use only accessories/attachments that are approved by Wacker Neuson. When servicing or maintaining the machine: Do not defeat safety devices. Do not modify the machine without the express written approval of Wacker Neuson.
  • Page 13 MP70 Safety Information Cleaning When cleaning and servicing the machine: Keep the machine clean and free of debris such as leaves, paper, cartons, etc. Keep the labels legible. When cleaning the machine: Do not clean the machine while it is running.

  • Page 14: Labels

    MP70 Labels Labels Label Locations wpm_gr012087 wpm_si000881gb.fm...

  • Page 15: Label Meanings

    MP70 Labels Label Meanings WARNING! Always wearing hearing and eye protection when operating this machine. WARNING Hot surface Guaranteed sound power level in dB(A). WARNING Hand injury if caught in moving belt. Always replace beltguard. Read the operator’s manual carefully before operating the product.
  • Page 16 MP70 Labels Engines emit carbon monoxide; operate only in well-ventilated area. Read the operator’s Manual No sparks, flames, or burning objects near the machine. Shut off the engine before refueling. Company logo Company label A nameplate listing the model number, item number, revision number, and serial number is attached to each unit.

  • Page 17: Lifting And Transporting

    MP70 Lifting and Transporting Lifting and Transporting Lifting the This machine is heavy enough to cause injury if proper lifting techniques are not Machine used. Observe the following guidelines when lifting the vibroplate. Do not attempt to lift the machine unassisted. Use appropriate lifting equipment such as slings, chains hooks, ramps or jacks.

  • Page 18: Operation

    1. Make sure all loose packaging materials have been removed from the machine. 2. Check the machine and its components for damage. If there is visible damage, do not operate the machine! Contact your Wacker Neuson dealer immediately for assistance.

  • Page 19: Application

    MP70 Operation Application This plate is designed for compacting loose, granular soils, gravel, and paving stones. It is intended to be used in confined areas and areas next to structures such as walls, curbs, and foundations. Plates equipped with water tanks can be used for compacting asphalt.

  • Page 20: Starting The Machine

    MP70 Operation Starting the Machine Procedure Perform the procedures below to start the machine. 1. Turn the fuel cock to the “ON” (OPEN) position (a1). Note: If the engine is cold, move the choke lever to close position (b1). If the engine is hot, set the choke to open position (b2).

  • Page 21: Stopping The Machine

    MP70 Operation Stopping the Machine Perform the following procedures to stop the engine. Procedure 1. Reduce the engine rpm to idle by moving the throttle completely to the left (g2). 2. Turn the engine switch to “OFF” (e2) 3. Close the fuel valve by moving the lever to the left (a2).

  • Page 22: Maintenance

    WACKER NEUSON. The use of service parts that are not equivalent in performance and durability by authorized parts may impair the effectiveness of the emission control system and may have a bearing on the outcome of a warranty.
  • Page 23 MP70 Maintenance Machine Maintenance The chart below lists basic machine maintenance. Daily After Every Every Every before first starting 20 hr Check the external hardware Check and adjust the drive belts Inspect the shockmounts for damage Replace the shockmounts as...

  • Page 24: Servicing The Spark Plug

    MP70 Maintenance Servicing the Spark Plug Clean or replace the spark plug as needed to ensure proper operation. Refer to your engine operator’s manual. WARNING The muffler becomes very hot during operation and remains hot for a while after stopping the engine. Do not touch the muffler while it is hot.

  • Page 25: Servicing The Air Cleaner

    MP70 Maintenance Servicing the Air Cleaner A dirty air cleaner can restrict air flowing into the carburetor. To keep the carburetor in good working conditions, please service the air cleaner periodically. If operating the engine in extremely dust area, the job should be done more often.

  • Page 26: Changing The Engine Oil

    MP70 Maintenance Changing the Engine Oil Requirement The requirements for this procedure are: Engine warm Fresh oil Procedure Perform the procedure below to change the engine oil. 1. Drain the oil while the engine is still warm. 2. Remove the oil filter plug (a) and the drain plug (b) to drain the oil.

  • Page 27: Adjusting The Engine Speed

    MP70 Maintenance Adjusting the Engine Speed Procedure Perform the procedure below to adjust the engine speed. 1. Place machine on a rubber test mat to prevent it from moving. 2. Start engine and allow it to warm up for a minute.

  • Page 28: Cleaning The Sediment Cup

    MP70 Maintenance Cleaning the Sediment Cup Procedure Perform the procedure below to clean the sediment cup. 1. Turn the fuel valve off. 2. IRemove the sediment cup (a) and the O-ring (b). 3. Wash both thoroughly in a nonflammable solvent. Dry and re-install them.

  • Page 29: Troubleshooting

    MP70 Troubleshooting Troubleshooting Problem Cause Remedy Plate does not • Engine throttle control not • Allow soil to dry before develop full speed. completely open. compacting. Poor compaction. • Throttle control not adjusted • Adjust or replace belt. correctly. •...

  • Page 30: Technical Data

    MP70 Technical Data Technical Data Engine Data Engine Power Rating Net power rating per SAE J1349. Actual power output may vary due to conditions of specific use. MP70 Engine Engine make Wacker Neuson Engine model Maximum rated power kW (hp) 3.5 (4.7) @ 3600 rpm...

  • Page 31: Machine

    Machine Data MP70 Plate Weight kg (lbs.) 49 (108) Exciter speed 5800± 100 Exciter lubrication ml (oz) 207 (7) Automatic transmission fluid Dextron III/Mercon or equivalent Sound and Vibration Measurements The required sound specification, Paragraph 1.7.4.f of 89/392/EEC Machinery Directive, is:...

  • Page 32: Dimensions

    MP70 Dimensions Dimensions 1120 (44) 460 (18) 610 (24) wpm_gr008416 wpm_td000612gb.fm...
  • Page 34 Tel. : (262) 255-0500 Fax: (262) 255-0550 Tel.: (800) 770-0957 Wacker Neuson Limited - Room 1701–03 & 1717–20, 17/F. Tower 1, Grand Century Place, 193 Prince Edward Road West, Mongkok, Kowloon, Hongkong. Tel: (852) 3605 5360, Fax: (852) 2758 0032...
