  • Page 1 Operator’s Manual Vibroplate MP70 5000407286 1218...
  • Page 2 Wacker Neuson Machinery (China) Co., Ltd. Any type of reproduction or distribution not authorized by Wacker Neuson Machinery (China) Co., Ltd. represents an infringement of valid copyrights. Violators will be prosecuted.

  • Page 3: Foreword

    Keep a copy of the Operator’s Manual with the machine at all times. If you are missing any of these documents, please contact Wacker Neuson to order a replacement or visit www.wackerneuson.com. When ordering parts or requesting service information, be prepared to provide the machine model number, item number, revision number, and serial number.
  • Page 4 The information contained in this manual is based on machines manufactured up until the time of publication. Wacker Neuson reserves the right to change any portion of this information without notice. The illustrations, parts, and procedures in this manual refer to Wacker Neuson factory-installed components.

  • Page 5: Table Of Contents

    MP70 Table of Contents Foreword Safety Information Signal Words Used in this Manual ............7 Machine Description and Intended Use ..........8 Operating Safety .................. 9 Operator Safety while Using Internal Combustion Engines ....11 Service Safety ..................12 Labels Label Locations ..................
  • Page 6 Table of Contents MP70 Maintenance Maintaining the Emission Control System ...........22 Periodic Maintenance Schedule ............22 Servicing the Spark Plug ..............24 Servicing the Air Cleaner ..............25 Changing the Engine Oil ..............26 Adjusting the Carburetor ..............27 Servicing the Drive Belt ...............28 Troubleshooting Technical Data Engine Data..................30...

  • Page 7: Safety Information

    MP70 Safety Information Safety Information Signal Words Used in this Manual This manual contains DANGER, WARNING, CAUTION, NOTICE, and NOTE signal words which must be followed to reduce the possibility of personal injury, damage to the equipment, or improper service.

  • Page 8: Machine Description And Intended Use

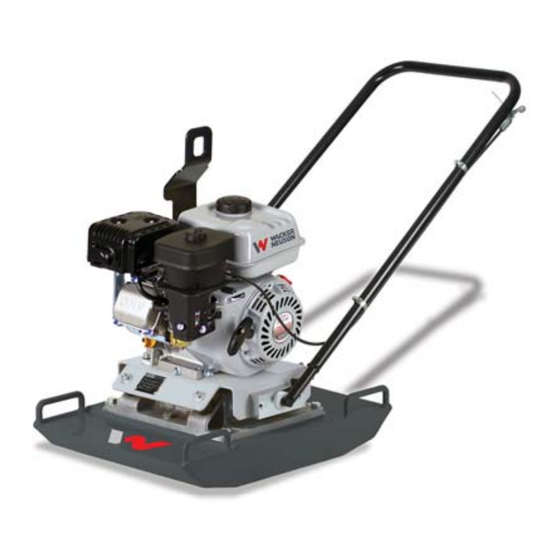

    MP70 Safety Information Machine Description and Intended Use The Wacker Neuson vibratory plate offers functionality and performance. The compact design allows for compaction of mixed soils in the narrowest of spaces— even in extremely narrow trenches. This machine is optimally suited for a variety of compaction applications with high speed and simple maneuverability.

  • Page 9: Operating Safety

    To ensure safe operation of the machine: Do not operate the machine if any safety devices or guards are missing or inoperative. Do not modify or defeat the safety devices. Only use accessories or attachments that are approved by Wacker Neuson. wpm_si000996gb.fm...
  • Page 10 MP70 Safety Information When operating this machine: Safe operating Remain aware of the machine’s moving parts. Keep hands, feet, and loose practices clothing away from the machine’s moving parts. When operating this machine: Do not operate a machine in need of repair.

  • Page 11: Operator Safety While Using Internal Combustion Engines

    MP70 Safety Information Operator Safety while Using Internal Combustion Engines WARNING Internal combustion engines present special hazards during operation and fueling. Failure to follow the warnings and safety standards could result in severe injury or death. Read and follow the warning instructions in the engine owner’s manual and the safety guidelines below.

  • Page 12: Service Safety

    When servicing or maintaining the machine: Machine modifications Use only accessories/attachments that are approved by Wacker Neuson. When servicing or maintaining the machine: Do not defeat safety devices. Do not modify the machine without the express written approval of Wacker Neuson.
  • Page 13 MP70 Safety Information When cleaning and servicing the machine: Cleaning Keep the machine clean and free of debris such as leaves, paper, cartons, etc. Keep the labels legible. When cleaning the machine: Do not clean the machine while it is running.

  • Page 14: Labels

    MP70 Labels Labels Label Locations wpm_gr012087 wpm_si000997_04gb.fm...

  • Page 15: Label Meanings

    MP70 Labels Label Meanings WARNING! To prevent hearing loss, wear hearing protection when operating this machine. NOTICE Lifting point Engine Emission Label Throttle control lever : Turtle = Idle or Slow Rabbit = Full or Fast Machine label MP70 CAUTION!
  • Page 16 MP70 Labels A nameplate listing the model number , item number, revision number, and serial number is attached to each unit. Please record the information found on this nameplate so it will be available should the nameplate become lost or damaged. When...

  • Page 17: Lifting And Transporting

    MP70 Lifting and Transporting Lifting and Transporting This machine is heavy enough to cause injury if proper lifting techniques are not Lifting the used. Observe the following guidelines when lifting the vibroplate. Machine Do not attempt to lift the machine unassisted. Use appropriate lifting equipment such as slings, chains hooks, ramps or jacks.

  • Page 18: Operation

    1. Make sure all loose packaging materials have been removed from the machine. 2. Check the machine and its components for damage. If there is visible damage, do not operate the machine! Contact your Wacker Neuson dealer immediately for assistance.

  • Page 19: Application

    MP70 Operation Application This plate is designed for compacting loose, granular soils, gravel, and paving stones. It is intended to be used in confined areas and areas next to structures such as walls, curbs, and foundations. Plates equipped with water tanks can be used for compacting asphalt.

  • Page 20: Starting The Machine

    MP70 Operation Starting the Machine Perform the procedures below to start the machine. Procedure 1. Turn the fuel cock to the “ON” (OPEN) postion (a1). Note: If engine is cold, move choke lever to close position (b1). If engine is hot, set choke to open position (b2).

  • Page 21: Operation

    MP70 Operation Operation Run the engine at full throttle and allow the plate to pull itself along at its normal speed. When operating on an incline, it may be necessary to assist the plate by pushing it forward slightly. When operating downhill, hold the plate back slightly, if it begins to pickup speed.

  • Page 22: Maintenance

    WACKER NEUSON. The use of service parts that are not equivalent in performance and durability by authorized parts may impair the effectiveness of the emission control system and may have a bearing on the outcome of a warranty.
  • Page 23 MP70 Maintenance Machine Maintenance The chart below lists basic machine maintenance. After Daily Every Every Every first before 50 hr 100 hr 300 hr 20 hr starting or 3 mo. or 6 mo. or 1 yr. or 1mo. Check the external hardware...

  • Page 24: Servicing The Spark Plug

    MP70 Maintenance Servicing the Spark Plug Clean or replace the spark plug as needed to ensure proper operation. Refer to your engine operator’s manual. WARNING The muffler becomes very hot during operation and remains hot for a while after stopping the engine. Do not touch the muffler while it is hot.

  • Page 25: Servicing The Air Cleaner

    MP70 Maintenance Servicing the Air Cleaner A dirty air filter element can restrict air flowing into the carburetor. To keep the Background carburetor in good working conditions, service the air filter element periodically. If operating the engine in extremely dusty area, the job should be done more often.

  • Page 26: Changing The Engine Oil

    MP70 Maintenance Changing the Engine Oil Perform th procedure below to change the engine oil. Procedure 1. Drain the oil while the engine is still warm. 2. Remove the oil filter plug (a) and the drain plug (b) to drain the oil.

  • Page 27: Adjusting The Carburetor

    MP70 Maintenance Adjusting the Carburetor Perform the procedure below to adjust the carburetor. Procedure 1. Start the engine and allow it to warm up to operating temperature. 2. Set the pilot screw (a) two turns out. See Note. 3. With the engine idling, turn the pilot screw (a) in or out to the setting that produces the highest rpm.

  • Page 28: Servicing The Drive Belt

    MP70 Maintenance Servicing the Drive Belt On new machines or after installing a new belt, check the belt tension after first 20 Check hours of operation. Check and adjust the belt every 50 hours thereafter. wpm_gr013521 wpm_tx003787_04gb.fm...

  • Page 29: Troubleshooting

    MP70 Troubleshooting Troubleshooting Problem Cause Remedy Plate does not • Engine throttle control not • Allow soil to dry before develop full speed. completely open. compacting. Poor compaction. • Throttle control not adjusted • Adjust or replace belt. correctly. •...

  • Page 30: Technical Data

    MP70 Technical Data Technical Data Engine Data Engine Power Rating Net power rating per SAE J1349. Actual power output may vary due to conditions of specific use. MP70 Engine Engine make Loncin Engine model G210F Maximum rated power 4.4 @ 3600 rpm...

  • Page 31: Dimensions

    MP70 Dimensions Dimensions 1120 (44) 460 (18) 610 (24) wpm_gr008416 wpm_td000612_04gb.fm...
