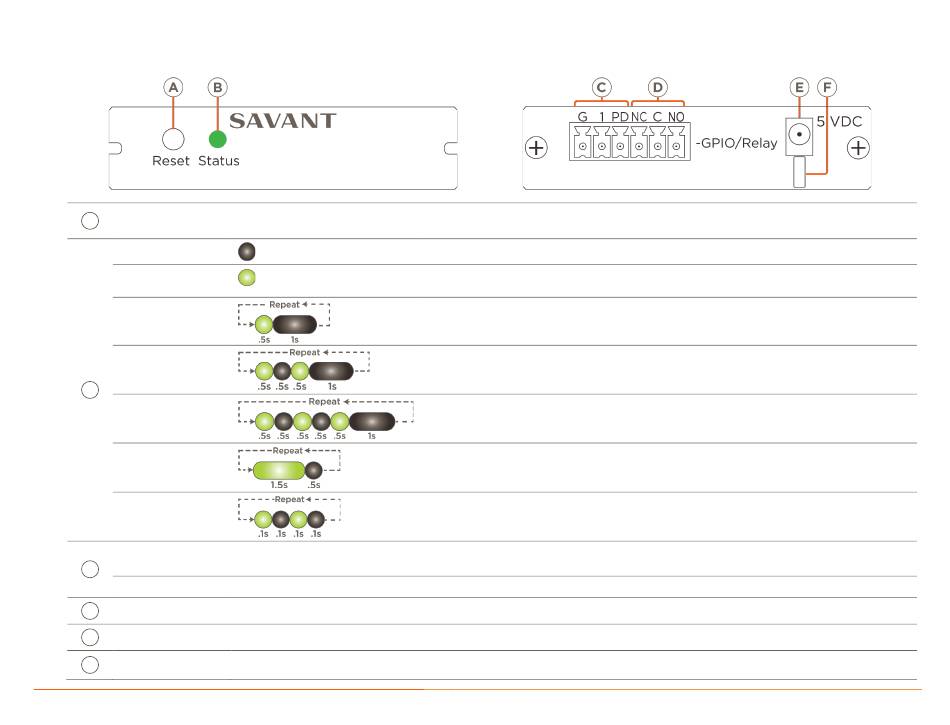

4. Front and Rear Panel Descriptions

It is important to read and understand the information in this section before beginning the installation process. Understanding the various states of the Status
LED as well as the requirements of each port are an important part of the installation process.
A
Reset
Off
Solid Green
Blinks Once
Blinks Twice
B
Blinks Three Times
Short Off Blink
Rapid Blink
GPIO (Input)
C
GPIO (Output)
D
Relay
E
Input Power
F
Cable Lance
SmartControl 2 Wireless Controller Deployment Guide
009-1519-00 | 170103
Press and hold for five seconds while powered; then release. The Status LED will begin blinking rapidly when reset is complete.
After the reset, the controller will be in Provisioning Mode. See Rapid Blink below.
When configured as an input, the processor looks for either a low (<0.8V DC) or high (>2.4V DC).
Minimum 0V DC / Maximum 12V DC.
When configured as an output, the port provides a binary output of 0-12V DC 150ma max.
Dry contacts to control devices requiring basic on/off operation (normally open/normally closed). Max: 30V DC 1A.
5V DC 1.2A – Use the included power supply.
Use with included cable tie to secure power supply connection.
No power applied. Power supply may not be plugged in.
The controller is provisioned to the local network and communicating with the Savant Pro
System Host. This is normal operation mode.
Is in Provisioning Mode and ready to be added to the local network.
Establishing a connection with the local Savant Pro System Host.
Provisioned to the local network and trying to connect to the Savant Pro System Host.
Firmware is updating.
The reset button on the front panel was held down for at least five seconds and the
controller is performing a factory reset. After the reset, all network settings are cleared
and the factory defaults are restored.
