SmartControl 12 (SSC-0012)
Quick Reference Guide
Box Contents
(1) SmartControl 12 (SSC-0012)
(1) Install Kit (075-0180-xx)
(1) Mounting Plate (074-0577-00)
(4) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(1) 12V DC 1.5A Power Supply (025-0166-xx)
(1) Cable Tie (014-0071-xx)
(1) Regulatory Card (009-1857-xx)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 80% Relative Humidity (non-condensing)
Dimensions and Weights
Height 1.40 in (3.5 cm)
Width 6.00 in (15.2 cm)
Depth 3.20 in (8.1 cm)
Net: 0.50 lb (0.22 kg)
Weight
Shipping: 1.50 lb (0.68 kg)
Power
Input Power 12V DC 1.5A
Nominal Power 18 Watts
Regulatory
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 7.0
Network Requirements
Savant requires the use of business class/commercial grade network
equipment throughout the network to ensure the reliability of
communication between devices. These higher quality components
also allow for more accurate troubleshooting when needed.
Connect all Savant devices to the same local area network (LAN) or
subnet as the host. Savant recommends not implementing any type
of traffic or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
Network Configuration
To ensure that the IP Address will not change due to a power outage,
a static IP Address or DHCP reservation should be configured. Savant
recommends using DHCP reservation within the router. By using this
method, static IP Addresses for all devices can be managed from a
single UI avoiding the need to access devices individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
SSC-0012 | 009-1288-03 | 190621
Copyright 2019 Savant Systems, LLC
CE C-Tick

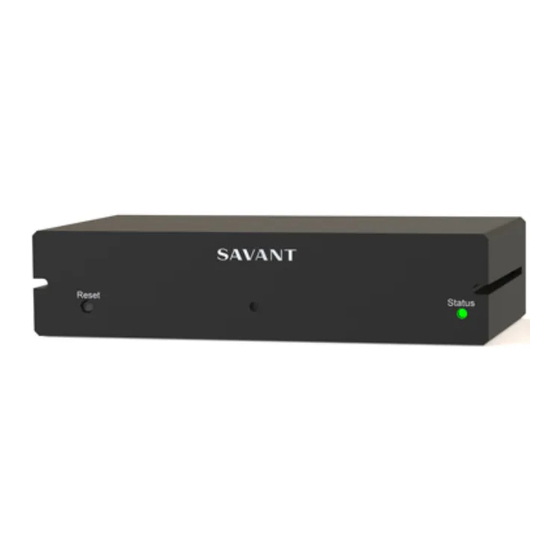

Front Panel
Reset
A
Press and hold for 5 seconds while powered On
Reset
A
to clear network settings. Status LED will blink
Button
rapidly when reset is complete.
Blinks Once: No IP Address
Blinks Twice: Waiting for Host Connection
B
Status LED
Blinks Three Times: Host Connection Lost
Solid: Connected to Host
Rear Panel
Ethernet 1
A
10/100 Base-T auto-negotiating port with Link/
Activity. LEDs: 8-pin RJ-45 female.
Link LED (left)
Off: Ethernet link is not established.
A
Ethernet Green Solid: Ethernet link is established.
Green Blinking: Ethernet activity is occurring.
Data Rate LED (right)
Off: 10 Mbps data rate
Green: 100 Mbps data rate
8-pin RJ-45 female. Used to transmit and receive
serial binary data to and from serial controllable
B
RS-232 devices. Ports 1-2 RS-232 - CTS/RTS handshaking.
CTS/RTS Handshaking availability based on
component profile. See
Used to send IR signals to control devices with an
IR input or IR receiver via an IR flasher (5V tolerant
C
IR only). 6-pin Screw Down Plug-in Connector. See
IR Wiring
functionality before making any connections.
Normally Open / Normally Closed - Relays
6-pin Screw Down Plug-in Connector
D
Dry contacts (open/closed) to control devices
Relay requiring basic on/off operation. DC Voltage Max:
30V DC 1A. 6-pin Screw Down Plug-in Connector
GPIO (General Purpose Input and Output Ports) 6-pinScrew
Down Plug-in Connector. See
When configured as an input, the processor will
E
GPIO Input look for a low (<0.8V DC) or high (>2.4V DC) state.
Minimum 0V DC / Maximum 12V DC
GPIO When configured as an output, the port provides a
Output binary output of 0-12V DC 150mA max.
F
Input Power 12V DC 1.5A – Connect to included power supply.
Use with included cable tie to secure power supply
G
Cable Lance
connection.
1 of 2
IR
RELAY
- 1 + - 2 + - + 3
NC / C1 / NO NC C2 NO /
RS232
2
4 -
+ - + 5 - 6 +
G 1 2 G PD1PD2
GPIO
B C D E
RS-232 Wiring.
for important precautions regarding IR
GPIO Wiring for pinouts.
45 Perseverance Way, Hyannis, MA 02601
Savant.com
Status
B
/
12 VDC
F G
| 508.683.2500
