Savant SmartControl 12 Quick Reference Manual

Savant® SmartControl 12
Quick Reference Guide
Box Contents
(1) SmartControl 12 (SSC-0012-00)
(1) Installation Kit SmartControl 12 (075-0180-xx)
(1) Mounting Plate (074-0577-xx)
(1) 12V DC 1.5A Power Supply (025-0143-xx)
(4) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(1) Cable Tie (014-0071-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 80% RH (non-condensing)
Dimensions and Weight Dimensions and Weight
Height 1.40 in (3.5 cm)
Width 6.00 in (15.2 cm)
Depth 3.20 in (8.1 cm)
Net: 0.50 lb (0.22 kg)
Weight
Shipping: 2.00 lb (0.90 kg)
Power Power
Input Power 12V DC 1.5A
Max Power 18 watts
Compliance Compliance
Safety and
FCC Part 15 | CE Mark | C-Tick
Emissions
RoHS Compliant
Minimum Supported Release Minimum Supported Release
Savant OS da Vinci 7.0
SSC-0012-00 | 009-1255-01 | 150610
Copyright © 2015 Savant Systems, LLC

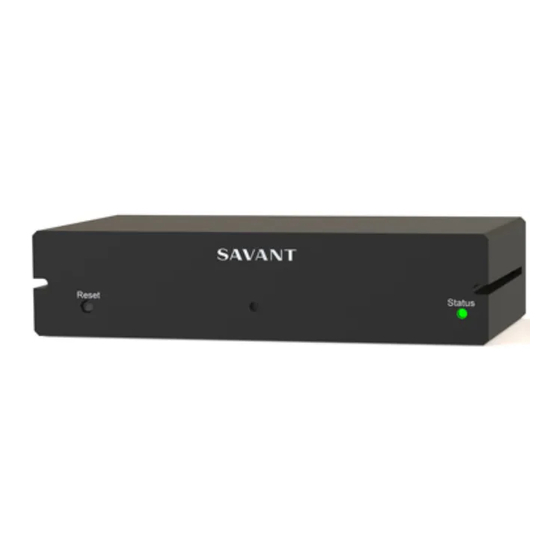

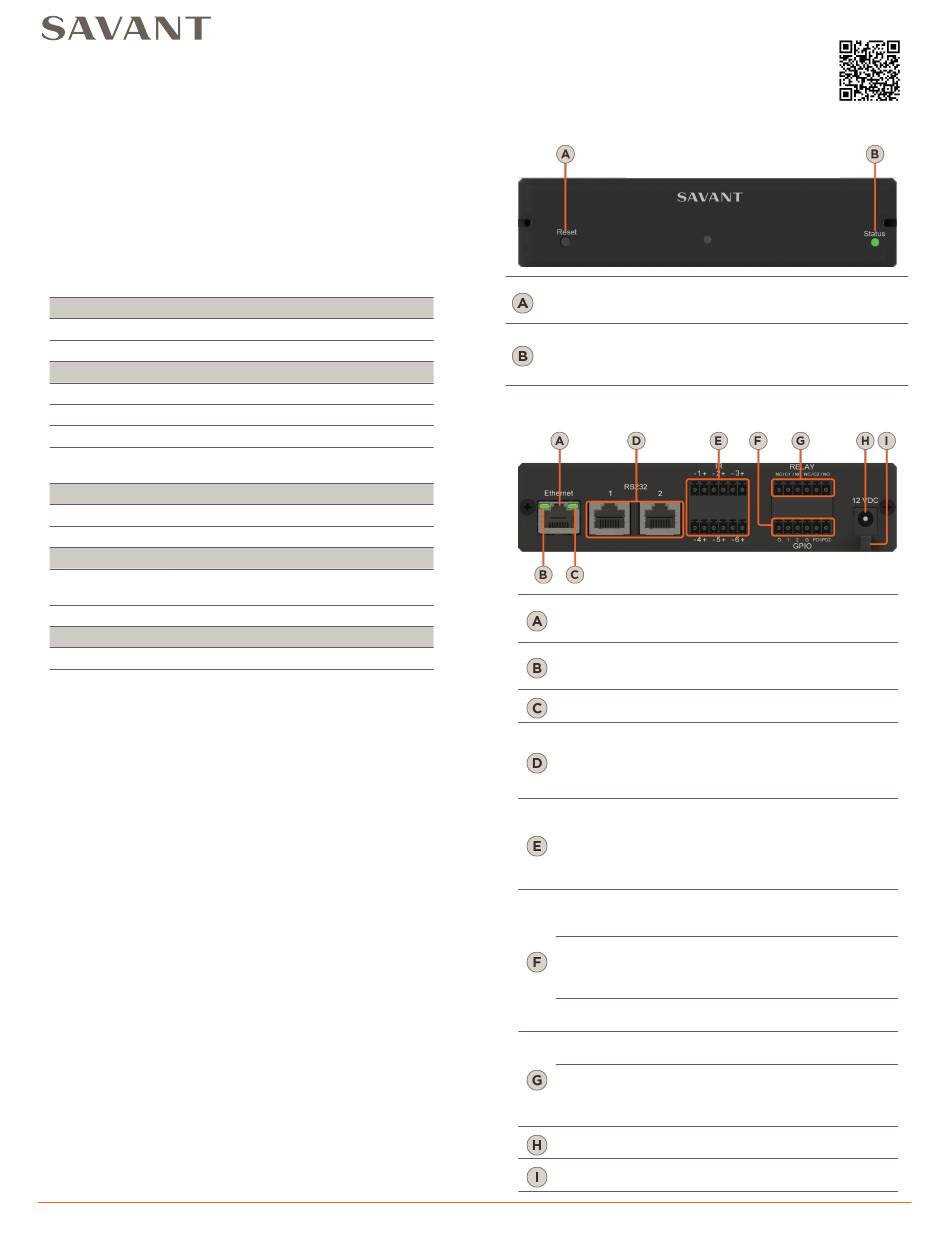

Front Panel
Press and hold for 5 seconds while powered On
Reset Button to clear network settings. Status LED will blink
rapidly when reset is complete.
Blinks Once: No IP Address
Blinks Twice: Waiting for Host Connection
Status LED
Blinks Three Times: Host Connection Lost
Solid: Connected to Host
Rear Panel
10/100 Base-T auto-negotiating port with Link/
Ethernet Activity LEDs: 8-pin RJ-45 female.
See items B and C for LED functionality.
Off: Ethernet link is not established.
Link LED Green Solid: Ethernet link is established.
Green Blinking: Ethernet activity is occurring.
Data Off: 10 Mbps data rate
Rate LED Green: 100 Mbps data rate
8-pin RJ-45 female. Used to transmit and receive
serial binary data to and from serial controllable
RS-232 devices. Ports 1-2 RS-232 - CTS/RTS handshaking.
CTS/RTS Handshaking availability based on
component profile.
Used to send IR signals to control devices with an
IR input or IR receiver via an IR flasher (5V
tolerant only). 6-pin Screw Down Plug-in
IR
Connector.See
precautions regarding IR functionality before
making any connections.
GPIO (General Purpose Input and Output Ports)- 6-pin GPIO (General Purpose Input and Output Ports)- 6-pin
Screw Down Plug-in Connector. Screw Down Plug-in Connector.
See See GPIO and Relay Wiring GPIO and Relay Wiring
When configured as an input, the processor will
GPIO look for a low (<0.8V DC) or high (>2.4V DC )
Input state.
Minimum 0V DC / Maximum 12V DC
GPIO When configured as an output, the port provides
Output a binary output of 0-12V DC 150mA max.
Normally Open / Normally Closed - Relays Normally Open / Normally Closed - Relays
6-pin Screw Down Plug-in Connector 6-pin Screw Down Plug-in Connector
Dry contacts (open/closed) to control devices
requiring basic on/off operation. DC Voltage Max:
Relay
30V DC 1A.
6-pin Screw Down Plug-in Connector
Input
12V DC 1.5A – Connect to included power supply.
Power
Cable Use with included cable tie to secure power
Lance supply connection.
1 of 2
For Product Info
See RS-232 Pinouts.
IR Wiring for important
for pinouts. for pinouts.
