- Page 1 Savant® SmartControl 14 Controller SSC-0014 Deployment Guide Document Number: 009-1272-01 Document Date: March 2016 Document Supports: da Vinci 7.0 45 Perseverance Way, Hyannis, MA 02601 Copyright © 2016 Savant Systems, LLC Savant.com | 508.683.2500...
-
Page 2: Table Of Contents
..........................Making Connections ........................RacePoint Blueprint® Configuration ............Upload Configuration ..................Additional Documentation ................Appendix A: Document Revision History ............Network Requirements ..................Important Notice ..................... SmartControl 14 Controller Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1272-01 | 160308... -
Page 3: Introduction
....................Unique ID (UID) of the controller ......................... (located on the bottom of the unit) Savant Host (Smart or Pro Host) licensed and running da Vinci 7.0 or higher ......Savant Development Environment (SDE) MacBook® ................(with RacePoint Blueprint® da Vinci 7.0 or higher installed) Ethernet network meeting Savant requirements .................. -
Page 4: Deployment Steps Checklist
2. Deployment Steps Checklist Follow these steps to successfully deploy the SmartControl 14 (SSC-0014) controller. This page can be used as a checklist to record which steps have been completed. Review the SSC-0014 Connections and Controls ................SmartControl 14 Overview Mount Controller ............................ -

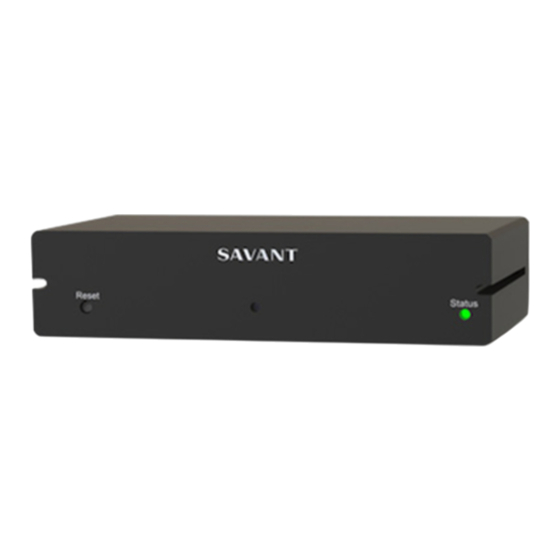

Page 5: Smartcontrol 14 Overview
3. SmartControl 14 Overview Box Contents and Specifications Refer to the Quick Reference Guide for this product located on the Savant Customer Community for Box Contents and Specifications Front Panel Press and hold for 5 seconds while powered On to clear network Reset Button settings. -
Page 6: Rear Panel
6-7: 6-pin Screw Down Plug-in Connector Input Power 12V DC 1.6A - Connect to included power supply. Cable Lance Use with included cable tie to secure power supply connection. SmartControl 14 Controller Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1272-01 | 160308... -
Page 7: Installation
When mounting in a rack or cabinet, the controller should be set on a solid, flat, level surface. The next step is to connect the required ports. Refer to the Wiring and Connections section below. SmartControl 14 Controller Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1272-01 | 160308... -
Page 8: Wiring And Connections
GPIO Wiring General Purpose Input/Outputs (GPIO) are binary I/O ports used on Savant® controllers to trigger an action within the system. Events can control a device, such as turning on an amplifier (output) or detecting a state change for a device (input) to perform a workflow. -
Page 9: Relay Wiring
Relays 1/2/3 9-pin Screw Down Plug-in Connector Relays 4/5 6-pin Screw Down Plug-in Connector Relays 6/7 6-pin Screw Down Plug-in Connector SmartControl 14 Controller Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1272-01 | 160308... -
Page 10: Making Connections
Repeat for each wire till all wires are installed in that connector. Repeat steps above for all connectors as required. Plug terminal blocks back into rear of the controller. Reapply power. SmartControl 14 Controller Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1272-01 | 160308... -
Page 11: Racepoint Blueprint® Configuration
View > Show Inspector Enter the SmartControl 14 Unique ID (UID) for the SSC-0014 being used in the system. In order to be recognized by the Host, the UID located on the bottom of the SmartControl 14 is required within Blueprint. -
Page 12: Upload Configuration
The System Monitor application will automatically open as shown below. Verify the path to the configuration file is correct. Select Upload when satisfied. The configuration will now upload to the host. Once uploaded, the Savant Pro or TrueControl II App can now be opened and connected to the host SmartControl 14 Controller Deployment Guide Copyright ©... -
Page 13: Additional Documentation
8. Additional Documentation Additional documentation is available on the Savant Customer Community. • SmartControl 14 Smart Controller (SSC-0014) QRG - 009-1256-xx • Relay and General Purpose Input/Output Profiles Application Note - 009-0482-xx • Savant Controllers Family video in the Savant University pages SmartControl 14 Controller Deployment Guide Copyright ©... -
Page 14: Appendix A: Document Revision History
Updated Power Supply specifications Rear Panel • Added Upload Configuration section • Updated RacePoint Blueprint Configuration section 009-1272-00 - November 2014 Section Update Initial release of this Deployment Guide SmartControl 14 Controller Deployment Guide Copyright © 2016 Savant Systems, LLC 009-1272-01 | 160308... -
Page 15: Network Requirements
Connect all Savant devices to the same local area network (LAN) or subnet as the host. Savant recommends not implementing any type of traffic or packet shaping in your network topology for the Savant devices as this may interfere with performance. -
Page 16: Important Notice
Savant Systems, LLC shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.
