SmartLighting 18 Controller with PoE
Quick Reference Guide
The Savant® SmartLighting 18 with PoE (SSL-P018) Quick Reference
Guide provides all the steps necessary to operate the SSL-P018. The
SSL-P018 supports up to 256 keypads with up to eight SKL-4000
units. The SSL-P018 supports Power over Ethernet (PoE) using the
PoE IEEE 802.3af standard.
Box Contents
(1) SmartLighting 18 Controller with PoE (SSL-P018-00)
(2) 9-pin Screw Down Plug-in Connectors (028-9353-xx)
(4) Flat Phillips Screws - M3x6 mm (039-0017-xx)
(2) Side Mount Brackets - pair (071-0628-xx)
Quick Reference Guide (this document)
Specifications
Environmental
Environmental
Temperature
32° to 104° F (0° to 40° C)
10% to 80% Relative Humidity (non-
Humidity
condensing)
2 cubic feet per minute (CFM)
Cooling
recommended.
Maximum BTU
41 BTU/hr
Dimensions and Weight
Dimensions and Weight
Height
1.52 in (3.86 cm)
Width
7.99 in (20.29 cm)
Depth
7.60 in (19.30 cm)
Weight
6 lb (2.72 kg)
Rack Space
1U
Power
Power
Power over Ethernet
IEEE 802.3af
(PoE)
Power Supply
12V DC 1.25A
(Optional)
120-240V AC 50/60 Hz
Maximum Power
12 watts
Regulatory
Regulatory
Safety and Emissions
FCC Part 15 | CE Mark | C-Tick
RoHS
Compliant
Minimum Supported Release
Minimum Supported Release
Savant OS
da Vinci 5.0.2
SSL-P018-00 | 009-0667-03 | 150512
SSL-P018-00 | 009-0667-03 | 150512
Copyright © 2015 Savant Systems, LLC

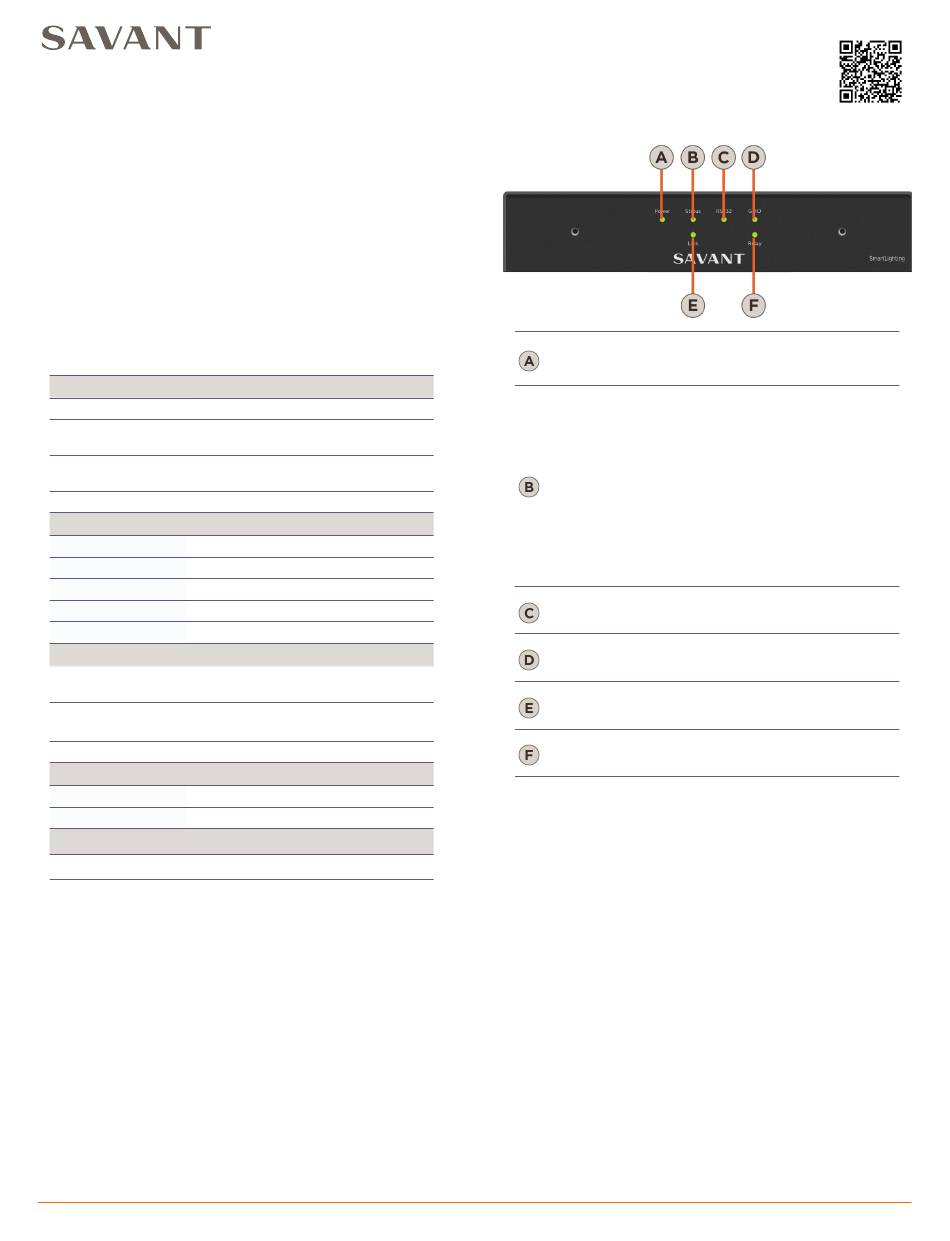

Front Panel
Power LED
Status LED
GPIO LED
Relay LED
1
of 3
Green: SSL-P018 has adequate power and is
operating normally.
Off: SSL-P018 is not receiving power.
Green: SSL-P018 is operating normally.
Green Flashing: Controller is starting.
Off: Unit is rebooting
Red: Firmware update has failed and unit will
be rebooted.
Red Flashing: No IP Address/Connecting to
Network.
Amber: Firmware update in process.
Amber Flashing: Controller has a link-local IP
Address. This applies to controllers that are
not connected to an active router and may be
connected directly to a computer.
Green: RS-232/422 serial port activity.
Off: No RS-232/422 serial port activity.
Green: GPIO serial port activity.
Off: No GPIO serial port activity.
Green: Ethernet port activity.
Off: No Ethernet port activity.
Green: Relay port activity.
Off: No Relay port activity.
