Savant SmartControl Quick Reference Manual

Savant® SmartControl RS485 - Wired Shade Controller with 2 RS485
Quick Reference Guide
Box Contents

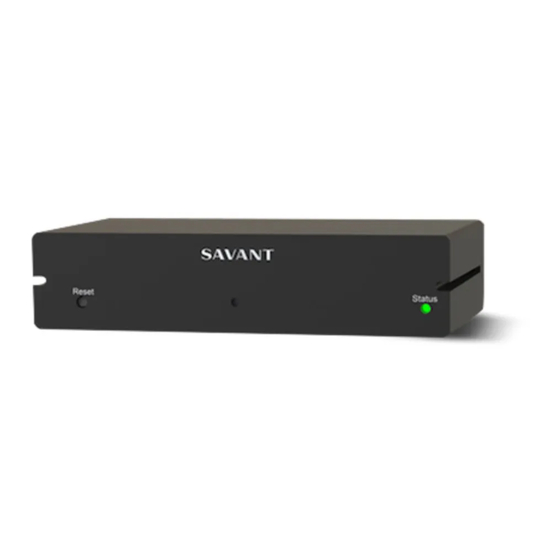

(1) Wired Shade Controller (SSC-002485-00)
(1) Installation Kit (075-0177-xx)
(1) Mounting Plate (074-0577-xx)
(2) 6-pin Control Connector (028-9352-xx)
(2) 9-pin Control Connector (028-9353-xx)
(1) 12V DC 1.5A Power Supply (025-0166-xx)
(1) Cable Tie (014-0071-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 80% Relative Humidity (non-condensing)
Dimensions and Weight
Height 1.40 in (35.6 mm)
Width 6.00 in (152.4 mm)
Depth 3.20 in (81.3 mm)
Net: 0.50 lb (0.22 kg)
Weight
Shipping: 1.50 lb (0.68 kg)
Power
Input Power 12V DC 1.5A
Max Power 18 watts
Regulatory
FCC Part 15
Safety and
Emissions
RoHS Compliant
Network Requirements
Savant requires the use of business class/commercial grade network
equipment throughout the network to ensure the reliability of
communication between devices. These higher quality components
also allow for more accurate troubleshooting when needed.
Connect all Savant devices to the same local area network (LAN) or
subnet as the Host. Savant recommends not implementing any type
of traffic or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
Network Configuration
To ensure that the IP Address will not change due to a power outage,
Savant recommends using DHCP reservation within the router. By
using this method IP Addresses for all devices can be managed from a
single UI, avoiding the need to access devices individually.
NOTE: Setting DHCP reservation varies from router to router. Refer to
the documentation for the router to configure DHCP reservation.
SSC-002485 | 009-1554-00 | 170811
Copyright 2017 Savant Systems, LLC
CE C-Tick
1
Front Panel
Reset
A
Press and hold for five seconds while powered
A
Reset On to clear the network settings. The Status LED
blinks rapidly when reset is complete.
Off: No Power
Solid On: Connected/Communicating with the
Savant Host.
Blinks Once: No IP Address.
C
.5s
Blinks Twice: Waiting for the Host Connection.
B
Status LED
.5s.
Blinks Three Times: Host Connection Lost.
.5s.
Short Off Blink: Firmware is Updating.
Additional Documentation
Additional Documentation is available on the Savant Customer
Community.
– Shade Provisioning and Programing Guide (009-1525-xx)
– Shade Wiring and Mounting Guide (009-1532-xx)
– Shade Fabric Install Guide (009-1529-xx)
of 2
For Product Info
Repeat
1s
REPEAT
.5s 5s 1s
.
Repeat
.5s .5 5s .5s .5 s 1 s
REPEAT
1.5s .5s
