Savant SmartControl 14 Quick Reference Manual

Savant® SmartControl 14
Quick Reference Guide
Box Contents

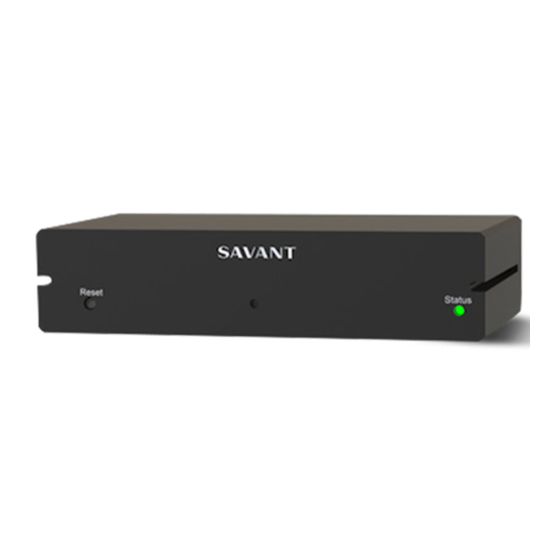

(1) SmartControl 14 (SSC-0014-00)
(1) Installation Kit SmartControl 14 (075-0177-xx)
(1) Mounting Plate (074-0577-xx)
(2) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(2) 9-pin Screw Down Plug-in Connector (028-9353-xx)
(1) 12V DC 1.6A Power Supply (025-0166-xx)
(1) Cable Tie (014-0071-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 80% RH (non-condensing)
Dimensions and Weight Dimensions and Weight
Height 1.40 in (3.5 cm)
Width 6.00 in (15.2 cm)
Depth 3.20 in (8.1 cm)
Net: 0.50 lb (0.22 kg)
Weight Weight
Shipping: 1.50 lb (0.68 kg)
Power Power
Input Power (Max) 12V DC 1.6A
Max Power 18 Watts
Compliance Compliance
Safety and
FCC Part 15 | CE Mark | C-Tick
Emissions
RoHS Compliant
Minimum Supported Release: Minimum Supported Release:
Savant OS da Vinci 7.0
Network Requirements
Savant requires the use of business class/commercial grade network
equipment throughout the network to ensure the reliability of
communication between devices. These higher quality components
also allow for more accurate troubleshooting when needed.
Connect all Savant devices to the same local area network (LAN) or
subnet as the host. Savant recommends not implementing any type
of traffic or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
Network Configuration
To ensure that the IP Address will not change due to a power outage,
a static IP Address or DHCP reservation should be configured.
Savant recommends using DHCP reservation within the router. By
using this method, static IP Addresses for all devices can be
managed from a single UI avoiding the need to access devices
individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
Network Changes
Savant recommends performing one of the following steps to refresh
the IP connection after connecting to a new network, changing
routers, or if the IP Address range is changed in the current router.
This will reset any IP connection and ensure that the host is
communicating with the network correctly.
Cycle Power
•
Disconnect the controller from the AC power source for 15
seconds and then reconnect.
Hot Plug the Ethernet (LAN) Connection
•
Disconnect the Ethernet (LAN) connection from the controller for
15 seconds and then reconnect.
SSC-0014-00 | 009-1256-02 | 160308
Copyright © 2016 Savant Systems, LLC

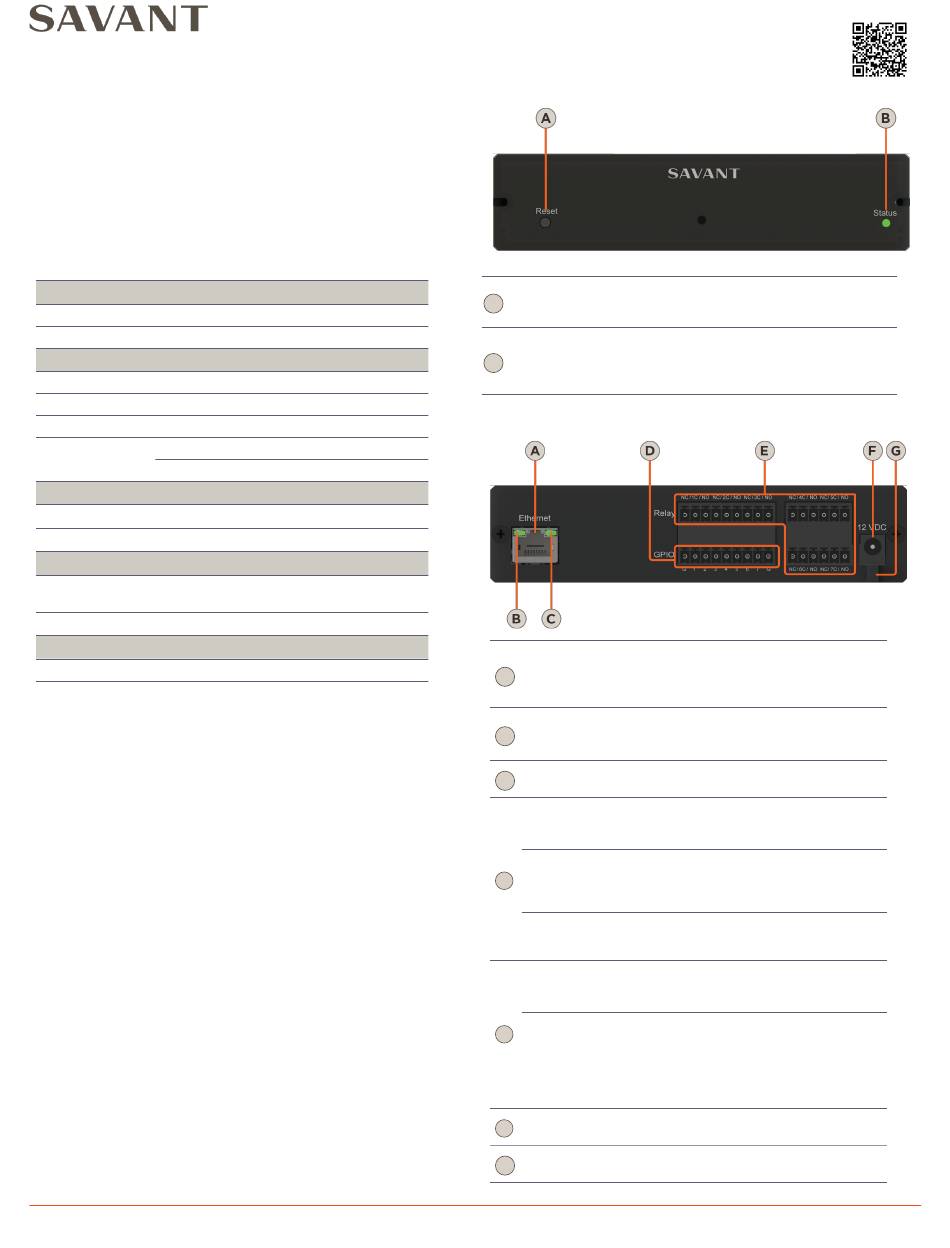

Front Panel
Press and hold for 5 seconds while powered On to
A Reset Button clear network settings. Status LED will blink rapidly
when reset is complete.
Blinks Once: No IP Address
Blinks Twice: Waiting for Host Connection
B Status LED
Blinks Three Times: Host Connection Lost
Solid: Connected to Host
Rear Panel
10/100 Base-T auto-negotiating port with Link/
Activity
A Ethernet
LEDs: 8-pin RJ-45 female.
See items B and C for LED functionality.
Off: Ethernet link is not established.
B Link LED Green Solid: Ethernet link is established.
Green Blinking: Ethernet activity is occurring.
Data Rate Off: 10 Mbps data rate
C
LED Green: 100 Mbps data rate
GPIO (General Purpose Input and Output Ports) GPIO (General Purpose Input and Output Ports)
9-pin Screw Down Plug-in Connector. See 9-pin Screw Down Plug-in Connector. See
Connections Connections for pinouts. for pinouts.
When configured as an input, the processor will
look for a low (<0.8V DC) or high (>2.4V DC )
D
GPIO Input
state.
Minimum 0V DC / Maximum 12V DC
When configured as an output, the port
GPIO Output provides a binary output of 0-12V DC 150mA
max.
Normally Open / Normally Closed - Relays Normally Open / Normally Closed - Relays
6-pin Screw Down Plug-in Connector (Right 3 Pins) 6-pin Screw Down Plug-in Connector (Right 3 Pins)
See See Relay Wiring Relay Wiring
Dry contacts (open/closed) to control devices
E
requiring basic on/off operation. DC Voltage
Max: 30V DC 1A
Relay
1-3: 9-pin Screw Down Plug-in Connector
4-5: 6-pin Screw Down Plug-in Connector
6-7: 6-pin Screw Down Plug-in Connector
12V DC 1.6A - Connect to included power
F Input Power
supply.
Use with included cable tie to secure power
G
Cable Lance
supply connection.
1 of 2
GPIO Wiring and GPIO Wiring and
for pinouts. for pinouts.
