Savant S2 Deployment Manual

Rack mountable hosts
Hide thumbs Also See for S2:
Table of Contents

Advertisement

Quick Links

Savant® Rack Mountable Hosts Deployment Guide
Document Number:
009-1914-00
Document Date:
December 2019
Document Supports:
da Vinci 9.1.3 and higher
This document will guide the installer through the process of installing, configuring, and adding a Savant SHR-S2/2000 Host to a RacePoint Blueprint™
configuration.
–

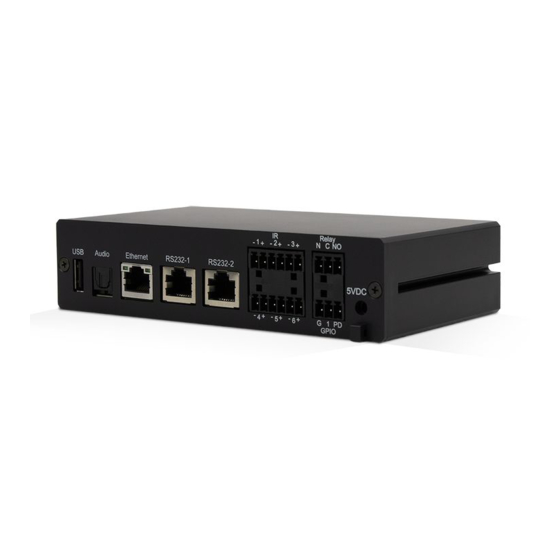

S2 Host Rack Mountable [SHR-S2-xx]
–
Smart Host Rack Mountable [SHR-2000-xx]
Copyright © 2019 Savant Systems, LLC
- 1 -
45 Perseverance Way, Hyannis, MA 02601
Savant.com
| 508.683.2500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Savant S2

Summary of Contents for Savant S2

  • Page 1 Document Date: December 2019 Document Supports: da Vinci 9.1.3 and higher This document will guide the installer through the process of installing, configuring, and adding a Savant SHR-S2/2000 Host to a RacePoint Blueprint™ configuration. – S2 Host Rack Mountable [SHR-S2-xx] –...

  • Page 2: Table Of Contents

    8.1. Retrieving Logs ......................19 Wired Connection .....................6 8.2. Stopping and Starting the Host ................ 20 Wireless Connection (SHR-S2 only) ..............6 8.3. Uploading Configuration to the Host .............. 21 4.3. Audio Output ......................6 8.4. Copying the Configuration File to the SDE ........... 21 4.4.
  • Page 3 Important Safety Information - Read First Safety Statements Before installing, configuring, or operating any equipment, Savant recommends All safety instructions below should be read, understood, and applied under all that each dealer, integrator, installer, etc. access and read all relevant technical relevant circumstances when working with this equipment.

  • Page 4: Before You Begin

    Vinci 9.2 2. Deployment Steps To successfully deploy a Savant Rack Mountable Host, follow the steps listed below. This page can be used as a checklist to track progress as items are completed. Review product specifications and connection details ...............................

  • Page 5: Installation

    3. Installation The Savant Host can be installed in a standard National Electrical Manufacturer’s Association (NEMA) rack, or on a solid, flat, level surface such as a table, cabinet, or shelf. The location should be dry, well ventilated, and out of direct sunlight.

  • Page 6: Wiring And Connections

    Wireless Connection (SHR-S2 only) The S2 Host contains a wireless radio. This device can use used with a wireless connection. Provisioning can be done with the Savant SmartConnect App. For more information see the SmartConnect Software Reference Guide on the Savant Customer Community.

  • Page 7: Control Connections

    4.4. Control Connections The Savant Host control connections send data to control a device and receive data to display current status on the user interfaces or trigger a system action. Each port type may support multiple protocols that are determined by the logical connection within Blueprint.

  • Page 8: Ir Wiring

    Relay ports are used when a device is controlled via a normally open (NO) or normally closed (NC) relay. Pinout Pin 1: NC (Normally Closed) Pin 2: C (Common) Pin 3: NO (Normally Open) Savant S2/2000 Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1914-00 | 191231...

  • Page 9: Gpio Wiring

    GPIO Wiring General Purpose Input/Outputs (GPIO) are binary I/O ports used on Savant controllers to trigger an action within the system. Events can control a device, such as turning on an amplifier (output) or detecting a state change for a device (input) to perform a workflow. Pin 1 is used for input or output depending on the Component Profile used within the Blueprint configuration.

  • Page 10: Blueprint Configuration

    Optional Devices – IR Controllable Devices – Serial (RS-232) Controllable Devices – Contact Closure (Relay) Controllable Devices – Voltage Trigger (GPIO) Controllable Devices – IP (Ethernet) Controllable Devices Savant S2/2000 Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1914-00 | 191231...

  • Page 11: Replacing A Host In A Configuration

    5.1. Replacing a Host in a Configuration By default, a Savant Pro Host is added to any new RacePoint Blueprint configuration file. When utilizing one of the other varieties of Savant Host, including the SHR-S2, or SHR-2000, the existing Host Profile must be replaced with the one matching the device used on site. The example below shows how to configure the SHR-2000 as the Savant System Host.

  • Page 12: Adding A Host To The Layout Window

    Enter a unique Device Name and the Savant UID for the Host. Ethernet (Ethernet) The Savant UID is used to identify the Host on the network so that a configuration may be uploaded. Select the Host in the Layout Window and open the Inspector by navigating to: View >...

  • Page 13: Adding A Doorbell Or Door Station

    The SHR-S2 AND SHR-2000 Hosts support the Audio Interrupt Service (AIS) which is used to interrupt the currently playing audio with a doorbell chime alerting the user that a doorbell has been pressed. This service requires a connection between the Smart Host and a Savant Audio Matrix or 3rd party audio matrix.

  • Page 14: Host Configuration

    6. Host Configuration The Savant SHR-S2 and SHR-2000 Hosts do not offer a graphical user interface (GUI) for configuration. The Terminal command line interface is used to communicate with and configure the Host via Secure Shell (SSH) commands when needed. The section below outlines a number of commonly used SSH commands and their function as it relates to Host configuration.

  • Page 15: Querying And Configuring Dns And Ip Address

    Select the appropriate da Vinci release for the Host and click Activate. Open System Monitor by selecting it from the right side menu. In an open System Scanner window, select the Savant Host. Connect Share Screen Mount Terminal View Logs Get Logs Get Config...
  • Page 16 Address from the list: Substitute x.x.x.x with the appropriate addresses. setDNSServer Example of Terminal Window: Query Current DNS > setDNSServer Server Information: Current DNS Servers: servername 8.8.8.8 servername 8.8.4.4 Savant S2/2000 Deployment Guide Copyright © 2019 Savant Systems, LLC 009-1914-00 | 191231...

  • Page 17: Running Scripts

    IMPORTANT! S2/2000 Hosts can only run scripts containing Savant Commands, located under Actions > Other within Automator. Scripts utilizing Applescript or other Mac commands should never be copied to S2/2000 Hosts, as they are not supported, will not function, and may render the system unresponsive.

  • Page 18: Executing Scripts On The Host

    /usr/local/bin/sclibridge This is different from the location of the utility for Savant Pro, Super Pro, or any other MacOS-based Host, and should be kept in mind when writing or testing any such scripts or workflows. A standard UNIX utility can be used to determine the platform any script is running on, and adjust accordingly. See example below for reference: #!/usr/bin/perl -w $osType = `uname`;...

  • Page 19: Troubleshooting

    When troubleshooting undesirable behavior in a deployed Savant system, retrieving logs from the Host can be particularly useful, especially in cases where the problem can be reproduced and an accurate timestamp can be provided to Savant Support. Host logging contains a record of the actions, messages, service requests, state changes, and more processed by the Host.

  • Page 20: Stopping And Starting The Host

    Terminal command line session. Restart Runtime via System Monitor Process Tab Launch the Savant Application Manager (SAM). Select the appropriate da Vinci release for the Host and click Activate. Open System Monitor by selecting it in the right side menu.

  • Page 21: Uploading Configuration To The Host

    8.3. Uploading Configuration to the Host To upload a Blueprint configuration to a Savant Host, the recommended methods are to use either the Upload to Master button from the main Blueprint taskbar, or the Upload button in System Monitor. If neither of these methods are available for any reason, configuration files can be uploaded to the Host via the command line following the steps listed below.

  • Page 22: Appendix A: Network Requirements

    Managing IP Addresses To ensure that IP addresses will not change due to a power outage, a static IP Address or DHCP reservation should be configured for the Savant Host and all other Savant or Savant-controlled devices. Savant recommends using DHCP reservation within the router. By using this method, static IP addresses for all devices can be managed from a single UI, avoiding the need to access devices individually.

  • Page 23: Appendix B: Ups Recommendations

    Appendix B: UPS Recommendations Savant does not recommend any brand or model UPS, however there are a couple of factors that should be considered. It is important that the UPS does not only work during complete power loss but protects devices and their functionality during events like surges and brownouts. It is not uncommon for a residence or small business to see variations in power service that do not result in a complete black-out.
  • Page 24 Savant Systems, LLC. shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.
