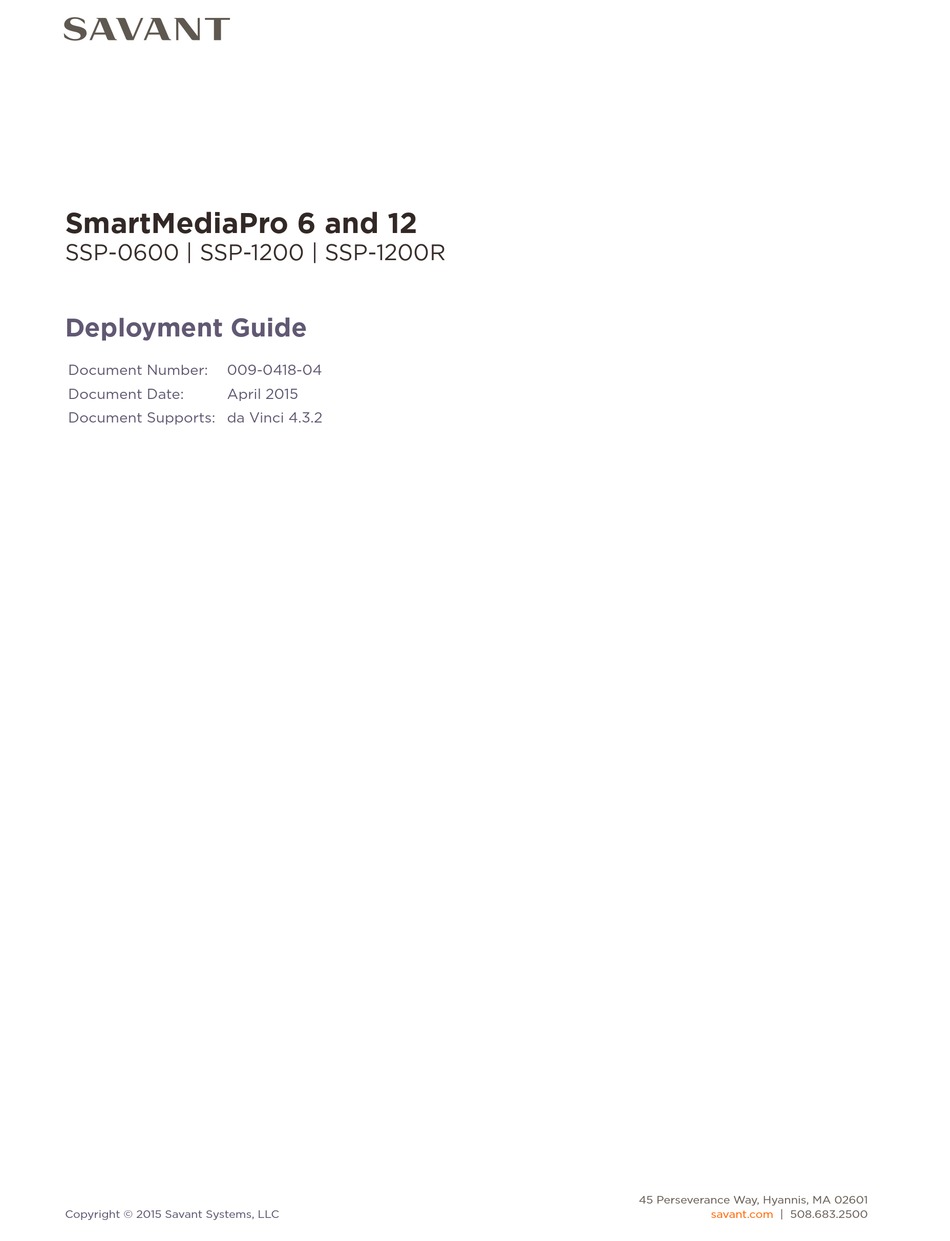

- Page 1 SmartMediaPro 6 and 12 SSP-0600 | SSP-1200 | SSP-1200R Deployment Guide Document Number: 009-0418-04 Document Date: April 2015 Document Supports: da Vinci 4.3.2 45 Perseverance Way, Hyannis, MA 02601 Copyright © 2015 Savant Systems, LLC savant.com | 508.683.2500...
-
Page 2: Table Of Contents
Checking and Replacing the Fuse ......................Fan Tray and Power Supply Removal ....................... Additional Information Appendix A: Network Requirements Appendix B: Document Revision History SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428 of 32... -
Page 3: Important Safety Information - Read First
Weight Injury Prevention WEIGHT INJURY! Installing some of the Savant equipment requires two installers to ensure safe handling during installation. Failure to use two installers may result in injury. - Page 4 15. To completely disconnect this equipment from the AC mains, disconnect the power supply cord plug from the AC receptacle. SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428...
-
Page 5: Introduction
..............Unique ID (UID) and MAC Address of the SmartMediaPro Controller ..............Located on the bottom of the unit. Savant Host (Pro Host) licensed and running da Vinci 4.3.2 or higher ............... Savant Development Environment (SDE/MacBook®) ....................With RacePoint Blueprint da Vinci 4.3.2 or higher installed. -
Page 6: Deployment Steps
Input and Output Module Installation Connect the SmartMediaPro chassis to other devices ................Installation Add the chassis into a RacePoint Blueprint® configuration ..............Blueprint Configuration SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428 6 of 32... -

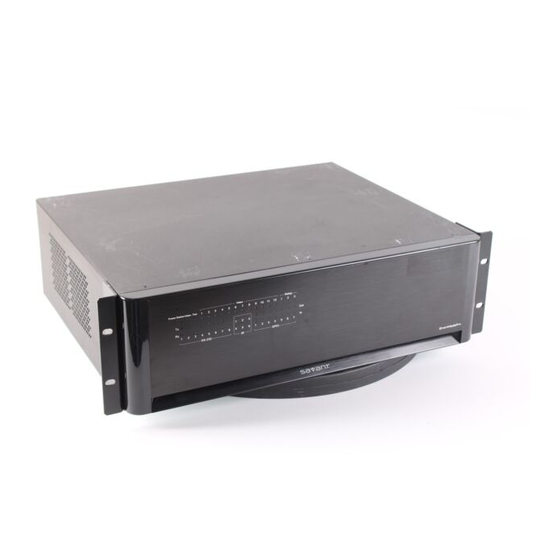

Page 7: Smartmediapro Controller Overview
FCC Part 15 | CE Mark | C-Tick | S-Mark Emissions RoHS Compliant Minimum Supported Release Minimum Supported Release da Vinci 4.3.2 Savant OS SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428 of 32... - Page 8 Green Indicates relay activity on the associated ports on the rear of the unit. RS-232/422/485, IR, and GPIO Control Status LEDs Green Indicates activity on the associated ports on the rear of the unit. SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428 8 of 32...
- Page 9 I (On): Powers On the controller. switch) O (Off): Powers Off the controller. Power 100 – 240V AC 3A 50/60 Hz Input SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428 9 of 32...
-
Page 10: Ssp-1200 | Ssp-1200R Overview
FCC Part 15 | CE Mark | C-Tick | S-Mark RoHS Compliant Compliant Minimum Supported Release Minimum Supported Release Minimum Supported Release Savant OS da Vinci 4.3.2 da Vinci 4.3.2 SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428 10 of 32... - Page 11 Control Status RS-232/422/485, IR, Relay, and GPIO LEDs Green Indicates activity on the associated ports on the rear of the unit. SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428 11 of 32...
- Page 12 I (On): Powers On the controller. I/O (power switch) O (Off): Powers Off the controller. Power Input 100 – 240V AC 3A 50/60 Hz SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428 12 of 32...
-
Page 13: Input And Output Module Installation
• Connect the clip end of the ground strap to a threaded grounding stud on the chassis. • When returning a replaced module to Savant, place the module in the ESD approved clamshell package in which it was originally shipped in or a static shielding bag. -
Page 14: Module Removal
2. This will ensure that proper airflow through the chassis is retained as well as preventing dust and debris from entering the chassis. SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428... -
Page 15: Installation
Each port type can support multiple protocols that are determined by the logical connection within Blueprint. Savant recommends planning control connections and protocols to be used prior to building any cables and connecting equipment. This will ensure that devices will respond to commands and will not be damaged by an incorrect cable configuration. - Page 16 RS-422/RS-485 Wiring RJ-45 to DB9 Adapters Savant offers RJ-45 to DB9 adapters in a variety of configurations that can be used for RS-232/422/485 control. Refer to the RS-232 Conversion to DB9 and RS-422/485 Pinout Application Note located on the Savant Community for more information on RJ-45 to DB9 adapters.
- Page 17 IR Pinout GPIO Wiring General Purpose Input/Outputs (GPIO) are binary I/O ports used on Savant controllers to trigger an action within the system. Events can control a device, such as turning on an amplifier (output) or detecting a state change for a device (input) to perform a workflow. Pins 2-8 are used for input or output depending on configuration.
-
Page 18: Host Hdmi Connection
The SmartMediaPro Matrix contains two Host HDMI inputs that are used for streaming iTunes from a Pro Host. Connection to the chassis varies based on the host model being used. Refer to the Savant Pro Host (SVR-4500x, SVR-5000S) Deployment Guide located on the Savant Community for connection guidelines. -
Page 19: Ac Power Connection
Power Management Recommendations Savant recommends a pure sine wave uninterruptible power supply (UPS) with the ability to shut down the Savant Host before the battery runs out of power. Never remove power from the Savant Host before shutting it down. -
Page 20: Blueprint Configuration
• Sources of various media types (SavantMedia Server, Apple TV, etc.) • Amplifier for audio distribution • HDTV Displays • Speakers • Savant Host (Pro Host) Basic Blueprint Layout SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428 20 of 32... -
Page 21: Adding The Smartmediapro Controller
View > Show Inspector from the tool bar. icon on the Menu Bar. Enter the UID for the SmartMediaPro chassis being used in the system. SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428... -
Page 22: Adding Input And Output Modules
Drag and drop the appropriate model cards into an open Input or Output slot. Repeat step 3 for all Input and Output modules required by the configuration. SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428... -
Page 23: Removing Input And Output Modules
• Using the Mini Display Port on the host requires the use of a Mini Display Port to HDMI adapter (not included). Refer to the iTunes Media Server Programming Guide located on the Savant Community for more information on configuring iTunes. -
Page 24: Connecting Input And Output (I/O) Modules
The connections on I/O modules varies based on the type of module being used. Connect the modules to the appropriate devices following the information provided in the Quick Reference Guide for the module. SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428... -
Page 25: Chassis Maintenance
• If a self-assigned IP Address is set, the status LED will blink Amber. Use rpmembscanner to confirm that an IP Address has been received or to set a static IP Address. SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC... -
Page 26: Checking And Replacing The Fuse
If any resistance is encountered during seating the cartridge, DO NOT apply more pressure. Stop pressing on the cartridge, remove it, verify the orientation, and repeat step. SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428... -
Page 27: Fan Tray And Power Supply Removal
Fan Tray Removal (SSP-1200) The SSP-1200 fan tray can be accessed by removing the front cover of the SSP-1200. Place a finger above the Savant logo at the bottom and gently pull the faceplate outward. Gently pull the fan tray out. - Page 28 Fan Tray and Power Supply Removal (SSP-1200R) The SSP-1200R fan and power supplies can be accessed by removing the front cover of the SSP-1200R. Place a finger above the Savant logo at the bottom and gently pull the faceplate outward.
-
Page 29: Additional Information
Additional Information Refer to the following documents located on the Savant Community for additional information. • SmartMediaPro 12 (SSP-1200-xx) Quick Reference Guide • SmartMedia Pro 6 (SSP-0600-xx) Quick Reference Guide • SmartMediaPro 12 with Redundant Power Supplies (SSP-1200R-xx) Quick Reference Guide SmartMediaPro 6 and 12 Deployment Guide Copyright ©... -
Page 30: Appendix A: Network Requirements
Device Network Connections Connect all Savant devices to the same local area network (LAN) or subnet as the host. Savant recommends not implementing any type of traffic or packet shaping in your network topology for the Savant devices as this may interfere with performance. -
Page 31: Appendix B: Document Revision History
Appendix B: Document Revision History 009-0418-04 | April 2015 Section Update Content restructured and enhanced for a clearer explanation of deployment. SmartMediaPro 6 and 12 Deployment Guide Copyright © 2015 Savant Systems, LLC 009-0418-04 | 150428 31 of 32... - Page 32 • To contact Savant Support, access the Savant Community and enter a support Case ticket. • To contact Savant Sales, visit Savant.com and select Contact Us to locate a local sales representative in your area. SmartMediaPro 6 and 12 Deployment Guide Copyright ©...
