Savant SmartControl Quick Reference Manual

Savant® SmartControl RS485 – Wi-Fi Shade Controller with 1 RS485
Quick Reference Guide
Box Contents
(1) SmartControl RS485 Wi-Fi Shade Controller (SSC-W485-00)
(1) Installation Kit (075-0198-xx)
(1) Mounting Plate (074-0569-xx)
(1) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(1) 4-pin Screw Down Plug-in Connector (028-9395-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental
32° to 104° F (0° to 40°C)
Temperature
Humidity 10% to 90% (non-condensing)
Dimensions and Weight (Product)
Height 0.64 in (1.62 cm)
Width 2.70 in (6.85 cm)
Depth 2.67 in (6.78 cm)
Net: 0.25 lb (0.11 kg)
Weight
Shipping: 1.50 lb (0.68 kg)
Power
Input Power 24V DC 200mA
Max Power 6 watts
Standards
Wi-Fi (802.11 b/g/n 2.4 GHz)
Wireless
IMPORTANT! 802.11r (fast roaming) is
not supported.
Security WPA™, WPA2™, WPA/WPA2™, WEP
Regulatory
Safety and
FCC Part 15 | CE Mark | C-Tick
Emissions
Contains FCC ID: TLZ-CU277
Contains IC: 6100A-CU277
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 8.5
Network Requirements
Savant requires the use of a wireless network that is configured to
make use of at least one of the supported wireless Standards listed
in the Specifications Table.
Connect all Savant devices to the same local area network (LAN) or
subnet as the Host. Savant recommends not implementing any type
of traffic or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
Network Configuration
To ensure that the IP Address will not change due to a power
outage, a static IP Address or DHCP reservation should be
configured. Savant recommends using DHCP reservation within the
router. By using this method, static IP Addresses for all devices can
be managed from a single UI avoiding the need to access devices
individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
SSC-W485-00 | 009-1553-01 | 170825
Copyright © 2017 Savant Systems, LLC

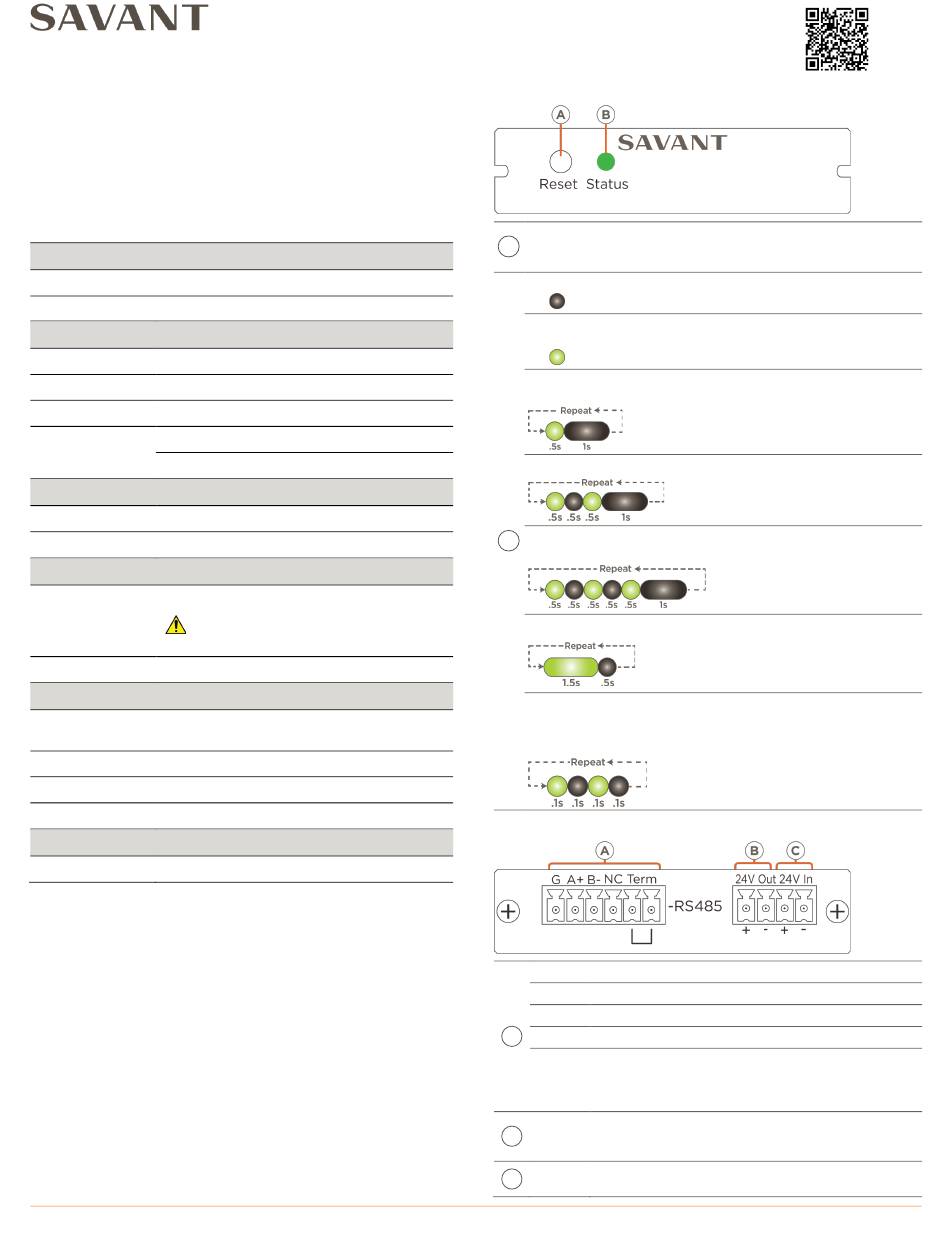

Front Panel
Press and hold for five seconds while powered On to clear the
A
network settings. The Status LED blinks rapidly when reset is
complete.
Off: No power applied.
On Solid: Provisioned to the local network and communicating with
the Savant Pro System Host. Normal operation mode.
Blinks Once: In Provisioning Mode. Ready to be added to the local
network.
Blinks Twice: Establishing connection with the local network.
B
Blinks Three Times: Connected to the local network and trying to
connect to the Savant Pro System Host.
Short Off Blink: Firmware is updating.
Rapid Blink: The reset button was held down for at least five
seconds and the SSC-W485 is performing a factory reset. After
reset, all network settings are cleared and the factory defaults are
restored.
Rear Panel
G Common or reference port for the RS-485 signal.
A+ Data+ signaling line for the RS-485 signal.
B- Data- signaling line for the RS-485 signal.
A
NC No Connection
Add a jumper wire to connect a terminating resistor
between the A+ and B- ports. The terminating resistor
Term
reduces problems that can occur when long cable
lengths are used.
24V DC output. Observing polarity, can supply power
B
24V Out to a single shade motor. See the
below for more information.
24V DC input. Observing polarity, connect a 24V DC
C
24V In
source between the + and – ports.
1 of 2
24V Out Port
45 Perseverance Way, Hyannis, MA
Savant.com | 508.683.2500
section
02601
