Savant® SmartControl 2 (SSC-W002G-01)
Quick Reference Guide
Box Contents
(1) SmartControl 2 Controller (SSC-W002G-01)
(1) Installation Kit (075-0174-xx)
(1) Mounting Plate (074-0569-xx)
(1) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(1) 5V DC 1.2A Power Supply (025-0165-xx)
(1) Cable Tie (014-0071-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature
32° to 104° F (0° to 40°C)
Humidity
10% to 90% (non-condensing)
Dimensions and Weight (Product)
Height
0.64 in (1.62 cm)
Width
2.70 in (6.85 cm)
Depth
2.67 in (6.78 cm)
Net: 0.25 lb (0.11 kg)
Weight
Shipping: 1.50 lb (0.68 kg)
Power
Input Power
5V DC 1.2A
Max Power
6 watts
Standards
Wi-Fi (802.11 b/g/n 2.4 GHz)
Wireless
IMPORTANT! 802.11r (fast roaming) is
Security
WPA™, WPA2™, WPA/WPA2™, WEP
Regulatory
Safety and Emissions
FCC Part 15 | CE Mark | C-Tick
Contains FCC ID:
TLZ-CU277
Contains IC:
6100A-CU277
RoHS
Compliant
Minimum Supported Release
Savant OS
da Vinci 8.4
Network Requirements
Savant requires the use of a wireless network that is configured to
make use of at least one of the supported wireless Standards listed
in the Specifications Table.
Connect all Savant devices to the same local area network (LAN) or
subnet as the Host. Savant recommends not implementing any type
of traffic or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
Network Configuration
To ensure that the IP Address will not change due to a power
outage, a static IP Address or DHCP reservation should be
configured. Savant recommends using DHCP reservation within the
router. By using this method, static IP Addresses for all devices can
be managed from a single UI avoiding the need to access devices
individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
SSC-W002G-01 | 009-1505-01 | 171109
Copyright © 2017 Savant Systems, LLC
not supported.

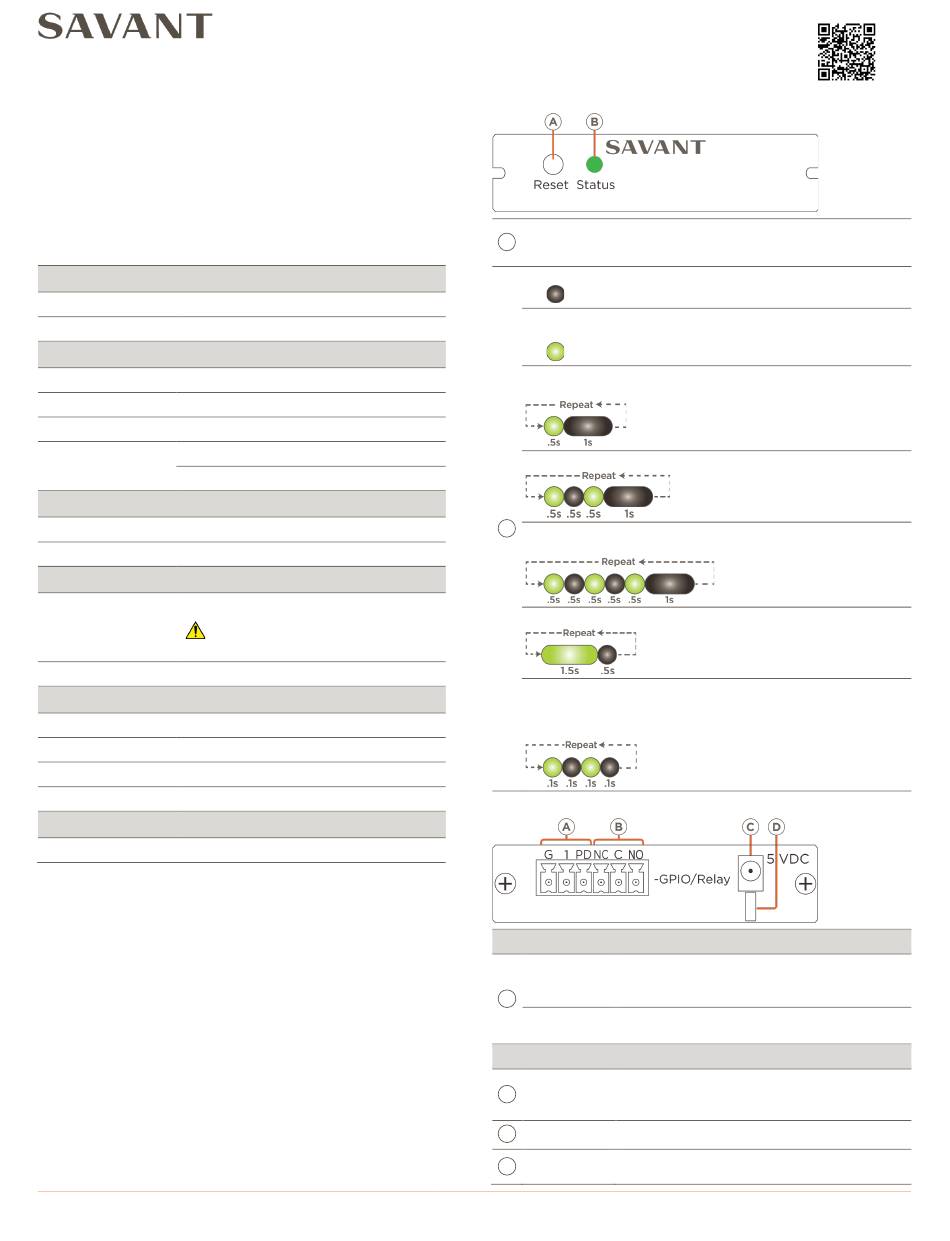

Front Panel
Press and hold for five seconds while powered On to clear the
A
network settings. The Status LED blinks rapidly when reset is
complete.
Off: No Power
On Solid: Provisioned to the local network and communicating with
the Savant System Host.
Blinks Once: In Provisioning Mode. Ready to be added to the local
network.
Blinks Twice: Establishing connection with the local network.
B
Blinks Three Times: Connected to the local network. Is connecting
to the Host.
Short Off Blink: Firmware is updating.
Rapid Blink: The reset button was held down for at least five
seconds and the SSC-W002G is performing a factory reset. After
reset, all network settings are cleared and the factory defaults are
set.
Rear Panel
GPIO (General Purpose Input/Output)
When configured as an input the processor will
look for a low (<0.8V DC) or high (>2.4V DC).
GPIO (Input)
Minimum 0V DC / Maximum 12V DC.
A
When configured as an output, the port provides a
GPIO (Output)
binary output of 0-12V DC 150mA max.
Relay Port (Normally Open/Normally Closed)
Dry contacts (normally open/normally closed) to
B
control devices requiring basic on/off operation.
Relay
Max: 30V DC 1A.
C
Input Power
5V DC 1.2A. Connect to included power supply.
Use with included cable tie to secure power supply
D
Cable Lance
connection.
1
of
2
