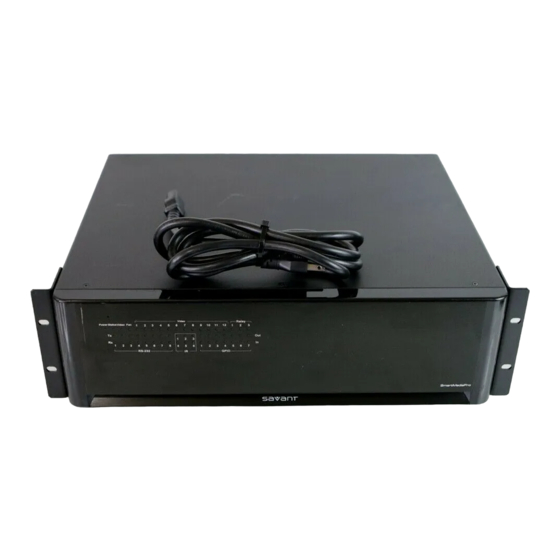

SmartMedia 6 Controller - Quick Reference Guide

Box Contents

(1) SmartMediaPro 6 (SSP-0600-00)
(1) Installation Kit (075-0098-xx)
(2) 9-pin Screw Down Plug-In Connector (028-9353-xx)
(2) 6-pin Screw Down Plug-in Connector (028-9352-xx)
(1) 6 ft Power Cord (064-0079-xx)
(2) Module Removal Tool (071-0268-xx)
(2) Rack Mounting Bracket (071-0638-xx)
(4) M5 x 8 mm Flat Phillips Screw (039-0180-xx)
(1) Quick Reference Guide (this document)

Specifications

Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 80% (non-condensing)
Cooling 25 cubic feet per minute (CFM) recommended.
Note that each chassis has fans pushing 36 CFM.
Max BTU 512 BTU/hr
Noise Normal Operation condition: 52 dB Average
Dimensions and Weight (Product)
Height 5.25 in (13.33 cm)
Width 17.25 in (43.82 cm)
Depth 14.00 in (35.56 cm)
Net: 19.8 lb (8.98 kg)
Weight
Shipping: 26 lb (11.79 kg)
Rack Space 3U
Power
Input Power 100 – 240V AC 3A 50/60Hz
Maximum 200 Watts
Power
Regulatory
Safety and FCC Part 15 | CE Mark | C-Tick | S-Mark
Emissions
ROHs Compliant
Minimum Supported Release
Savant OS da Vinci 4.3.2

Network Requirements

Savant requires the use of business class/commercial grade network
equipment throughout the network to ensure the reliability of
communication between devices. These higher quality components
also allow for more accurate troubleshooting when needed.
Connect all Savant devices to the same local area network (LAN) or
subnet as the Host. Savant recommends not implementing any type
of traffic or packet shaping in your network topology for the Savant
devices as this may interfere with performance.

Network Configuration

To ensure that the IP Address will not change due to a power
outage, a static IP Address or DHCP reservation should be
configured. Savant recommends using DHCP reservation within the
router. By using this method, IP Addresses for all devices can be
managed from a single UI avoiding the need to access devices
individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
Network Changes
If there are any changes made to the network, the IP Address needs
to be refreshed. See the Network Changes
information on this.
SSP-0600-00 | 009-0404-06 | 170117
Copyright © 2017 Savant Systems, LLC
section below for
1 of

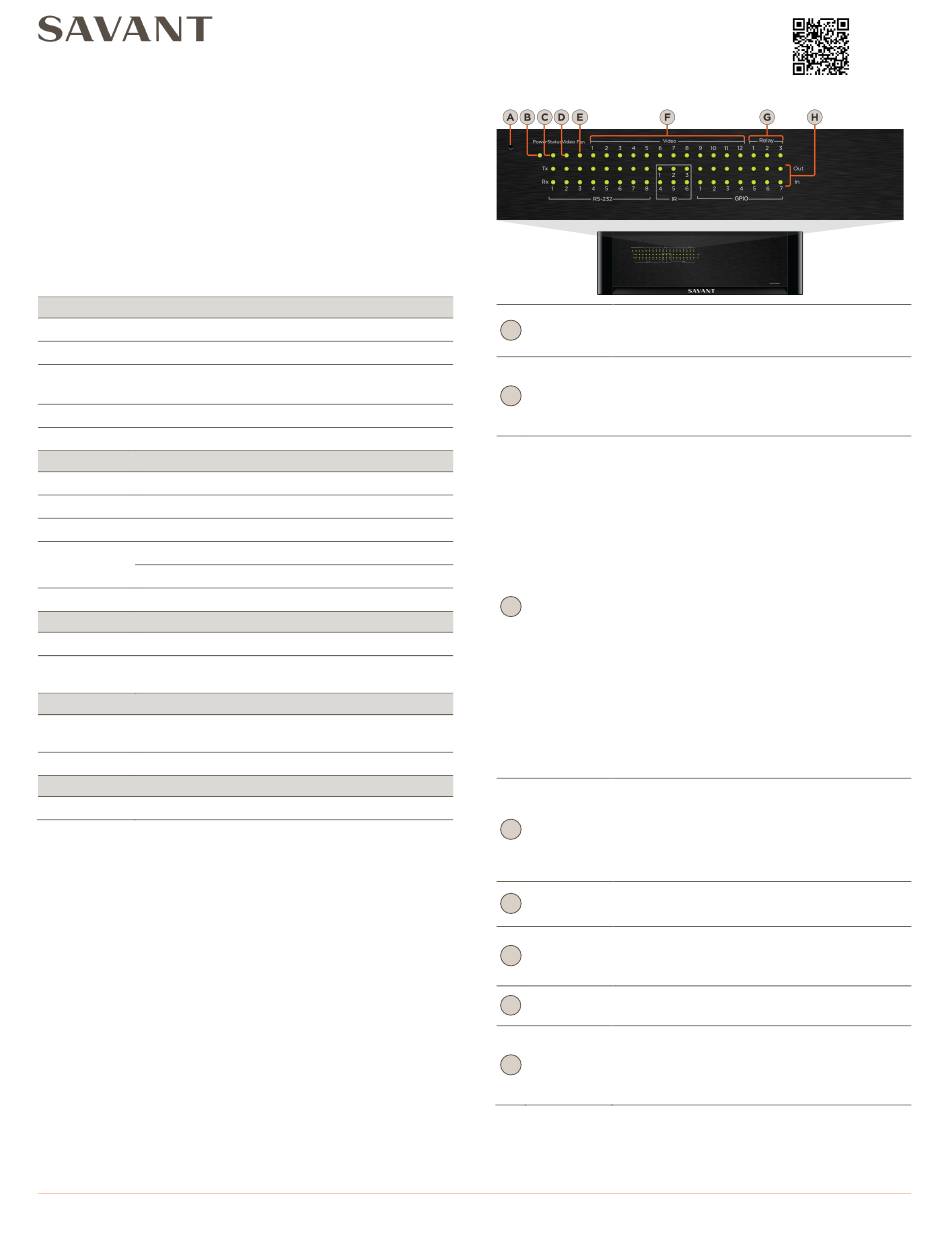

Front Panel

Insert pin into hole
Standby
A
powered-on to place the controller in or out of
Power (hole)
Standby mode.
Green: Has adequate power and operating
normally.
B
Power LED
Red: In Standby mode.
Off: N ot receiving power.
Green: Operating normally.
Green Flashing: Was assigned an IP Address
and is connecting to the Host.
Off: System is rebooting.
Red: Firmware update has failed and the
system will be rebooted.
Red Flashing: No IP Address assigned. Trying
to connect to the local network.
Amber: Firmware update in process.
C
Status LED
Amber Flashing: Has a link-local IP Address and
is connecting to the Host. This applies to
controllers that are not connected to an active
router and may be connected directly to a
Host.
Hardware Failure
Status LED indication will be interrupted every
three seconds with a solid Red indication. For
example, if the LED is flashing Green when a
hardware failure occurs, the LED will flash
Green, solid Red, etc., in three second intervals.
Off: HDCP keys received are valid. Encrypted
video content remains protected.
Red Flashing: HDCP keys are invalid.
D
Video LED
Encrypted video content is unprotected. Video
may still be present as this state only indicates
that the HDCP sync has been lost.
Green: Fans are running.
E
Fan LED
Off: Fans are Off.
Off: Video output port is functional.
Video Port
F
Green: Video output port not functioning due
LEDs
to error.
Green: Indicates relay activity on the associated
G
Relay
port. Relay ports are located on the back panel.
Green: Indicates activity on the associated
control type port. Control ports are located on
Control
H
the back panel.
Status LEDs
Control Ports - RS-232/422/485, IR, and GPIO
