2.
After the template is selected, a message appears asking if the default configuration can be used
to program the FPGA (see Figure 4). Click Yes, and the window closes.
Configuration Message
3.
Click the Settings button on the ADC Data Capture block. In the pop-up window select the
Capture Board tab. Select the checkbox Poll Full Flag. This must be checked in order to get
data capture from the
AD9683
and
AD6677
Rev 05 Jun 2013 16:37 | Page 8
(see Figure 5).

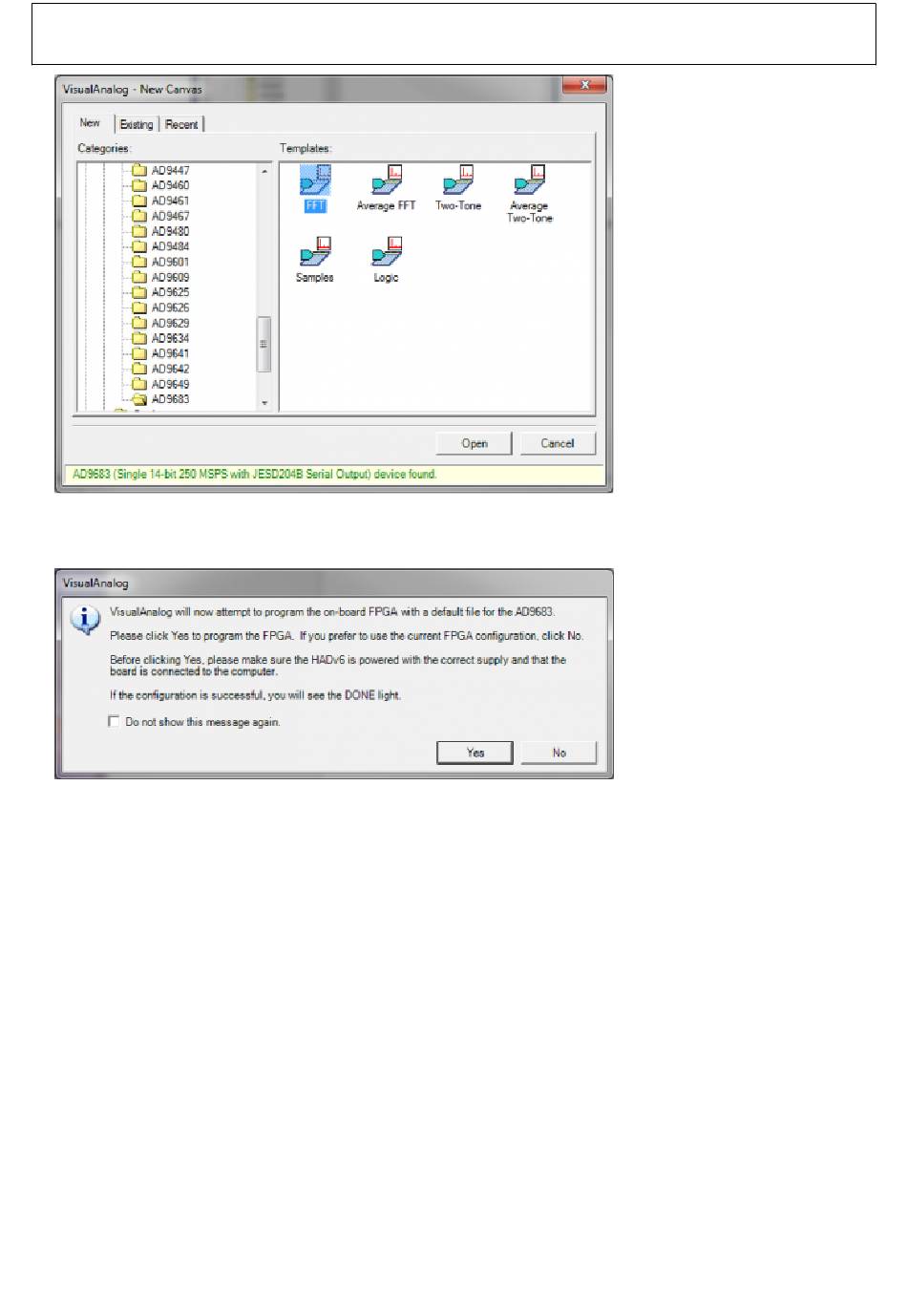

Figure 3. VisualAnalog, New
Figure 4. VisualAnalog Default
