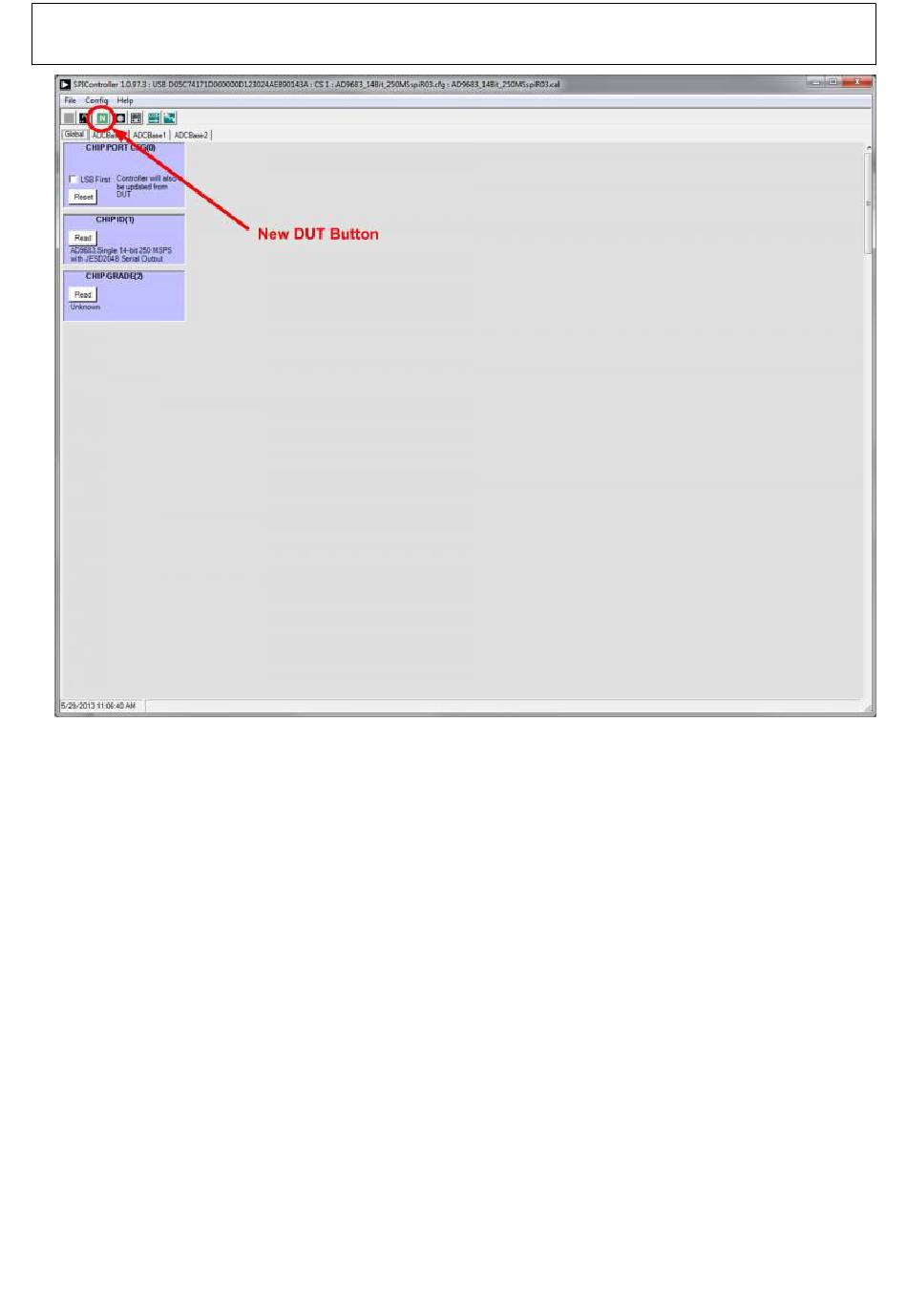

Figure 9. SPI Controller, New DUT Button

In the ADCBase 0 tab of the SPIController window, find the CLOCK DIVIDE(B) box (see Figure

10). If using the clock divider, use the drop-down box to select the correct clock divide ratio, if

necessary. The Nyquist Clock is selected by default. If using the RF Clock, make sure to configure

the device in this tab. For additional information, refer to the data sheet, the

AN-878 Application

Note, High Speed ADC SPI Control Software, and the

AN-877 Application

Note, Interfacing to High

Speed ADCs via SPI.

Rev 05 Jun 2013 16:37 | Page 12
