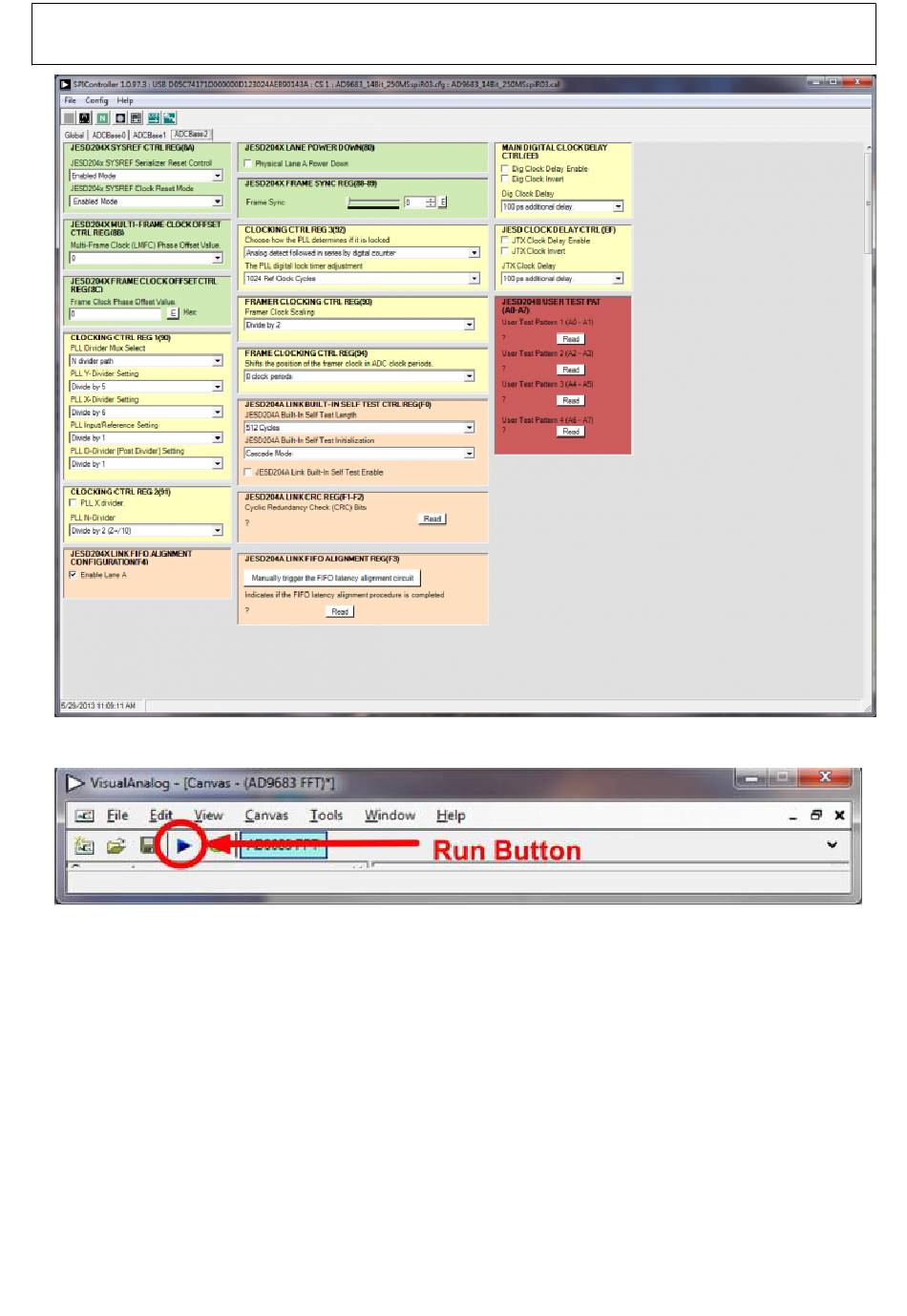

Figure 12. SPI Controller, Example ADCBase1 Page
5.
Click the Run button in the VisualAnalog toolbar (see Figure 13).
Figure 13. Run Button (Encircled in Red) in VisualAnalog Toolbar, Collapsed Display
Adjusting the Amplitude of the Input Signal
The next step is to adjust the amplitude of the input signal for each channel as follows:
1.
Adjust the amplitude of the input signal so that the fundamental is at the desired level. Examine
the Fund Power reading in the left panel of the VisualAnalog Graph - AD9253 FFT window
Rev 05 Jun 2013 16:37 | Page 15
