All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.

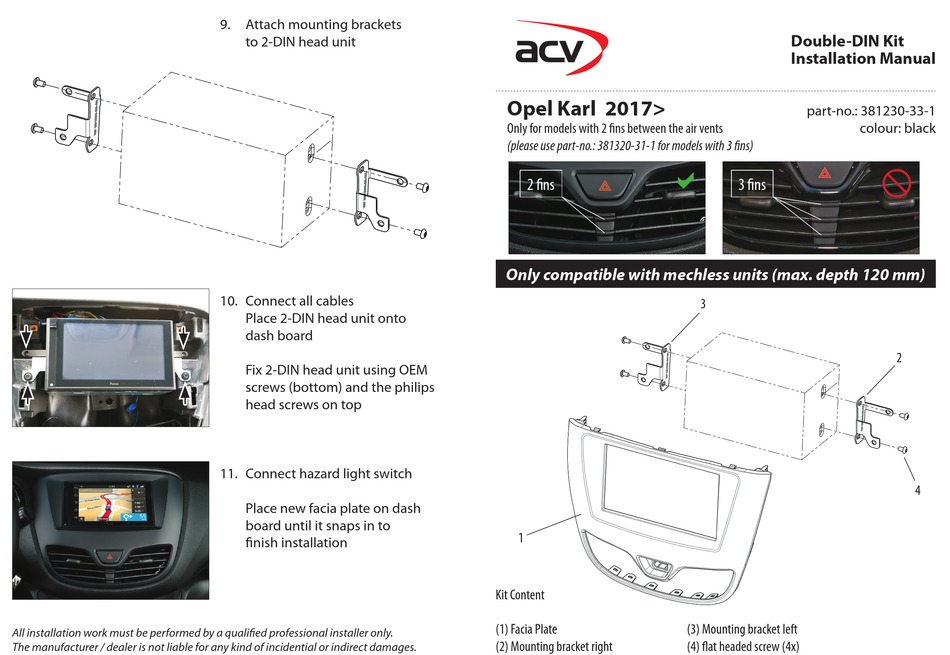

9.
Attach mounting brackets
to 2-DIN head unit
10. Connect all cables
Place 2-DIN head unit onto
dash board
Fix 2-DIN head unit using OEM
screws (bottom) and the philips
head screws on top
11. Connect hazard light switch
Place new facia plate on dash
board until it snaps in to
finish installation
Opel Karl 2017>
Only for models with 2 fins between the air vents
(please use part-no.: 381320-31-1 for models with 3 fins)
a
2 fins
Only compatible with mechless units (max. depth 120 mm)
1

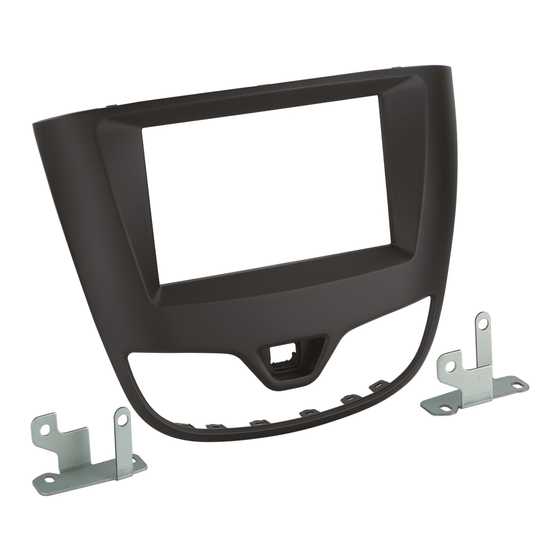

Kit Content
(1) Facia Plate
(2) Mounting bracket right
Double-DIN Kit
Installation Manual
part-no.: 381230-33-1
colour: black
3 fins
3
(3) Mounting bracket left
(4) flat headed screw (4x)
x
2
4
