ACV 381210-16-1 Installation Manual
  1. Manuals
  2. Brands
  3. ACV Manuals
  4. Automobile Accessories
  5. 381210-16-1
  6. Installation manual

ACV 381210-16-1 Installation Manual

Double din,for nissan micra (k13 facelift) 09/2013- nissan note (e12) 10/2013-
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
Enlarged version
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
• Nissan Micra (K13 Facelift) 09/2013->
• Nissan Note (E12) 10/2013->
Compatible with double DIN devices
4
3
5
Double DIN
Installation Manual
colour / part-no.:
piano-black / 381210-16-1
5
1

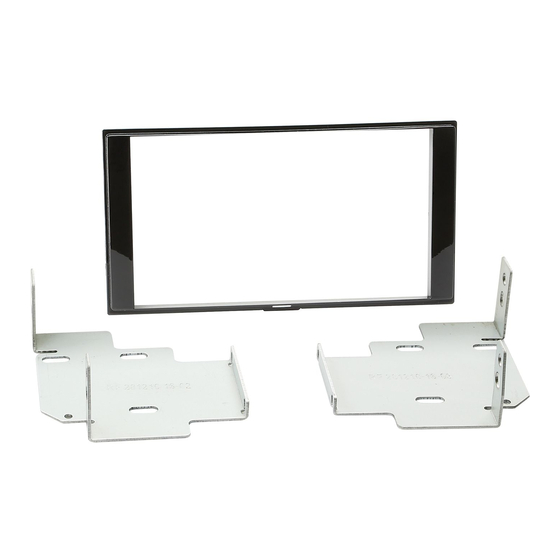

(1) Facia Plate
(2) Mounting bracket right
(3) Mounting bracket left
(4) flat headed screw
(5) self-tapping screw with collar
4
2
