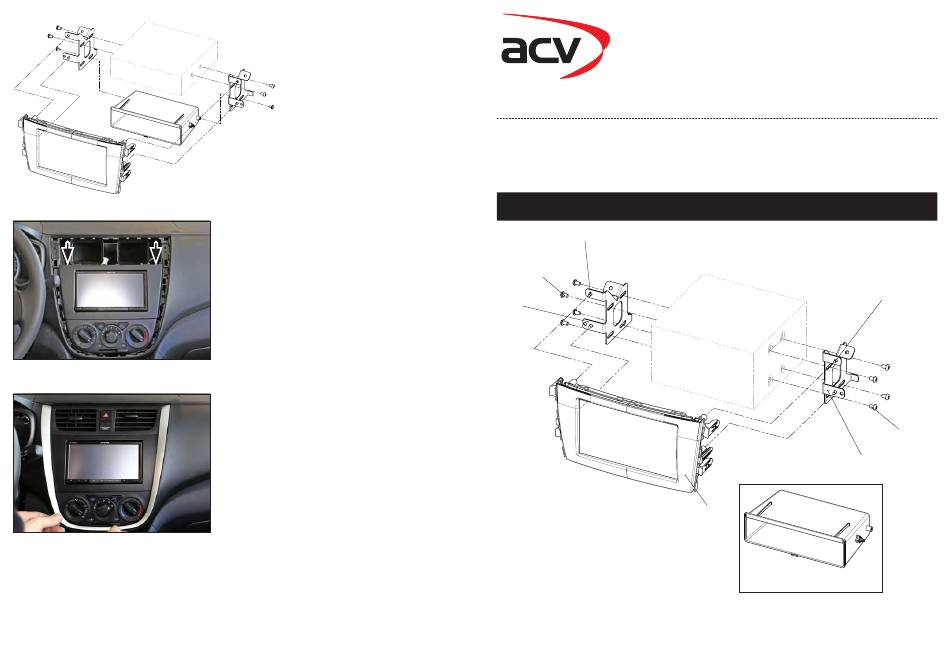

8a. 1-DIN Radio install
(only 281294-09-1)
Attach mounting frames and
pocket to facia plate and
1-DIN radio
10. Connect all cables
Place 2-DIN head unit onto
dash board
Fix 2-DIN head unit using
the original screws
11. Reinstall everything in
reverse order to finish
installation
Installation Manual
Double DIN Kit
2-DIN
2-DIN with pocket 281294-09-1
• Suzuki Celerio 2014->
Compatible with these double DIN devices
Double DIN Navigation
4
5
3
Double DIN Set contents
• (1) Facia Plate
• (2) Mounting Bracket Right
• (3) Mounting Bracket Left
381294-09-1
4
2
1
pocket (only 281294-09-1)
• (4) self-tapping convex fillister head screw
• (5) flat headed screw
5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ACV 381294-09-1
Summary of Contents for ACV 381294-09-1
- Page 1 Installation Manual 8a. 1-DIN Radio install Double DIN Kit (only 281294-09-1) 381294-09-1 2-DIN 2-DIN with pocket 281294-09-1 Attach mounting frames and • Suzuki Celerio 2014-> pocket to facia plate and 1-DIN radio Compatible with these double DIN devices Double DIN Navigation 10.
- Page 2 Suzuki Celerio OEM dash board Remove air vents Unplug connectors carefully Unclip OEM panel carefully Remove 2 screws of OEM Remove OEM panel Unclip all connectors Remove OEM head unit Double-DIN radio preparation Remove 2 screws Attach mounting frames and facia plate to to double DIN radio...
