• Mitsubishi ASX 2014->
Compatible with these double DIN devices
Double-DIN Navigation
5
4
Double DIN Kit content

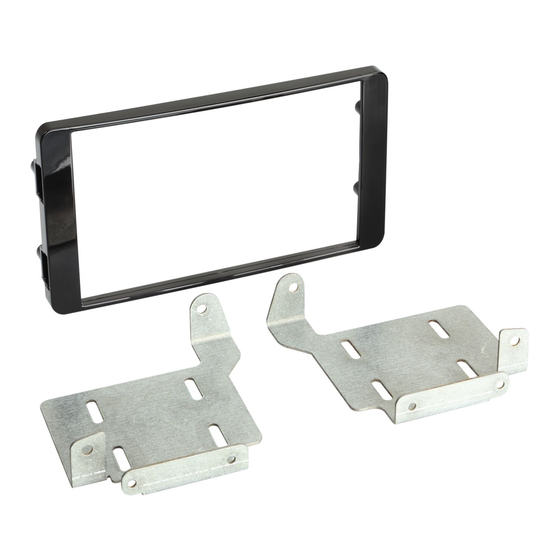

• facia plate (1)
• mounting bracket right (2)
• mounting bracket left (3)
Installation Manual
Double DIN Kit
piano-black:
381200-19-1
2
1
• self-tapping screw with collar (4)
• flat headed screw (5)
5
Advertisement
Table of Contents
Related Manuals for ACV 381200-19-1
Summary of Contents for ACV 381200-19-1
- Page 1 Installation Manual Double DIN Kit piano-black: 381200-19-1 • Mitsubishi ASX 2014-> Compatible with these double DIN devices Double-DIN Navigation Double DIN Kit content • facia plate (1) • mounting bracket right (2) • self-tapping screw with collar (4) All installation work must be performed by a qualified professional installer only.
- Page 2 1. Unclip Mitsubishi ASX 4. Unplug cables carefully OEM panel Remove OEM head unit 2. Unplug cables and 5. Mount mounting frames Remove OEM panel and facia plate to Double DIN head unit 3. Remove 4 screws of OEM head unit 6.
