Installation Manual Double DIN Kit
5.
Connect all required
circuit points
Place double DIN
head unit on dash board
Secure head unit to
dash board
Reinstall everything
in reverse order to finish
installation
• Subaru Impreza (G4) 2011->
• Subaru XV (G4) 2011->
Compatible with these Double-DIN devices:
Double-DIN Navigation
2
1

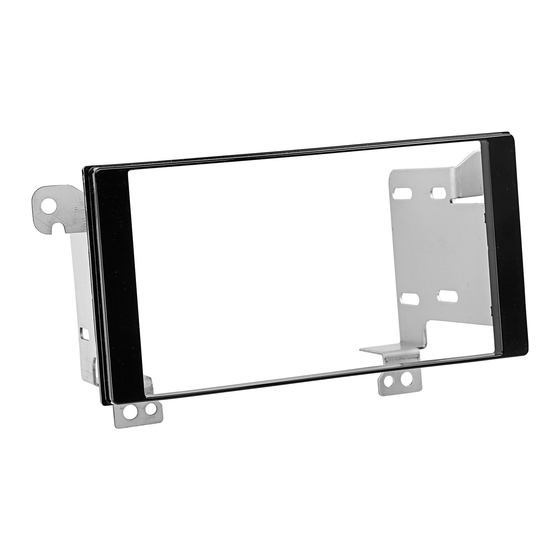

Double DIN Set contents
Double DIN Set contents
• (1) Facia Plate
• (1) Facia Plate
Installation Manual
Double DIN Kit
Part-No.: 381296-01
3
• (2) Mounting bracket (L)
• (2) Mounting bracket (L)
• (3) Mounting bracket (R)
• (3) Mounting bracket (R)
