ACV 381230-29 Installation Manual

Double-din kit for opel adam (type s-d) 01/2013-

All installation work must be performed by a qualified professional installer only.

The manufacturer / dealer is not liable for any kind of incidential or indirect damages.

Remove buttons from

OEM panel and attach them

to new facia plate

10. Connect all cables

Place facia plate on dash board

11. Reinstall everything in reverse

Order to finish installation

• Opel Adam (Type S-D) 01/2013 ->

Compatible with these navigation devices

Double DIN Navigation

Kit Content

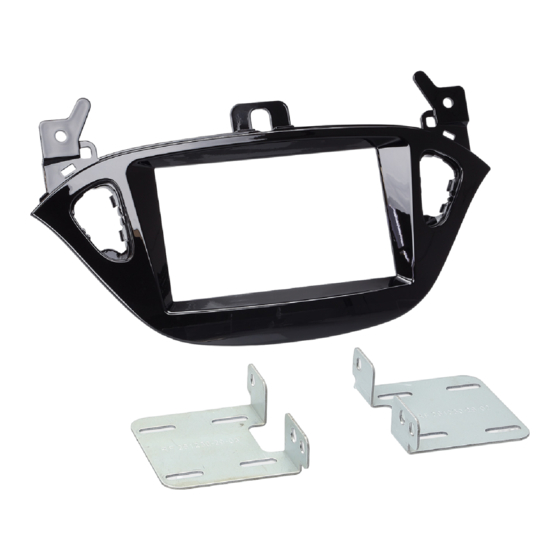

(1) Facia Plate

(2) Mounting bracket right

(3) Mounting bracket left

(4) Flat Headed Screw

Double-DIN Kit

Installation Manual

part-no.: 381230-29

colour: piano black

pre-assembly Unit and Brackets

Unit front surface

~37mm

Table of Contents

Need help?

Do you have a question about the 381230-29 and is the answer not in the manual?

Page 1 Remove buttons from Double-DIN Kit OEM panel and attach them Installation Manual to new facia plate part-no.: 381230-29 colour: piano black • Opel Adam (Type S-D) 01/2013 -> 10. Connect all cables Place facia plate on dash board Compatible with these navigation devices Double DIN Navigation 11.
Page 2 Opel Adam OEM dash board Unclip OEM cover carefully (see arrow) Unclip and remove OEM panel Remove OEM cover (unplug all connectors carefully) Unplug hazard light switch Attach mounting brackets pre-assembly Unit and Brackets to double DIN head unit Unit front surface ~37mm Remove 2 screws of 8 .
