© 12/2008 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
6.
Mount brackets to
head unit
Connect all wires
Mount head unit
into dashboard
7.
Place OEM-Panel onto
dashboard to finish installation
• Mitsubishi L200 2006->
Compatible with double DIN devices
2
Double DIN Kit contents

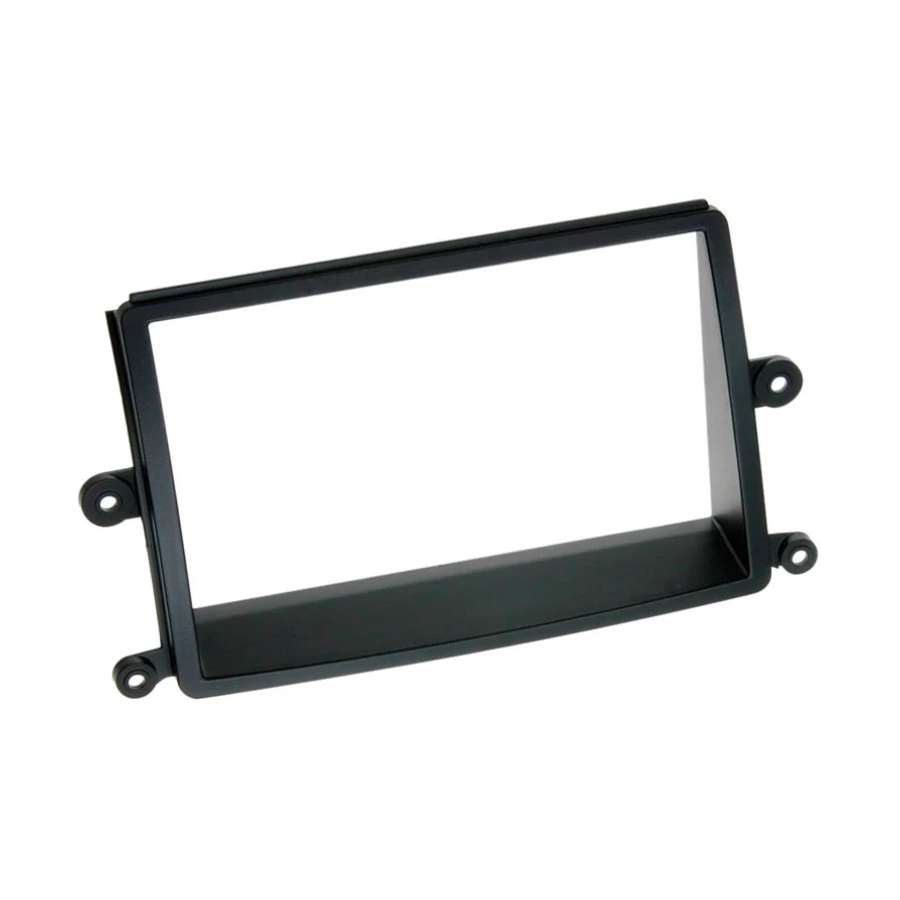

• (1) Facia Plate
• (2) Mounting Brackets
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
Installation Manual
Double DIN Kit
Part-No.: 381200-07
1
