All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
9.

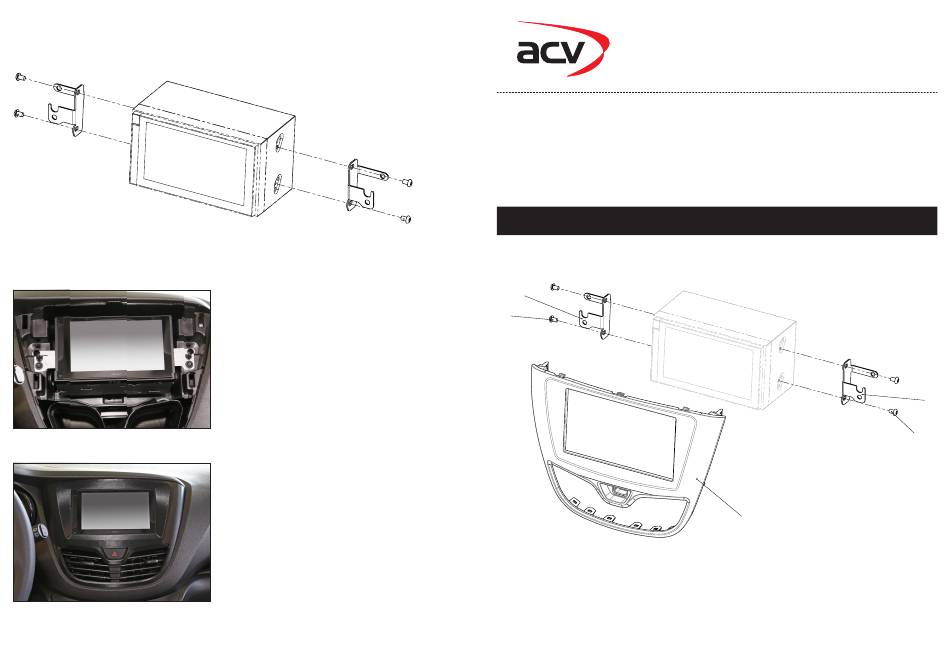

Attach mounting brackets
to 2-DIN head unit
10. Connect all cables
Place 2-DIN head unit onto
dash board
Fix 2-DIN head unit using
the original screws
11. Connect hazard light switch
Place new facia plate on dash
board until it snaps in to
finish installation
Opel Karl 2015->
Only compatible with mechless units (max. depth 120 mm)
3
4
Kit Content

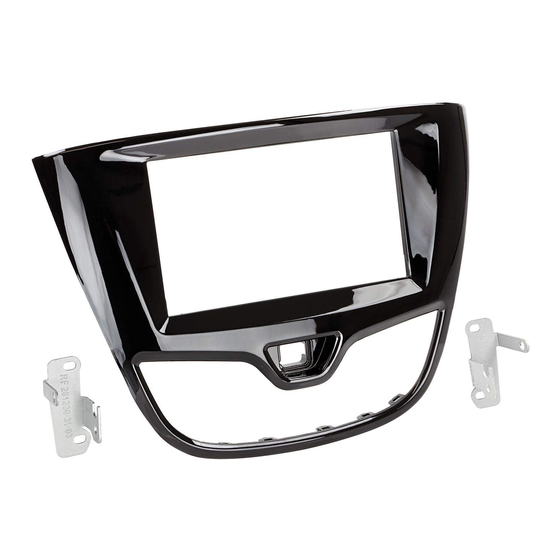

(1) Facia Plate
(2) Mounting bracket right
Double-DIN Kit
Installation Manual
part-no.: 381230-31-1
colour: piano black
1
(3) Mounting bracket left
(4) flat headed screw
2
4
Advertisement
Related Manuals for ACV 381230-31-1
Summary of Contents for ACV 381230-31-1
- Page 1 Attach mounting brackets Double-DIN Kit to 2-DIN head unit Installation Manual part-no.: 381230-31-1 colour: piano black Opel Karl 2015-> Only compatible with mechless units (max. depth 120 mm) 10. Connect all cables Place 2-DIN head unit onto dash board Fix 2-DIN head unit using the original screws 11.
- Page 2 Opel Karl OEM dash board Unclip and remove hazard light switch from OEM panel Unclip OEM panel Place hazard light switch Unplug hazard light switch onto new 2-DIN facia plate and remove OEM panel Remove 2 screws Unclip and remove air vents of OEM head unit from OEM panel (see arrows)
