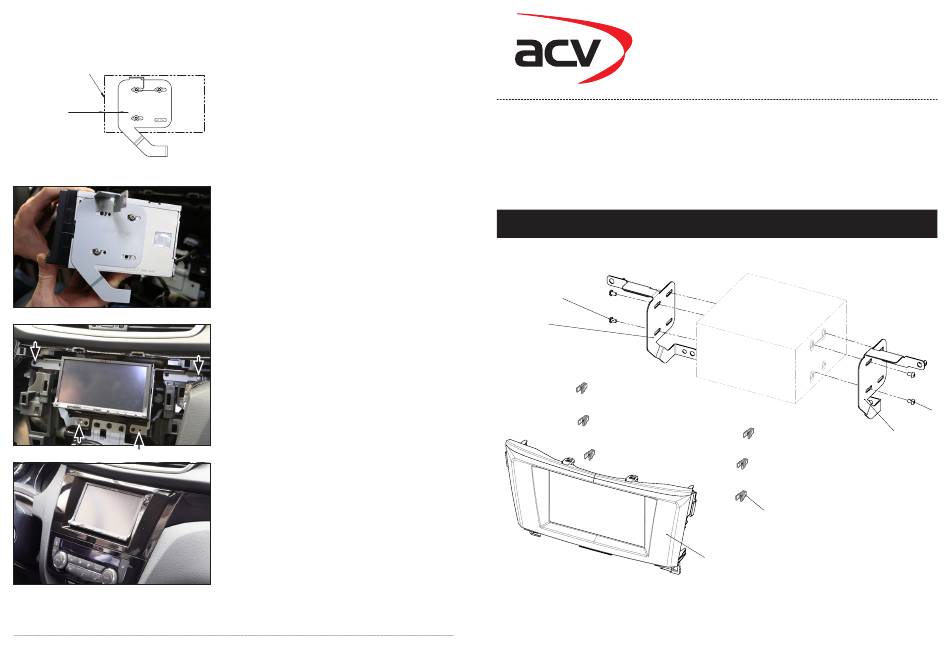

pre-assembly Unit and Brackets
Unit front surface
~24mm
© 09/2014 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
8.
Mount mounting brackets
with flat headed screws
to Double-DIN head unit
We recommend to leave
about 24 mm space to the
unit front surface
9.
Connect all required circuit
points. Place Double-DIN
head unit on dash board
Fix it with 4 screws
10. Put clips on the rear side
of facia plate. Place
facia plate on dash board
Reinstall everything in
reverse order to finish
installation
• Nissan Qashqai (J11) 02/2014->
Compatible with these double DIN devices
Double-DIN Navigation
4
3
3
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
Installation Manual
Double DIN Kit
piano-black:
381210-17-1

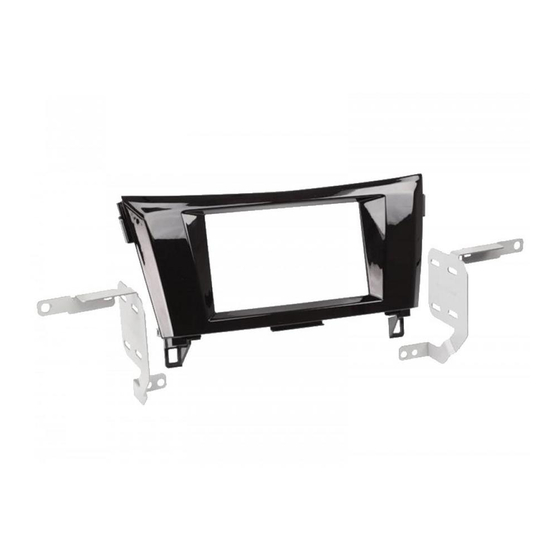

Double DIN Kit contents
(1) facia plate
5
(2) mounting bracket right
(3) mounting bracket left
(4) flat headed screw
1
(5) clip
4
2
