ACV 381250-14-1 Installation Manual

~9 mm
© 03/2012 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.

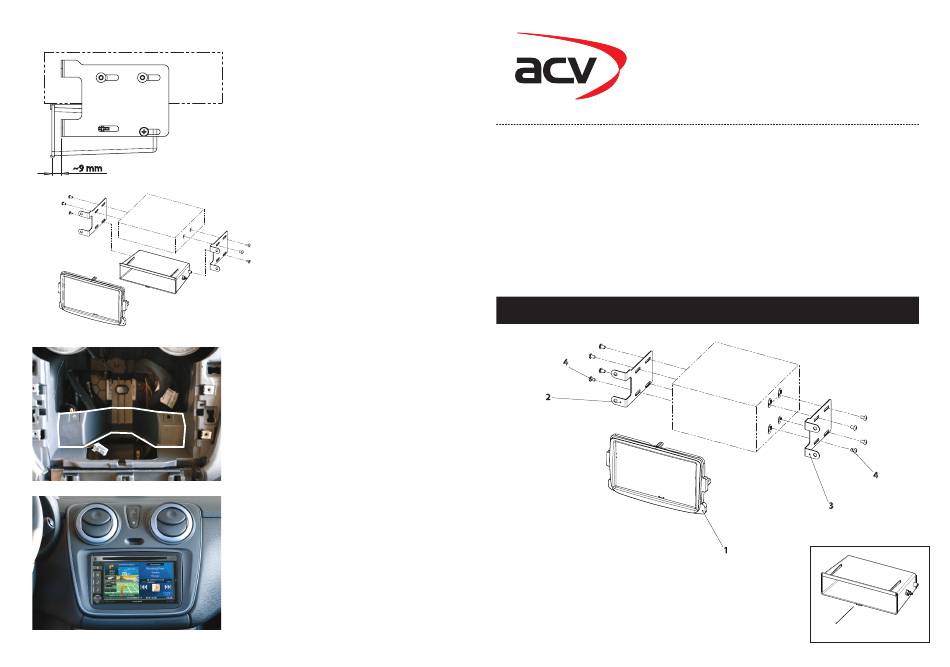

7a. 1-DIN install
Attach mounting brackets
and pocket to 1-DIN head unit
We recommend a distance
about 9 mm to the pocket
front surface
8. If neccassary cut plastic
in order to clear space
for 2-DIN head unit
9. Connect all required circuit points
Place facia plate over head unit.
Reinstall everything in reverse
Order to finisch installation
Dacia Dokker (SD) 12/2012 ->
Dacia Dokker Stepway (SD) 11/2014 ->
Dacia Duster (SD/SR Facelift) 11/2013 ->
Dacia Lodgy (SD) 06/2012 ->
Dacia Lodgy Stepway (SD) 11/2014 ->
Dacia Logan MCV (SD) 07/2013 ->
Dacia Sandero / Sandero Stepway (SD) 01/2013 ->
Compatible with these Double-DIN devices:
Double-DIN Navigation
4
2

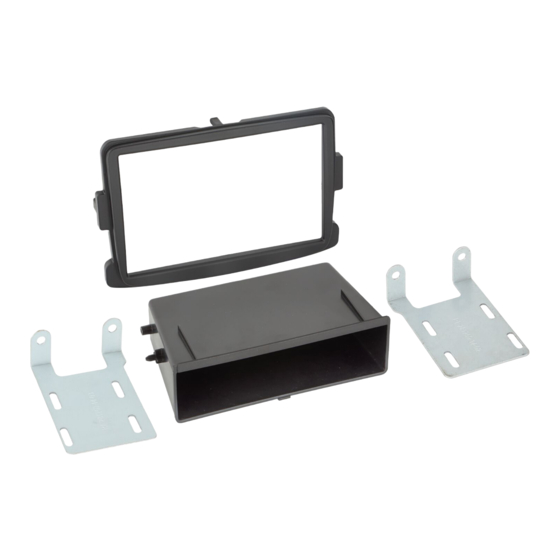

Double DIN Set contents
• (1) facia plate
• (2) mounting bracket (right)
• (3) mounting bracket (left)
• (4) flat headed screw
Facia Plate colour part-no.:
2-DIN black 381250-14-1
2-DIN with pocket black 281250-14-1
2-DIN piano black 381250-14-2
2-DIN with pocket piano black 281250-14-2
Opel Vivaro (X82)* 08/2014 ->
*(only with CD 18 BT USB / Navi 50 MEDIA-NAV)
Renault Trafic (E82/F82)* 09/2014->
*(only with CD Connect R&GO / Navi MEDIA-NAV)
4
3
1
• (5) pocket
281250-14-x only!
5
