© 08/2012 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
Nissan N400 2010->
Opel Movano 2010->
Renault Master III 2010->
Compatible with these double DIN devices
Double DIN Navigation
4
3

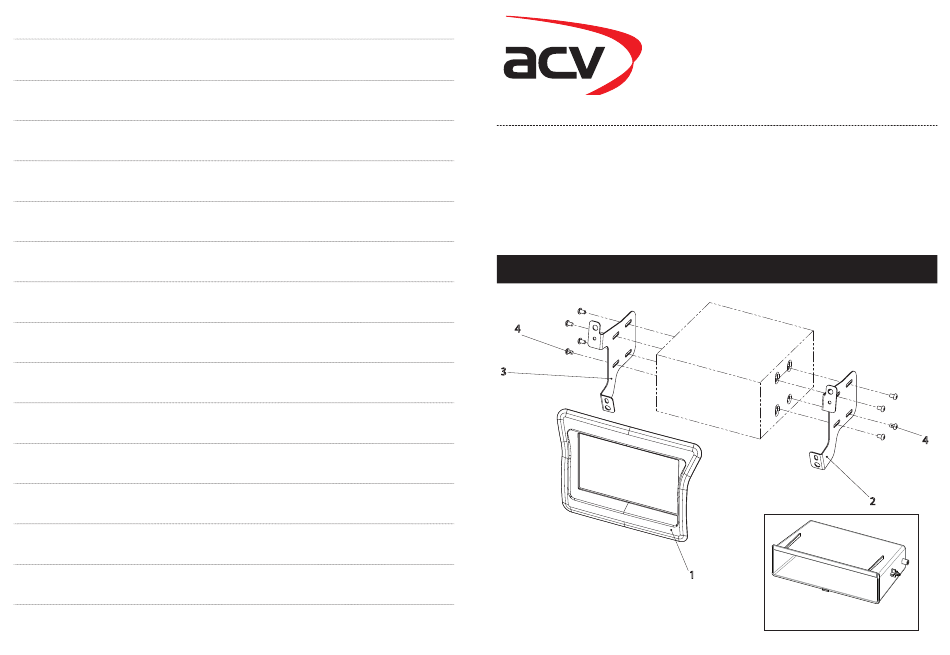

• (1) facia plate
• (2) metal frame right
• (3) metal frame left
• (4) flat headed screw
Installation Manual
Double DIN Kit
colour: black
part-no.
2-DIN
381250-15-x
2-DIN with pocket
281250-15-x
1
pocket (only 281250-15-x)
4
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ACV 381250-15 Series
Summary of Contents for ACV 381250-15 Series
- Page 1 Installation Manual Double DIN Kit colour: black part-no. 2-DIN 381250-15-x 2-DIN with pocket 281250-15-x Nissan N400 2010-> Opel Movano 2010-> Renault Master III 2010-> Compatible with these double DIN devices Double DIN Navigation • (1) facia plate • (2) metal frame right •...
- Page 2 Sample dashboard photo with 1-DIN or OEM radio Remove radio with relase keys (unplug all connectors carefully Remove 2 screws at the left side beside the shift knob Remove 2 screws at the right side beside the cup holder unit Pull panel with shift knob towards your direction.
- Page 3 14. Fix new 2-DIN head unit Remove pocket Connect all required connectors above radio frame (unplug all connectors carefully) Plate center console Re-install everything in reverse Remove pocket at left side order to finish installation Remove screws at the right and left side behind radio frame Remove complete panel by pulling it towards your...
- Page 4 10. Cut center bridge in order to 2-DIN head unit clear space for 2-DIN facia plate pre-assembly Brackets 14a. Attach 2-DIN head unit to Unit front surface brackets* We recommend a distance about 34 mm (see graphic) ~34 mm 11. This bridge on the rear side of the OEM panel needs to be removed in order to attach the 1-DIN head unit...
