8.
Mount mounting brackets
to head unit
9.
Connect all required
circuit points
Mount head unit
to dash board
Place facia plate
Install everything in
reverse order to finish
installation
Opel Astra (K ) 2015->
Compatible with Double-DIN devices:
6
3
7

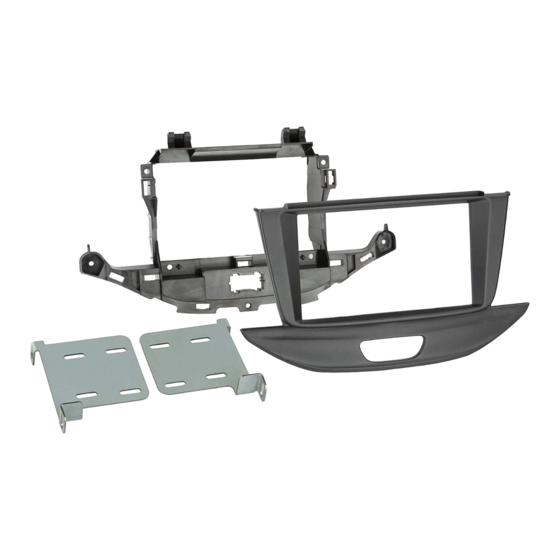

Double DIN Set contents
• (1) facia plate
• (5) speed nut
• (2) mounting bracket right
• (6) self-tapping convex fillister head screw
• (3) mounting bracket left
• (7) flat headed screw
• (4) bracket
Installation Manual
Double DIN Kit
colour: black
part-no.: 381230-32-1
7
2
6
1
5
5
4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ACV 381230-32-1
Summary of Contents for ACV 381230-32-1

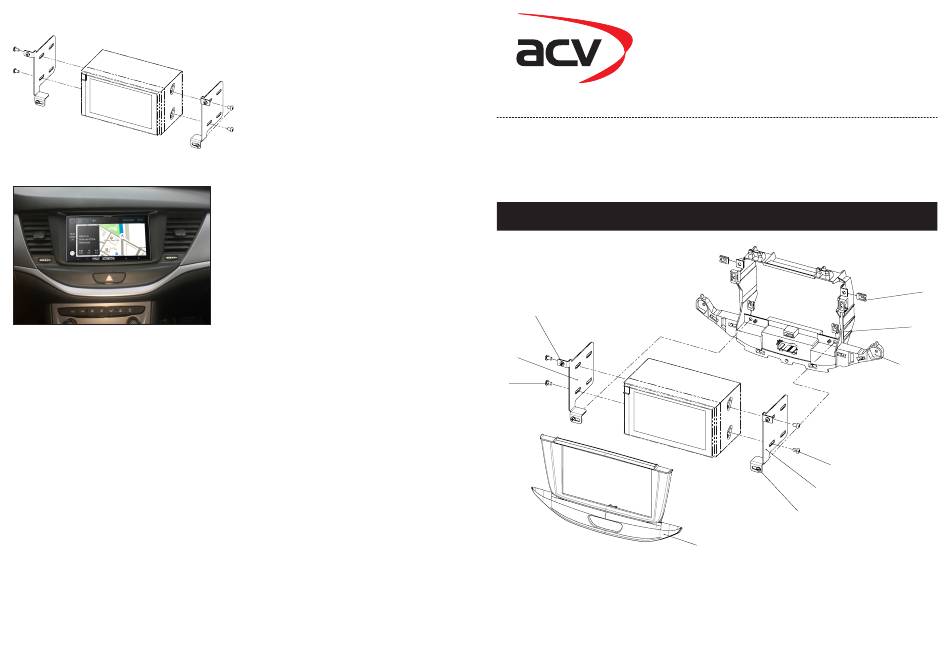

- Page 1 Installation Manual Double DIN Kit Mount mounting brackets to head unit colour: black part-no.: 381230-32-1 Opel Astra (K ) 2015-> Compatible with Double-DIN devices: Connect all required circuit points Mount head unit to dash board Place facia plate Install everything in...
