ACV 381200-17 Installation Manual

ACV 381200-17 Installation Manual

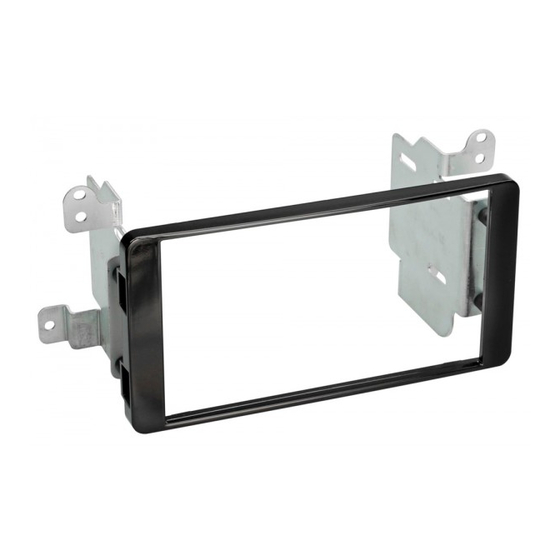

Double din kit for mitsubishi outlander 10/2012- type cw0

Advertisement

Quick Links

© 12/2010 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
• Mitsubishi Outlander 10/2012 -> Type CW0
Compatible with these double DIN devices
Double DIN Navigation
5
3
4
Kit-Content:
(1)
facia plate
(2)
mounting bracket right
(3)
mounting bracket left
(4)
self tapping screw with collar
(5)
cross recessed pan head screw
Installation Manual
Double DIN Kit
piano-black
381200-17
2
4
1
5
