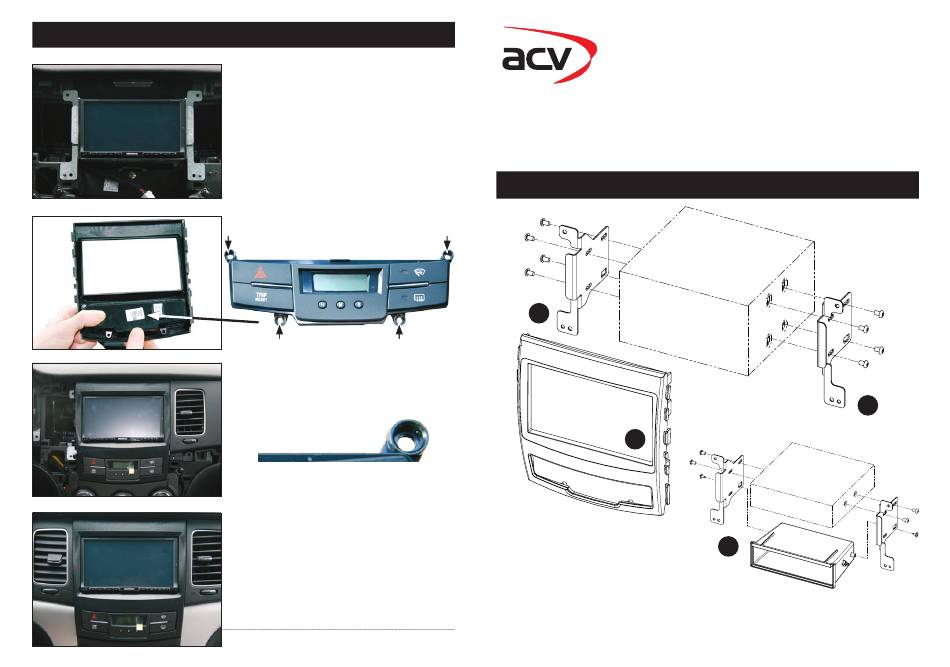

Installation Manual Double DIN Kit
9.
Attach metal mounting brackets
to Double-DIN navigation
Connect all required circuit points
Place Double-DIN navigation
on dashboard and fix it with OEM
screws
10. Remove OEM panel holding
harzard light switch and clock.
Mount OEM panel to facia plate
in case of inaccurate mounting position:
cut upper part of OEM panel holder holes (see
arrows) to a flat hole in order to get more
flexibility for adjustment
11. Connect harness for panel with
hazard light switch
Place facia plate on dashboard
Reinstall everything in reverse
order
12. Dashboard with installed
Double-DIN navigation
Installation Manual
Double DIN Kit
Double-DIN:
with pocket:
• SsangYong Korando 2011->
Compatible with these double DIN devices
Double DIN Navigation
2
1
Double DIN Kit contents

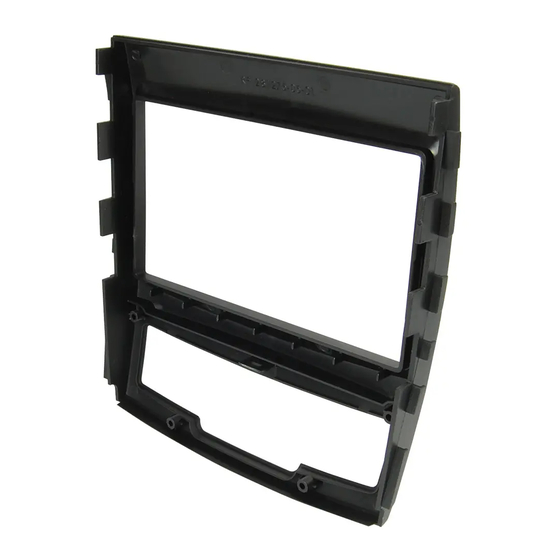

(1) Facia Plate
(2) Metal Mounting Brackets
(3) pocket ( part-no.: 281275 only! )
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
381275-05
281275-05
Double-DIN: 381275-05
3
with pocket: 281275-05
2
