Step Instruction
18 Fasten the back panel of the enclosure.
19 Fasten the side panels of the enclosure.

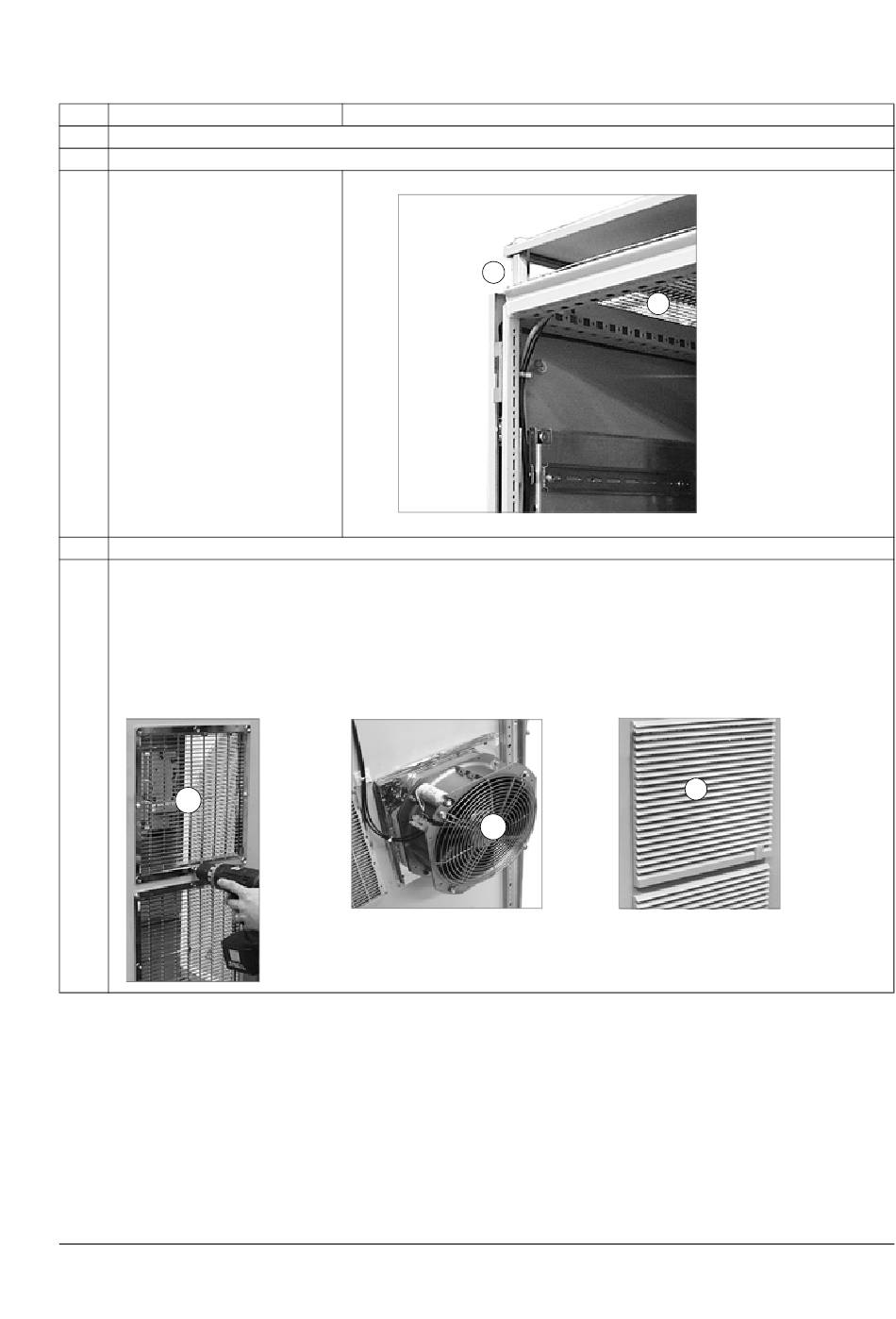

20 Fasten the roof plate:
1. Cut an opening to the roof
wire mesh for the upper edge
of the air baffle. Place the
mesh on the top of the
enclosure frame.
2. Fasten the enclosure roof
plate above the mesh with four
50 mm spacers at the corners.
21 Remove the vertical support rail on the hinged side of the enclosure door. See page
22 Cut openings in the door for the ventilation gratings, control panel mounting platform and other devices. Fasten and
wire the door devices. See RPMP-11/13 Control Panel Mounting Platform Kit Installation Guide [3AFE68400643
(English)].
Install the ventilation gratings on the door as follows:
1. Fasten the gratings (1a) and the EMC compatible fan-and-air-filter unit (1b).
2. Place the air filter mat between the lower grating and the outer louvred grating.
3. Push the louvred grating onto its place.
1a
2
1b
View of the EMC compatible
fan-and-air-filter unit on the
back side of the door
1
33
3
Drive module of frame size R8
