Step Instruction
12 Step drill lead-throughs in the top cover of the top entry clear plastic busbar shroud. Pass the laminated copper bars
through the lead-throughs and the lower part of the shroud.
13 Connect the laminated copper bars to the input terminals of the drive module.
14 Fasten the top entry clear plastic busbar shroud to the drive module.
14

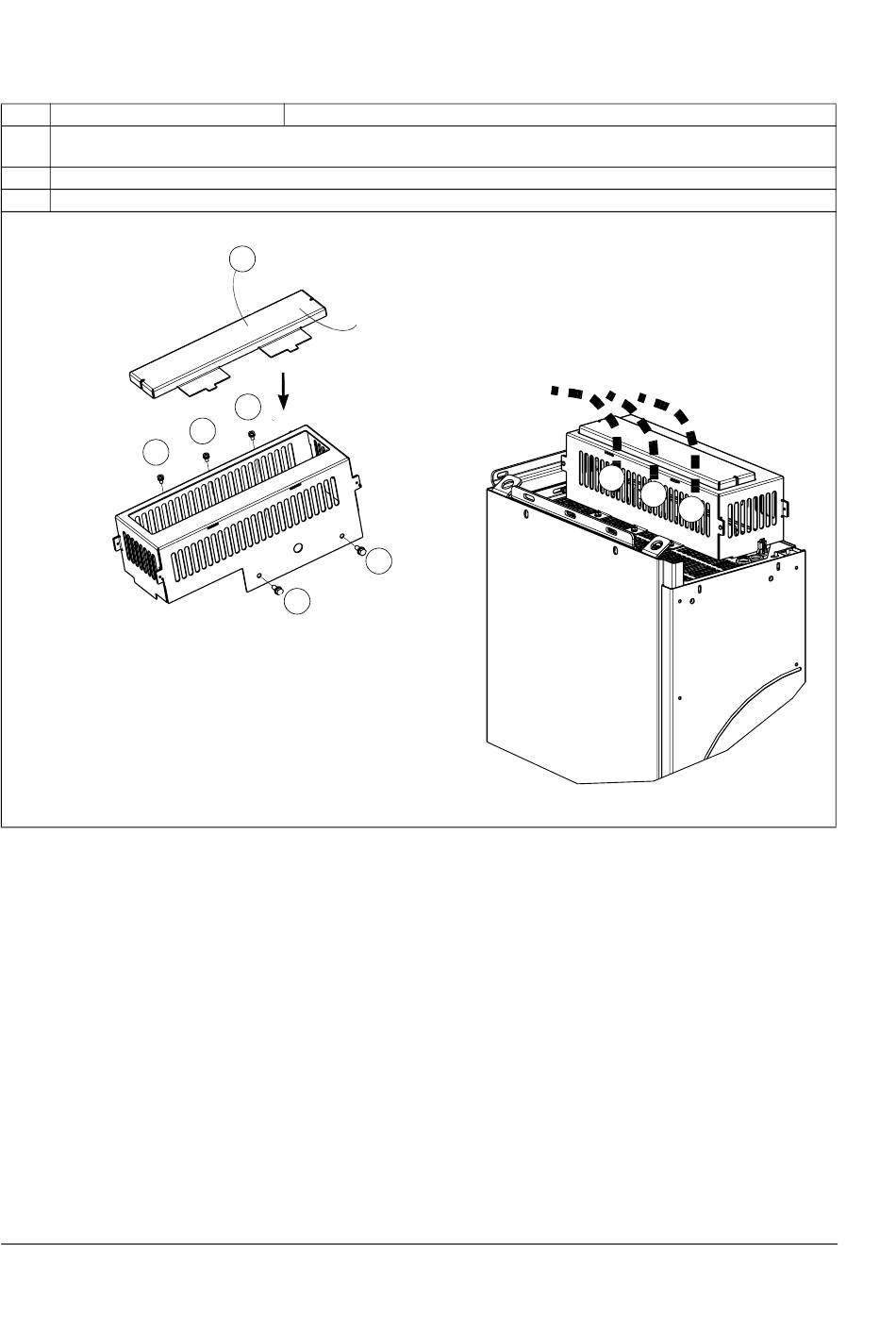

Drive module of frame size R8
Step drill lead-throughs
12
for the busbars.
14
14
14
Remove the protective
film.
14
Top entry busbar shroud fastened
13
13
