Step Instruction

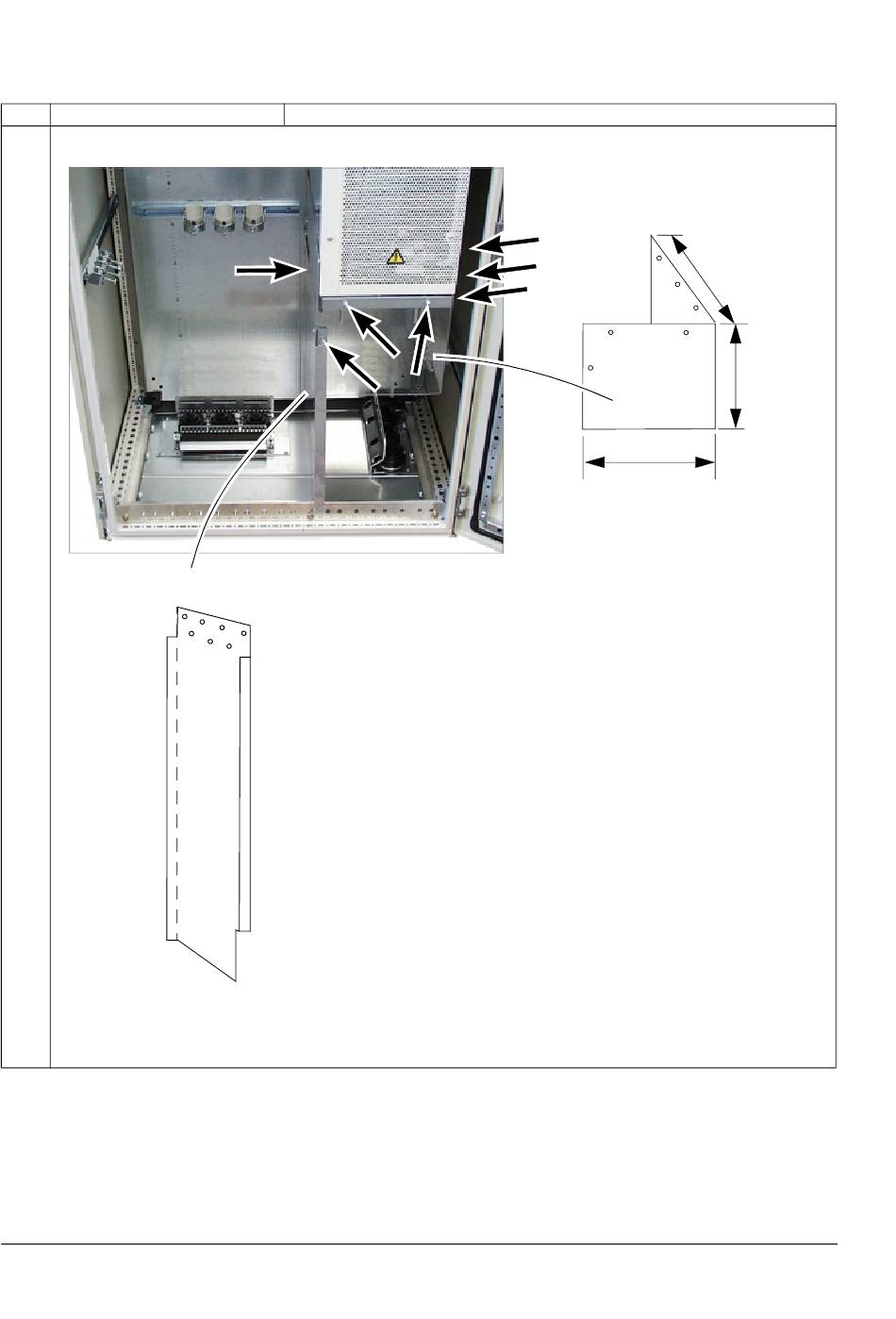

12 Fasten the EMC screen and clear plastic shroud to the drive module.
EMC screen
Drive module of frame size R7 with bottom exit
See the
dimensional
drawing on page
49.
Clear plastic shroud
(included in ACS800-04M bottom exit
shroud kit +B060)
470 (18.50)
252 (9.92)
Note: Remove the protective film from
the shroud surfaces.
If the EMC screen is not used, protect
the output terminals against contact at
the left-hand side also with the clear
plastic shroud.
215 (8.46)
