Layout of the installation

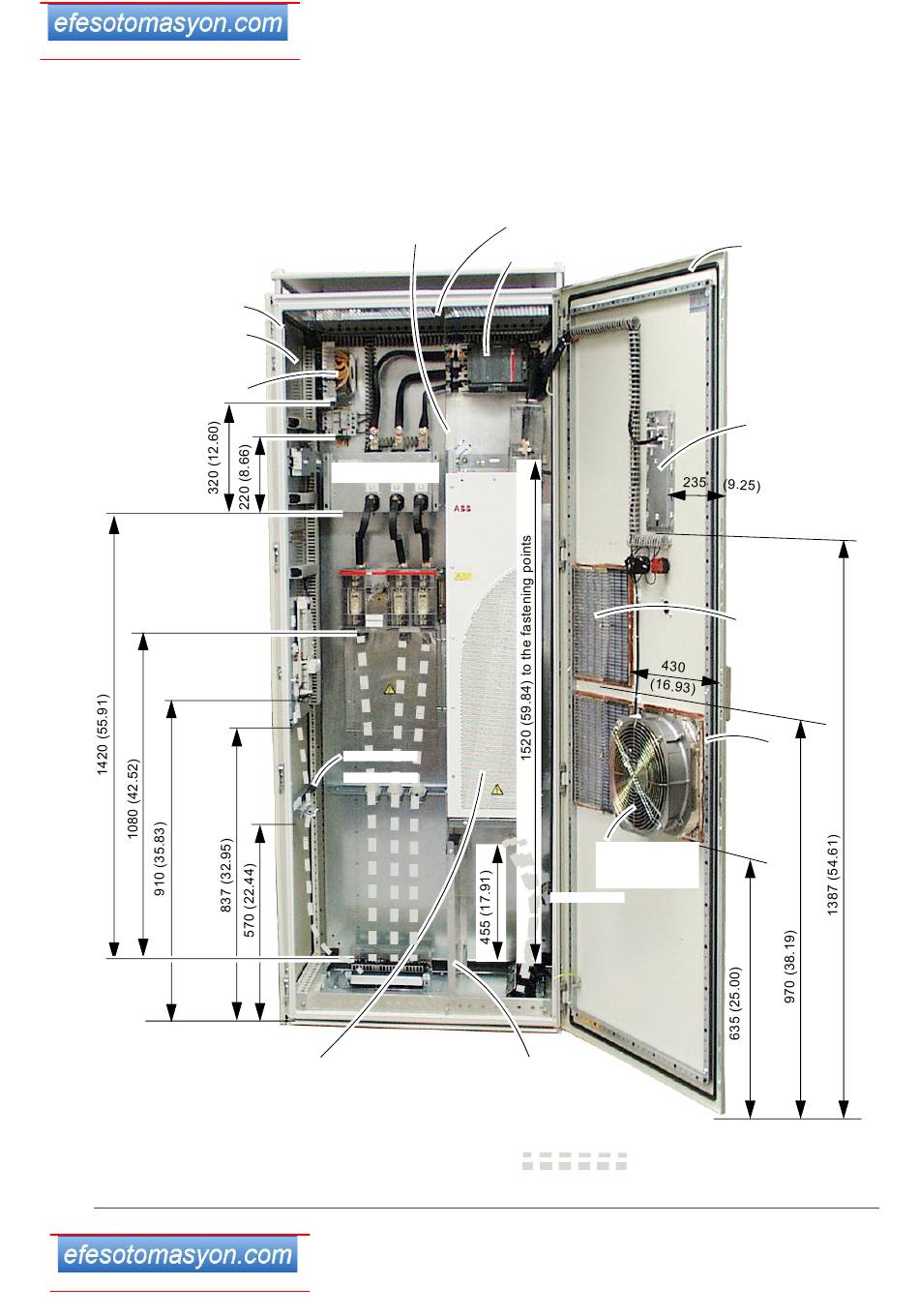

This photo shows the final installation with component placing dimensions in
millimetres and (inches).
Note: A mirrored layout is advantageous for
servicing the drive module.
Punched section
TS 8612.160
(600 mm)
Side mounting plate
TS 8614.240
1100 mm × 300 mm
Auxiliary voltage
transformer
Switch fuse
RDCU
Punched section
TS 8612.160
Base plate
The drive module is placed 30 mm (1.18 in.) from
the right-hand side panel. Fastening point distances
from the bottom of the back mounting plate are
shown. The distance of the back mounting plate
from the base plate of the enclosure is 50 mm
(1.97 in.)
Support rail PS 4944.000
Air baffle
Contactor
EMC filter *
C-rail 600 mm
C-rail 390 mm
PE
EMC compatible*
fan-and-air-filter unit
SK 3326.607
C-rail 600 mm
EMC screen *
* required in first environment installations only
user's cabling
Drive module of frame size R7 with bottom exit
13
Gasket strip
64331116
Cutting in the door:
115 × 240
(4.53 × 9.45)
EMC compatible*
air filter
SK 3326.267
Cutting in the door:
292 × 292
(11.50 × 11.50)
95 (3.74)
from the
door edge
