ABB ACS800 Installation Manual page 35

Step Instruction

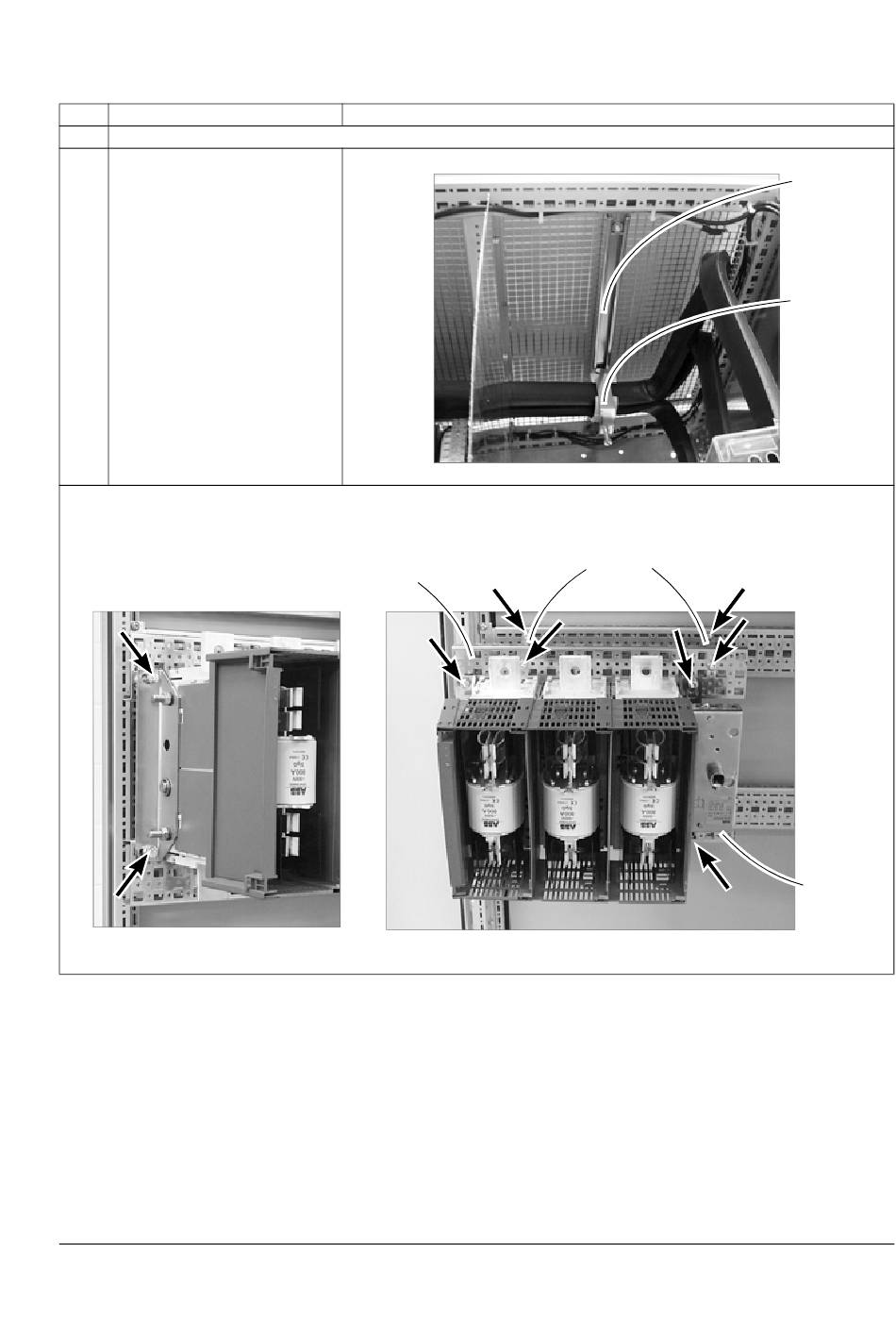

10 Fasten the drive module by its top to the back punched section.
11 Fasten the switch fuse to the
enclosure frame.
Connect the switch fuse to the
contactor with laminated copper
bars.
Connect laminated copper bars
to the output of the contactor.
Fasten a C-rail to the top of the
enclosure frame and support the
laminated busbars to the C-rail.
Side view
Contactor
Fastening of the switch fuse
Punched section
PS 4375.000 (395 mm)
Spacer brackets PS 4199.000
Front view
Drive module of frame size R8
35
C-rail
600 mm
DK 7828.060
Cable clamp
DK 7099.000
Input
terminals of
the drive
module
Punched
section
PS 4375.000
(395 mm)
