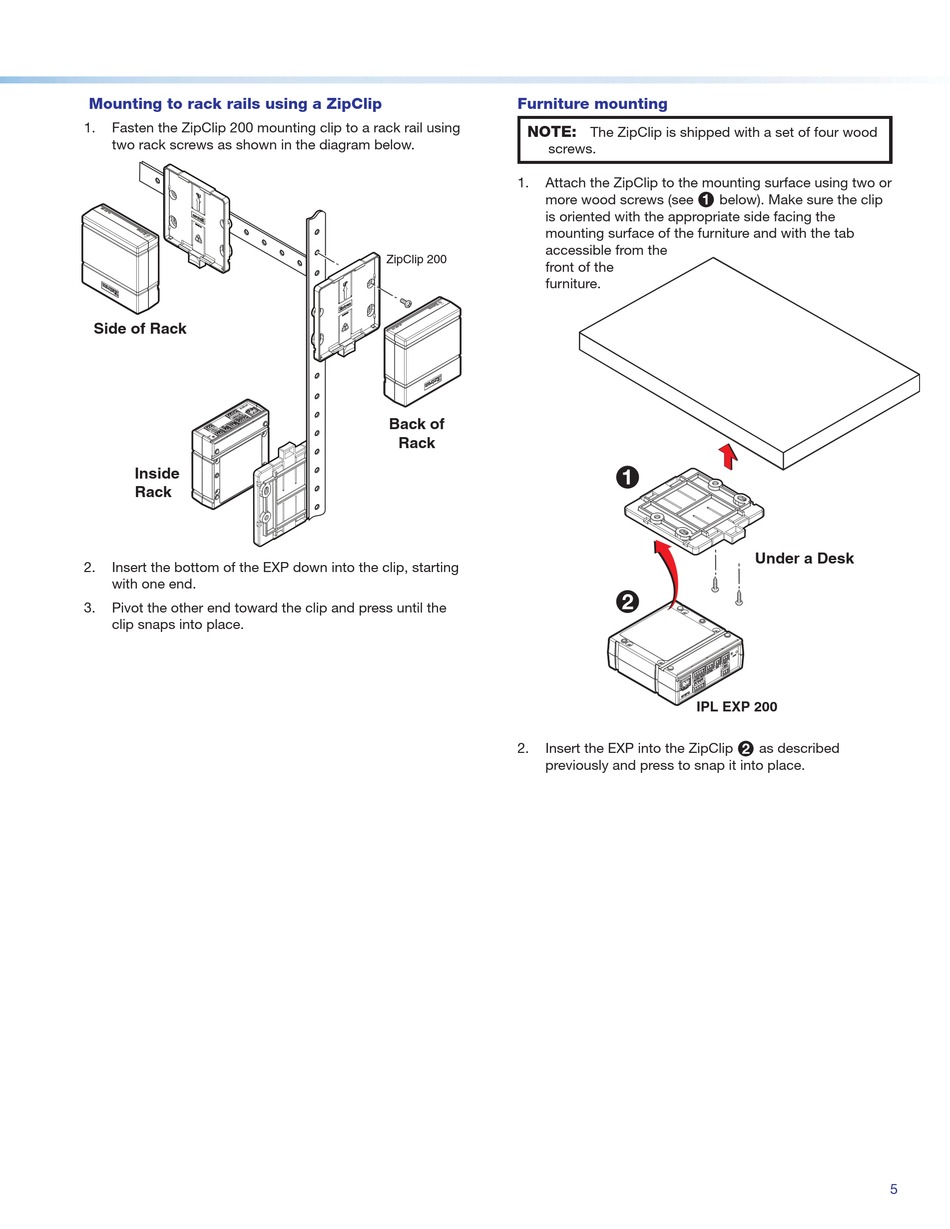

Mounting to rack rails using a ZipClip

Fasten the ZipClip 200 mounting clip to a rack rail using

two rack screws as shown in the diagram below.

Side of Rack

Inside

Rack

Insert the bottom of the EXP down into the clip, starting

with one end.

Pivot the other end toward the clip and press until the

clip snaps into place.

Furniture mounting

NOTE:

screws.

Attach the ZipClip to the mounting surface using two or

more wood screws (see

is oriented with the appropriate side facing the

mounting surface of the furniture and with the tab

accessible from the

ZipClip 200

front of the

furniture.

Back of

Rack

Insert the EXP into the ZipClip

previously and press to snap it into place.

The ZipClip is shipped with a set of four wood

below). Make sure the clip

Under a Desk

IPL EXP 200

as described
