Extron electronics IPL EXP I/O Series Setup Manual page 11

NOTES:
•
The IPL EXP RIO8 provides a maximum output of 19 watts, combined, for all the DC output ports together.
•
The IPL EXP RIO8 requires a PoE+ source that provides at least 48 watts (see
more detailed information on power input requirements in the IPL EXP I/O Series User Guide).
•
See the Global Configurator Help File for details on the Limit and Over conditions.
Control — eBUS
Rear Panel,
IPL EXP 200
1 2 3 4 G
DIGITAL I/O
eBUS (PWR 3W)
+V +S -S G
Connect the rst eBUS device to this port, then connect other
eBUS devices and accessories to that device in the desired
topology (daisy chain, star, or combination).
• Wire the connectors the same at both ends for every eBUS
device.
• See the eBUS Technology Reference Guide for the
recommended distance from the expansion interface or
control processor to the last eBUS device and maximum
quantity of devices per control processor.
• The IPL EXP can provide power to the button panel devices.
Drain Wires
+V +12 VDC
+S + Signal
-S - Signal
G Ground
EBDB MINI
Rear Panel
(or use
an EBDB
10-port hub)
ATTENTION:
• Do NOT connect the power pin
to any device that is already
powered by the IPL EXP or an
IPCP control processor or by
an additional power supply.
• NE connectez PAS la broche
d'alimentation à un appareil
déjà alimenté par le IPL EXP
ou le processeur de contrôle
IPCP ou par une autre source
d'alimentation.
eBUS Accessory Port
eBUS port
DISPLAY
on an
ON OFF
eBUS device
VOLUME
(button
panel or
PC
similar
VIDEO
device)
eBUS DISTRIBUTION HUB
• Connect up to four (4) eBUS devices to the
+ V + S - S G + V + S - S G + V + S - S G
• Wire the connectors the same at both ends.
X
+S -S G +V +S -S G +V +S -S G
+V
+S
-S
IPL EXP
Rear Panel
Powered
+S -S G
eBUS
device(s)
Tie drain wires to ground.
Power Input
eBUS Port Monitoring
Use this port to connect button panels for intuitive control of the
system once the panels are con gured. The port is always on,
unless the total load reaches the overload condition.
Global Con gurator software provides a way to monitor these ports.
• Normal operation mode —The load drawn by connected
devices is below the maximum power threshold.
• Limit mode —The total load at this port has reached the
maximum threshold power.
• Overload mode — The load exceeds maximum threshold
power usage and enters the fault state. The eBUS port shuts off.
Power and eBUS communication will be restored after power
draw from the connected devices falls back below the threshold.
LAPTOP
VOLUME
DOC CAM
PC
DVD
MUTE
VIDEO

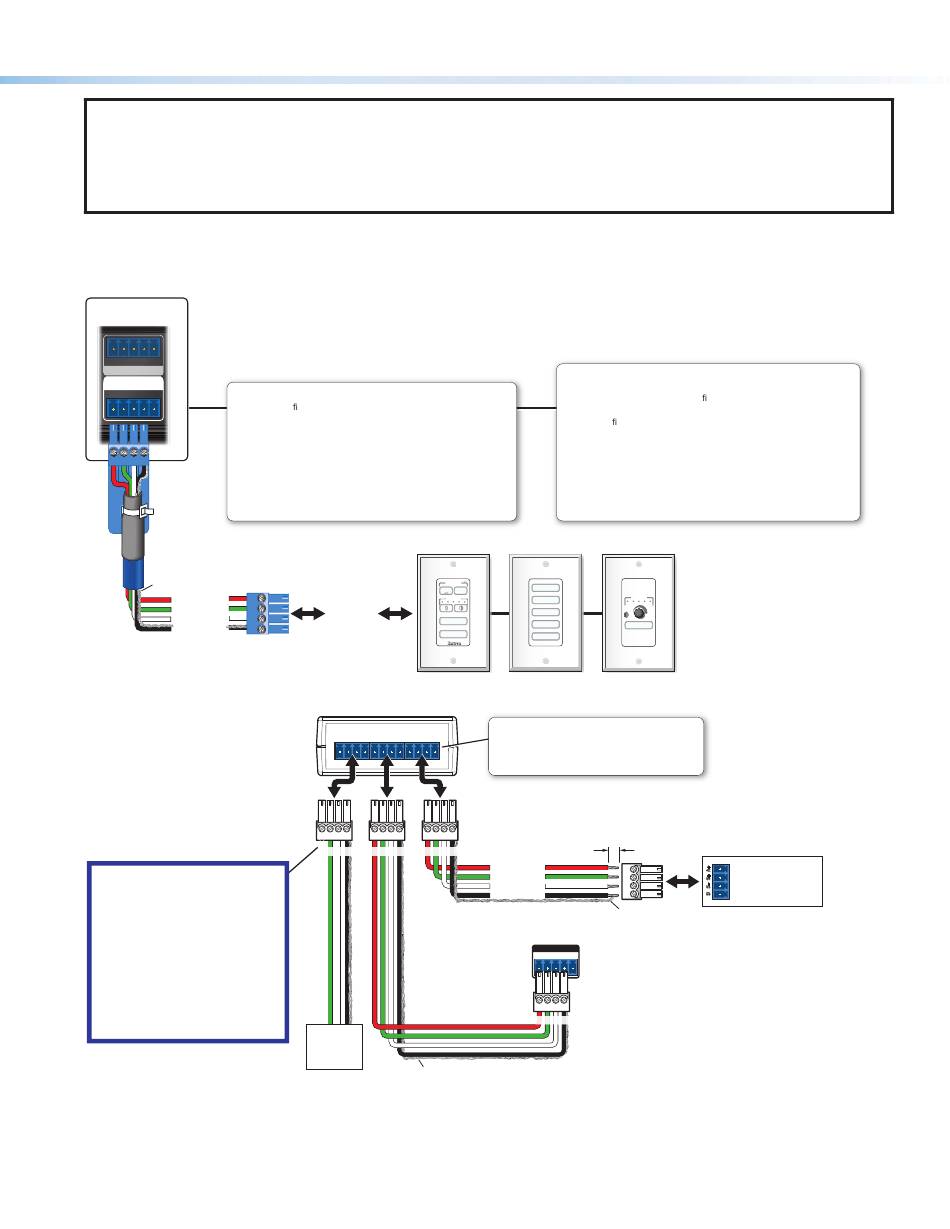

eBUS Connections
eBUS distribution hub (EBDB MINI).
3/16" (5 mm) Max.
+12 VDC
+ Signal
- Signal
G
Ground
Tie drain wires to ground.
eBUS (PWR 3W)
+V +S -S G
+V +S -S G
on page 7 and see the
eBUS port on an
EBP or other
eBUS device
11
