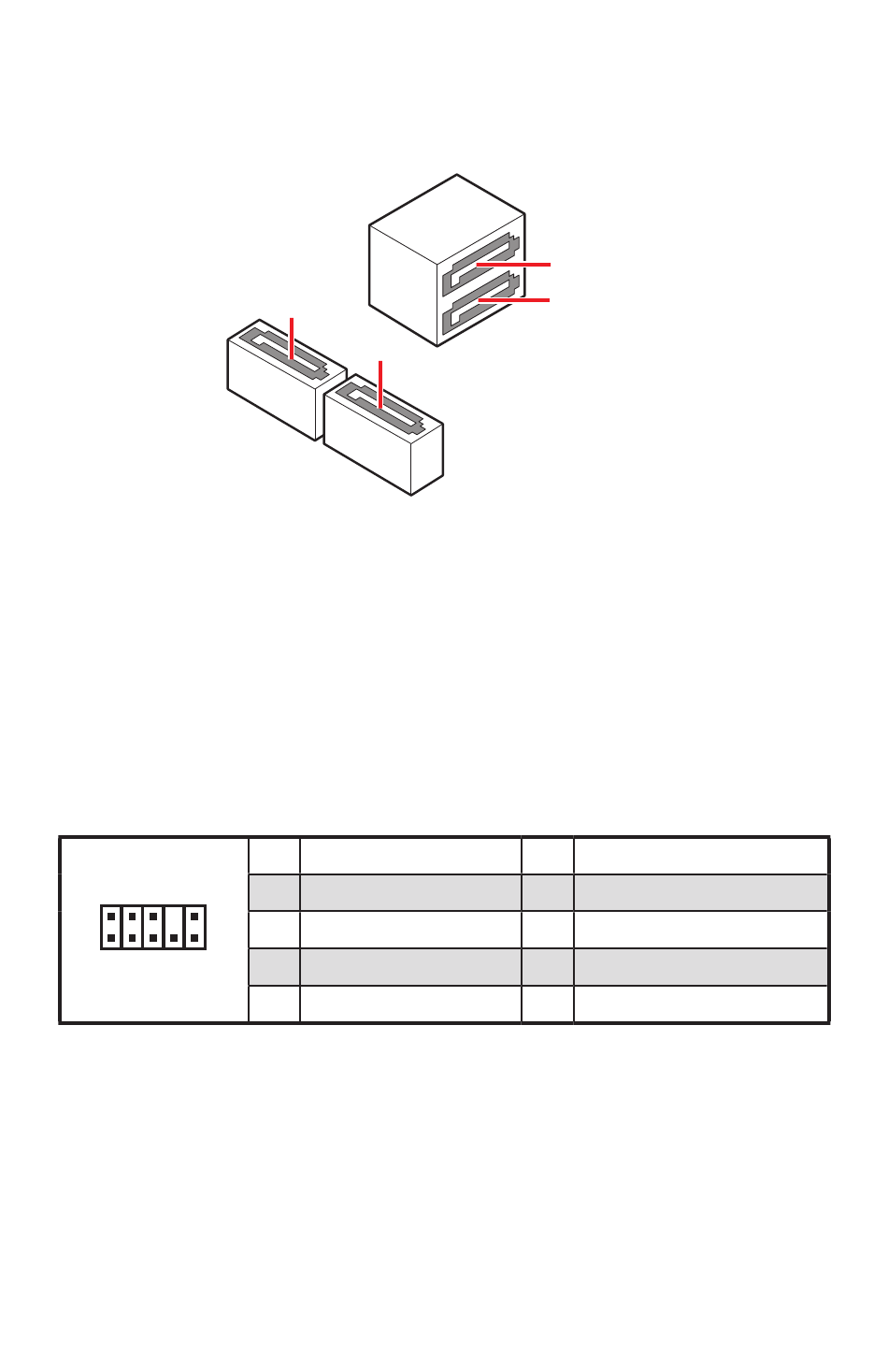

SATA1~4: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
⚠
Important
∙ Please do not fold the SATA cable at a 90-degree angle. Data loss may result
during transmission otherwise.
SATA cables have identical plugs on either sides of the cable. However, it is
∙
recommended that the flat connector be connected to the motherboard for space
saving purposes.
SATA1 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
∙

JAUD1: Front Audio Connector

This connector allows you to connect audio jacks on the front panel.
2
1
12
Overview of Components
SATA2
1
10 3
5 Head Phone R
9
7
9 Head Phone L
SATA1
MIC L
MIC R
SENSE SEND
SATA4
SATA3
2 Ground
4 NC
6 MIC Detection
8 No Pin
10 Head Phone Detection
