10. For the liquefied petroleum gas (LPG) users, use the qualified gas pressure regulating valves and
hoses to ensure the water heater a proper operation and security use. For pipeline gas users, ask
the gas company or the relevant management authority to connect the gas pipe.
11. After the water heater is installed with a smoke exhaust pipe, during the use, do not turn on any
mechanical ventilation equipment such as the smoke exhaust ventilator and the exhaust fan in the
room where the water heater is installed or to which the water heater is connected.

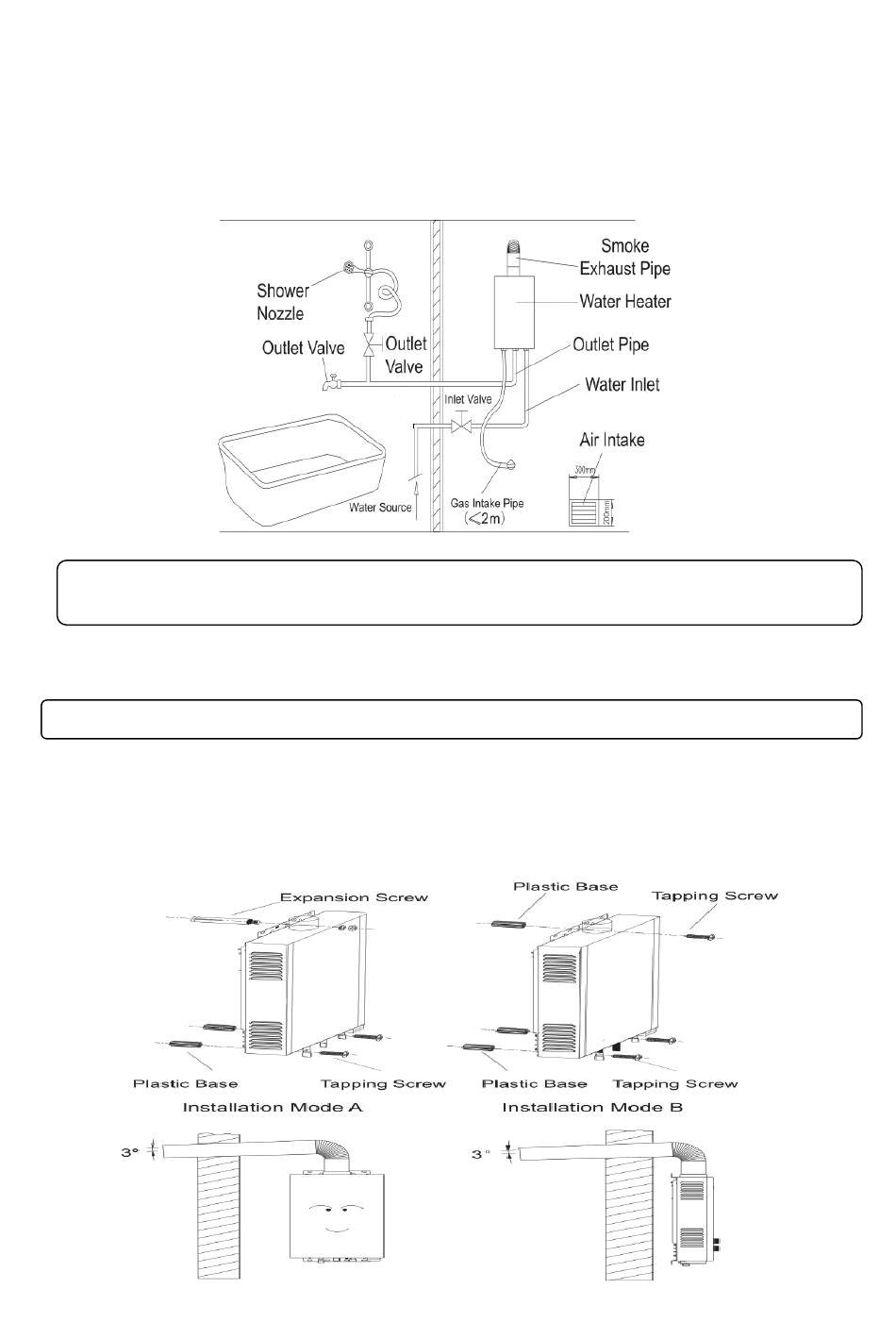

Note: The connectors of the water heater in the picture shown above would be in different order
for different water heater model. Make the real object as standard during the connection.
Installation Modes
Warning! It is strongly forbidden to use this water heater with no smoke exhaust pipe installed.
1. Keep the water heater vertical and not tilt during the installation. As shown in the below picture,
drill the holes vertically on the wall for the installation. Insert the expansion screws into the holes
on the top for the installation and insert plastic plugs into the installation hole at the bottom. After
installing (mounting) the water heater, install gaskets and nuts into the expansion screws and
screw up the nuts. Screw on the tapping screw at the bottom. User can choose A or B installation
mode according to the situation.
