cPCI-R6000,cPCI-R6100, cPCI-R6200
Manual Rev.
Revision Date:
Part No:
Revision
1.00
1.01
1.02
1.03
1.04
6U Compact PCI® Rear Transition Modules
User's Manual
1.04
July 23, 2009
50-15066-1000(EA)
Revision History
Release Date
June 3, 2009
June 22,2009
Jun 25, 2009
July 13, 2009
Description of Change(s)
PM draft (Chapters 3, 6 & 8
are not ready)
Jack's revisions
PM's revisions
PM's revisions
1. Remove LVDS feature
2. Update CN10 pin definition
3. Add J4 pin assignment
4. Update cPCI-R6000D
1 of 40
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ADLINK Technology cPCI-6880 Series

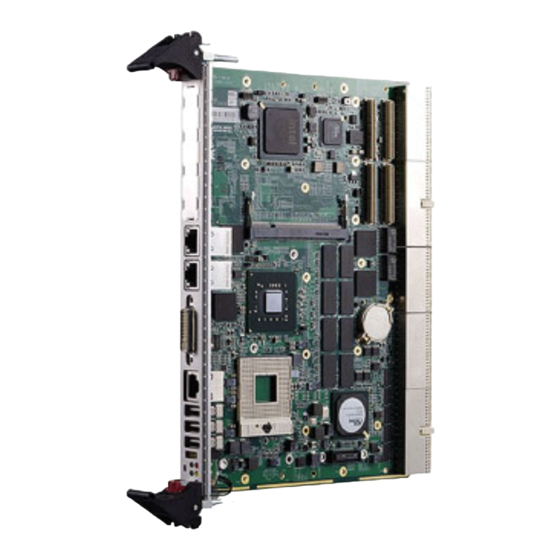

Summary of Contents for ADLINK Technology cPCI-6880 Series
- Page 1 cPCI-R6000,cPCI-R6100, cPCI-R6200 6U Compact PCI® Rear Transition Modules User’s Manual Manual Rev. 1.04 Revision Date: July 23, 2009 Part No: 50-15066-1000(EA) Revision History Revision Release Date Description of Change(s) 1.00 PM draft (Chapters 3, 6 & 8 are not ready) 1.01 June 3, 2009 Jack's revisions...
- Page 2 drawing 5. Update HDD& CF installation on cPCI-R6000D 1.05 July 28, 2009 Add T3100 processor support 2 of 40...
-
Page 3: Environmental Responsibility
Preface Copyright 2009 ADLINK TECHNOLOGY INC. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. - Page 4 Table of Contents Overview..........................5 Introduction ......................5 4 of 40...
- Page 5 SCSI RAID 1 support via the Rear Transition Module (RTM). For flexibility of use, the cPCI-6880 Series can be installed in a standard CompactPCI system slot as system master, or peripheral slot as PCI device. The cPCI-6880 Series is ideally suited...
- Page 6 Appendix Rear Transition Modules There are some Rear Transition Modules available to mate with the cPCI-6510 to get extensive I/O interfaces. cPCI-R6000-NF cPCI-R6000-NF Specification Mechanical Standard 6U CompactPCI® rear I/O Board size: 233.35mm x 80mm Single slot (4HP, 20.32mm) ...
- Page 7 cPCI-R6000-NF Block Diagram PCI-X PCI-E x4 ® SCSI 64bit/133MHz PEX8114 TMDS DVI-I SATA 7 pin SATA 7 pin USB x2 GbE x2 (PICMG 2.16) RS232 (Tx, Rx) 10 pin USB9 5 pin cPCI-R6000 Package Contents The cPCI-R6000 is packaged with the following components. If any of the items on the contents list are missing or damaged, retain the shipping carton and packing material and contact the dealer for inspection.
- Page 8 2.5” HDD bracket Y-cable for PS/2 combo port DVI to VGA (DB-15) adapter Ultra-320 SCSI cable Optional orderable Adapter kit: The DB-CF-SA kit □ DB-6920CF adapter board □ Screw pack □ CF card guide Note: The contents of non-standard cPCI-R6200 Series configurations may vary depending on the customer’s requests.
- Page 9 cPCI-R6000-NF Board Layout No Population CN10 CN1 No Population CN12 CNY1 CN20/21 CN16/15 PCI-E to PCI bridge CN12 External SCSI connector LSI53C1020 SCSI CN15/16 USB ports controller USB pin header (5-pin) CN20/21 GbE ports CN1/2 SATA port (7-pin) CNY1 DVI-I Connector Internal SCSI connector rJ3/5 CompactPCI...
- Page 10 USB Connectors (CN15, CN16) Onboard USB Connector (JP1) USB_N USB_P CH_GND...
- Page 11 RJ-45 Gigabit Ethernet Connectors (CN20, CN21) Speed Activity Pin# GbE1 Signal Function LANB_TX0P Media Dependent Interface 1+ LANB_TX0N Media Dependent Interface 1- LANB_TX1P Media Dependent Interface 2+ LANB_TX1N Media Dependent Interface 2- LANB_TX2P Media Dependent Interface 3+ LANB_TX2N Media Dependent Interface 3- LANB_TX3P Media Dependent Interface 4+ LANB_TX3N...
- Page 12 DB-9 Serial Port (CN9) Pin # RS-232 DCD, Data carrier detect RXD, Receive data TXD, Transmit data DTR, Data terminal ready IsoGND, Isolated ground DSR, Data set ready RTS, Request to send CTS, Clear to send RI, Ring indicator Onboard Serial Port Connector (CN10) Pin # RS-232 Not used...
- Page 13 TMDS Data2+ TMDS Data0- TMDS Data2/4 Shield TMDSData0+ TMDS Data4- TMDS Data0/5 Shield TMDS Data4+ TMDS Data5- DDC Clock [SCL] TMDS Data5+ DDC Data [SDA] TMDS Clock Shield Analog vertical sync TMDS Clock + TMDS Data1- TMDS Clock - TMDS Data1+ Analog Red TMDS Data1/3 Shield Analog Green...
- Page 14 68-pin Vertical SCSI Connector (CN12)
- Page 15 Signal Name Pin # Pin # Signal Name SCSI-SDP12 SCSI-SDN12 SCSI-SDP13 SCSI-SDN13 SCSI-SDP14 SCSI-SDN14 SCSI-SDP15 SCSI-SDN15 SCSI-SDP1-P1 SCSI-SDP1-N1 SCSI-SDP0 SCSI-SDN0 SCSI-SDP1 SCSI-SDN1 SCSI-SDP2 SCSI-SDN2 SCSI-SDP3 SCSI-SDN3 SCSI-SDP4 SCSI-SDN4 SCSI-SDP5 SCSI-SDN5 SCSI-SDP6 SCSI-SDN6 SCSI-SDP7 SCSI-SDN7 SCSI-SDP0-P0 SCSI-SDP0-N0 DIFFSEN P3V3_SCSI P3V3_SCSI P3V3_SCSI P3V3_SCSI SCSI-SATN-P SCSI-SATN-N...
- Page 16 cPCI-R6000-NF Switches and Jumper Settings PICMG 2.16 Switches (SW1 ,SW2, SW3, SW4) All switches are set to ON by default SW1-R SW2-R SW3-R SW4-R The cPCI-R6000-NF RTM supports GbE3 and GbE4 on either the 2.16 backplane or via Rear I/O. The GbE3 and GbE4 signals cannot be accessed simultaneously by both the PICMG®...
- Page 17 cPCI-R6100, cPCI-R6110 The cPCI-R6100 and cPCI-R6110 have the same electrical design but different features by BOM option. Refer to below specification for detail. cPCI-R6100, cPCI-R6110 Specification Mechanical Standard 6U CompactPCI® rear I/O Board size: 233.35mm x 80mm Single slot (4HP, 20.32mm) ...
- Page 18 One Intel 82576EB Gigabit Ethernet Controller on RTM for additional two Gigabit Ethernet ports (GbE 5 & 6) Miscellaneous Optional Gold Cap for time keeping in case there is no Battery in SBC. (depopulation by default)
- Page 19 cPCI-R6100 Block Diagram GbE 5 Intel PCI-E x4 82576EB GbE 6 TMDS SATA 7 pin Gold Cap SATA 7 pin USB x4 GbE 3/4 (PICMG 2.16) PS/ 2 KB/MS USB9 GL826 SATA 2.5” HDD...
- Page 20 cPCI-R6100/cPCI-R6110 Package Contents The cPCI-R6100 is packaged with the following components. If any of the items on the contents list are missing or damaged, retain the shipping carton and packing material and contact the dealer for inspection. Please obtain authorization before returning any product to ADLINK.
- Page 21 cPCI-R6100 Board Layout CN8 CN10 CON1 CN11 SW1/3/4/2 CN12 CN16 CN15 CN2/1/4/3 CN5 CN21 Intel 82576EB GbE RJ-45 COM port controller USB 2.0 Flash Card Reader CN11 Power connector for Controller SATA CON1 SD card holder CN12 CompactFlash socket Gold Capacity (no CN16 GbE ports from 82576EB population by default)
- Page 22 CN10 CON1 CN11 CN12 CN16 CN2/1/4/3 CN5 Intel 82576EB GbE DB-6920SAT connector controller USB 2.0 Flash Card Reader DB-15 VGA connector Controller CON1 SD card holder CN8/10 SATA ports (7-pin) Gold Capacity (no CN11 Power connector for population by default) SATA PS/2 port CN12...
- Page 23 cPCI-R6100 Connector Pin Assignment USB Connectors (CN15, CN16) RJ-45 Gigabit Ethernet Connectors (CN15, CN16) Activity Speed Pin# GbE1 Signal Function LANB_TX0P Media Dependent Interface 1+ LANB_TX0N Media Dependent Interface 1- LANB_TX1P Media Dependent Interface 2+ LANB_TX1N Media Dependent Interface 2- LANB_TX2P Media Dependent Interface 3+ LANB_TX2N...
- Page 24 (1000 Base) Active Green Blinking RJ-45 COM Port (CN9) Pin # COM Signal Name DCD# RTS# DSR# CTS# DTR# DVI-D Connector (CN21) Pin # Signal Pin # Signal TMDS Data2- TMDS Data3+ TMDS Data2+ +5 V Power TMDS Data2/4 Shield TMDS Data4- Hot Plug Detect TMDS Data4+...
- Page 25 TMDS Data1+ TMDS Clock Shield TMDS Data1/3 Shield TMDS Clock + TMDS Data3- TMDS Clock - 7-pin Serial ATA Connector (CN8, CN10) Pin# Signal DB-9 VGA Connector (CN7)
- Page 26 To DB-6920SAT/DB-6920CF Connector (CN6)
- Page 27 Signal Name Pin # Pin # Signal Name P3V3 P3V3 P3V3 P3V3 P1V8 P1V8 P1V8 SATA-TXN0 SATA-TXP0 SATA-RXN0 SATA-RXP0 RESET#...
- Page 28 cPCI-R6100 Switches and Jumper Settings PICMG 2.16 Switches (SW1 ,SW2, SW3, SW4) All switches are set to ON by default The cPCI-R6100 RTM supports GbE3 and GbE4 on either the 2.16 backplane or via Rear I/O. The GbE3 and GbE4 signals cannot be accessed simultaneously by both the PICMG®...
- Page 29 Dual slot (8HP, 40.64mm) CompactPCI® connectors rJ3 and rJ5 Faceplate I/O 5x USB2.0 ports 2x 10/100/1000BAST-T Ethernet ports DVI-I port DB-9 COM port PS/2 Keyboard Mouse port Mic-in, Line-out ports SFF-8088 SAS port Onboard ...
- Page 30 cPCI-R6200 Block Diagram Rear Panel PCI-E x4 eSAS#0 SAS1068E iSAS#4 to ‐#3 iSAS#7 iSAS conn SATA Molex iPass SFF8087 7 pin TMDS + RGB DVI‐I SATA 7 pin DB‐9 GbE 3/4 (PICMG 2.16) RJ‐45 RJ‐45 USB x3 USB USB 5 pin USB SATA, USBx2, KB/MS, Audio DB-R6000L2 conn.
- Page 31 cPCI-R6200 Package Contents The cPCI-R6200 is packaged with the following components. If any of the items on the contents list are missing or damaged, retain the shipping carton and packing material and contact the dealer for inspection. Please obtain authorization before returning any product to ADLINK.
- Page 32 cPCI-R6200 Board Layout SATA CN10 iSAS CN11 PH1 PH2 CN19 CN18 CN8 CN1 eSAS CNY1 iSAS SFF-8087 SAS port DB-9 COM port eSAS SFF-8088 SAS port Serial 10 pin header (Tx,Rx only) CN9/10 7-pin SATA ports 5-pin USB header CN7/8 RJ-45 GbE ports Mic-in Port CN11...
- Page 33 cPCI-R6200 Connector Pin Assignment USB Connectors (CN1, CN2, CN3, CN18, CN19) Onboard USB Connector (JP1) USB_N USB_P CH_GND RJ-45 Gigabit Ethernet Connectors (CN7, CN8) Speed Activity Pin# GbE1 Signal Function LANB_TX0P Media Dependent Interface 1+ LANB_TX0N Media Dependent Interface 1- LANB_TX1P Media Dependent Interface 2+ LANB_TX1N...
- Page 34 LANB_TX2P Media Dependent Interface 3+ LANB_TX2N Media Dependent Interface 3- LANB_TX3P Media Dependent Interface 4+ LANB_TX3N Media Dependent Interface 4- Ethernet Status Speed Activity (Green/ Amber) (Amber) Network link is not established or system power off 10 Mbps Link (10 Base) Active Blinking 100 Mbps...
- Page 35 Pin # RS-232 Not used Not used RXD, Receive data Not used TXD, Transmit data Not used Not used Not used IsoGND, Isolated ground Not used DVI-I Connector (CNY1) Pin # Signal Pin # Signal TMDS Data2- Hot Plug Detect TMDS Data2+ TMDS Data0- TMDS Data2/4 Shield...
- Page 36 7-pin Serial ATA Connector (CN9, CN10) Pin# Signal Serial attached SCSI Connectors (MINISASA2) Pin # Signal Pin # Signal SAS4_TX-P SAS4_RX-P SAS4_TX-N SAS4_RX-N SAS5_TX-P SAS5_RX-P SAS5_TX-N SAS5_RX-N SAS6_TX-P SAS6_RX-P SAS6_TX-N SAS6_RX-N SAS7_TX-P SAS7_RX-P...
- Page 37 SAS7_TX-N SAS7_RX-N Serial attached SCSI Connectors (ISAS1) Pin # Signal Pin # Signal SAS0_TX-P SAS0_RX-P SAS0_TX-N SAS0_RX-N SAS1_TX-P SAS1_RX-P SAS1_TX-N SAS1_RX-N SAS2_TX-P SAS2_RX-P SAS2_TX-N SAS2_RX-N SAS3_TX-P SAS3_RX-P SAS3_TX-N SAS3_RX-N To DB-6920SAT/DB-6920CF Connector (CN6)
- Page 38 Signal Name Pin # Pin # Signal Name P3V3 P3V3 P3V3 P3V3 P1V8 P1V8 P1V8 SATA-TXN0 SATA-TXP0 SATA-RXN0 SATA-RXP0 RESET#...
- Page 39 To DB-R6000L2 Connector (CN6) Signal Name Pin # Pin # Signal Name SATA-T1P USB-P3 SATA-T1N USB-N3 SATA-R1P USB-OC3# SATA-R1N USB-P2 HAD_RST-L USB-N2 HAD_SYNC HAD_SDOUT USB-OC2# HAD_BIT_CLK HAD_SDIN0 PS2-KBC PS2-KBD HAD_SDIN1 PS2-MSD HAD_SDIN2 PS2-MSC HAD_SDIN3 RESET# P1V8 P1V8 P1V8...
- Page 40 cPCI-R6200 Switches and Jumper Settings PICMG 2.16 Switches (SW1 ,SW2, SW3, SW4) All switches are set to ON by default The cPCI-R6200 RTM supports GbE3 and GbE4 on either the 2.16 backplane or via Rear I/O. The GbE3 and GbE4 signals cannot be accessed simultaneously by both the PICMG®...
